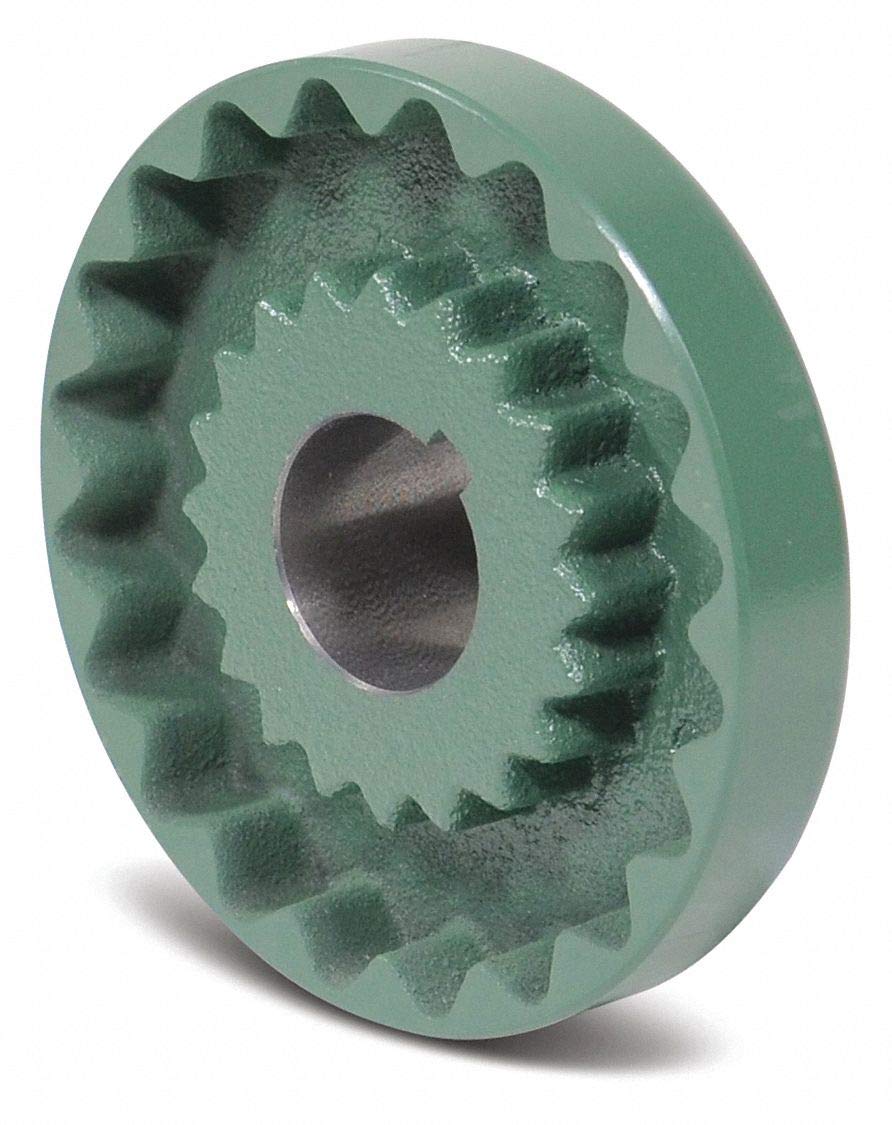

TB Woods 6J-7/8 Sure-Flex Sleeve Coupling Flange 7/8 Inch Bore

Product Description

The TB Woods 6J-7/8 Sure-Flex Sleeve Coupling Flange is designed for reliable performance in various industrial applications. Made from durable cast iron, this coupling flange is built to last.

• Designed for motors, pumps, compressors, blowers, mixers, and conveyors
• Handles up to 6000 RPM
• Bore diameter of 7/8 inch

Product Highlights

This sleeve coupling flange offers a secure and reliable connection, preventing leaks or failures. Its precision design ensures a tight fit, ideal for demanding industrial environments.

Product Information

Standard Information

• Brand: TB Woods
• Item Number: 6J-7/8
• Bore Diameter: 7/8 inch

Technical Specifications

• Coupling Size: 6
• Maximum RPM: 6000
• Maximum Torque: 585 in-lb
• Material of Construction: Cast Iron
• Keyway Size: 3/16 inch x 3/32 inch
• Setscrew Location: One over the key and one at 90 degrees
• Hub Diameter: 4 inches
• Outside Diameter: 4 inches
• Height: 4 inches
• Width: 1.31 inches
• Length through Bore: 1.31 inches
• Max Angular Misalignment: 1 degree for EPDM/Neoprene sleeves
• Item: Sleeve Coupling Flange
• Country of Origin: Multiple
