TB WOODS 6J-11/8
TB WOODS 6J-11/8

Tb Woods 6J-11/8 Sure-Flex Sleeve Coupling Flange, Bore 1-1/8

TB WOODS
Brand: TB WOODS
SKU: 6J-11/8
Availability: In Stock

Ships same day if ordered by 12 pm

Same-day delivery
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$66.22
$66.22
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

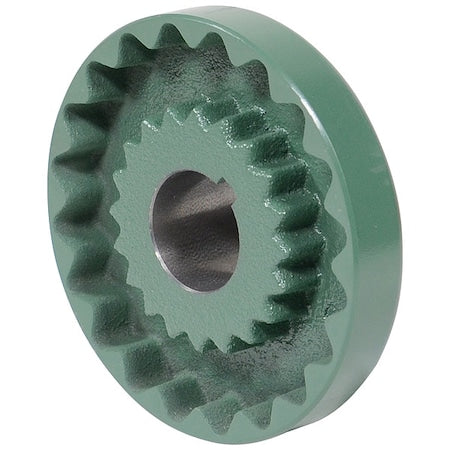

The Tb Woods 6J-11/8 is a sleeve coupling flange designed for reliable performance in various applications. It features a bore size of one and one-eighth inches and is suitable for use in motors, pumps, compressors, and conveyors.

  • Bore diameter of one and one-eighth inches
  • Maximum speed rating of six thousand RPM
  • Constructed from durable cast iron material

Product Highlights

This coupling flange is engineered to provide a secure connection while absorbing shock and misalignment.

Product Information

Standard Information

  • Item Type: Sleeve Coupling Flange
  • Manufacturer: Tb Woods

Technical Specifications

  • Coupling Size: 6
  • Bore Diameter: 1 1/8 in
  • Maximum Speed: 6,000 RPM
  • Maximum Torque: 585 in-lb
  • Outside Diameter: 4 in
  • Hub Diameter: 2 1/2 in
  • Hub Material: Cast Iron
  • Keyway Size Type: 1/4 in x 1/8 in
  • Bore Tolerance: +0.0005 in / +0.0015 in
