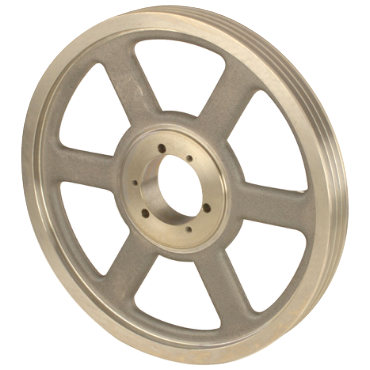

TB Woods 5V1403 Narrow Sheave, 5V Belt Section, 14 O.D. in., 3 Grooves, Cast Iron Material

Product Description

The TB Woods 5V1403 is a narrow sheave designed for 5V belt sections. It features an outside diameter of fourteen inches and has three grooves for effective belt engagement.

• Constructed from high tensile cast iron for durability.
• Designed for maximum performance and extended lifespan.
• Compatible with QD-type bushing for versatile applications.

Product Highlights

This sheave is ideal for applications requiring efficient power transmission with minimal slippage. It can be used in various mechanical power transmission setups, enhancing efficiency and performance.

Product Information

Standard Information

• Brand: TB Woods
• MPN: 5V1403
• Product SKU: 00706828
• Min Order Qty: 1

Technical Specifications

• Overall Width: 2-3/8 in
• Face Width: 2.3750 in
• Outside Diameter: 14.0000 in
• Pitch Diameter: 13.9 in
• Number Of Grooves: 3
• Bushing Series: E
• Bushing Bore Range: 7/8 to 3-1/2 in
• Length Through Bore: 2.6250 in
