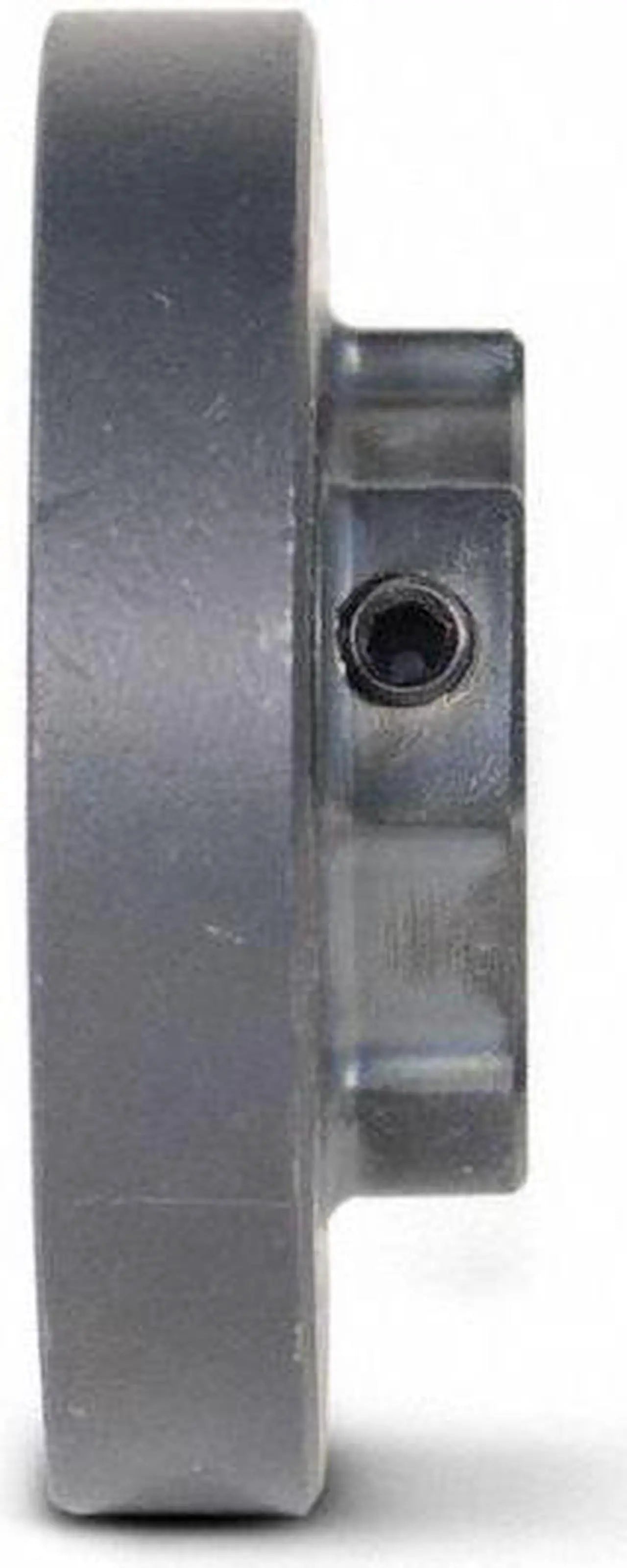

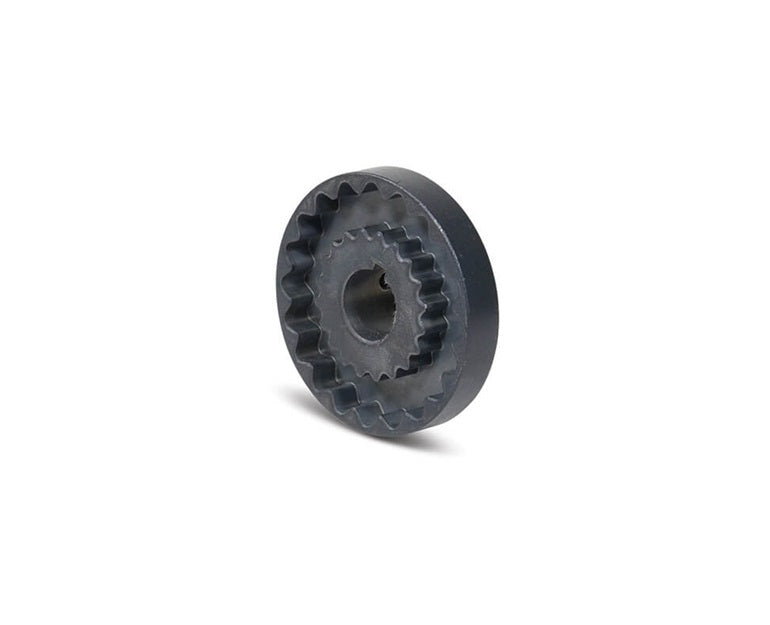

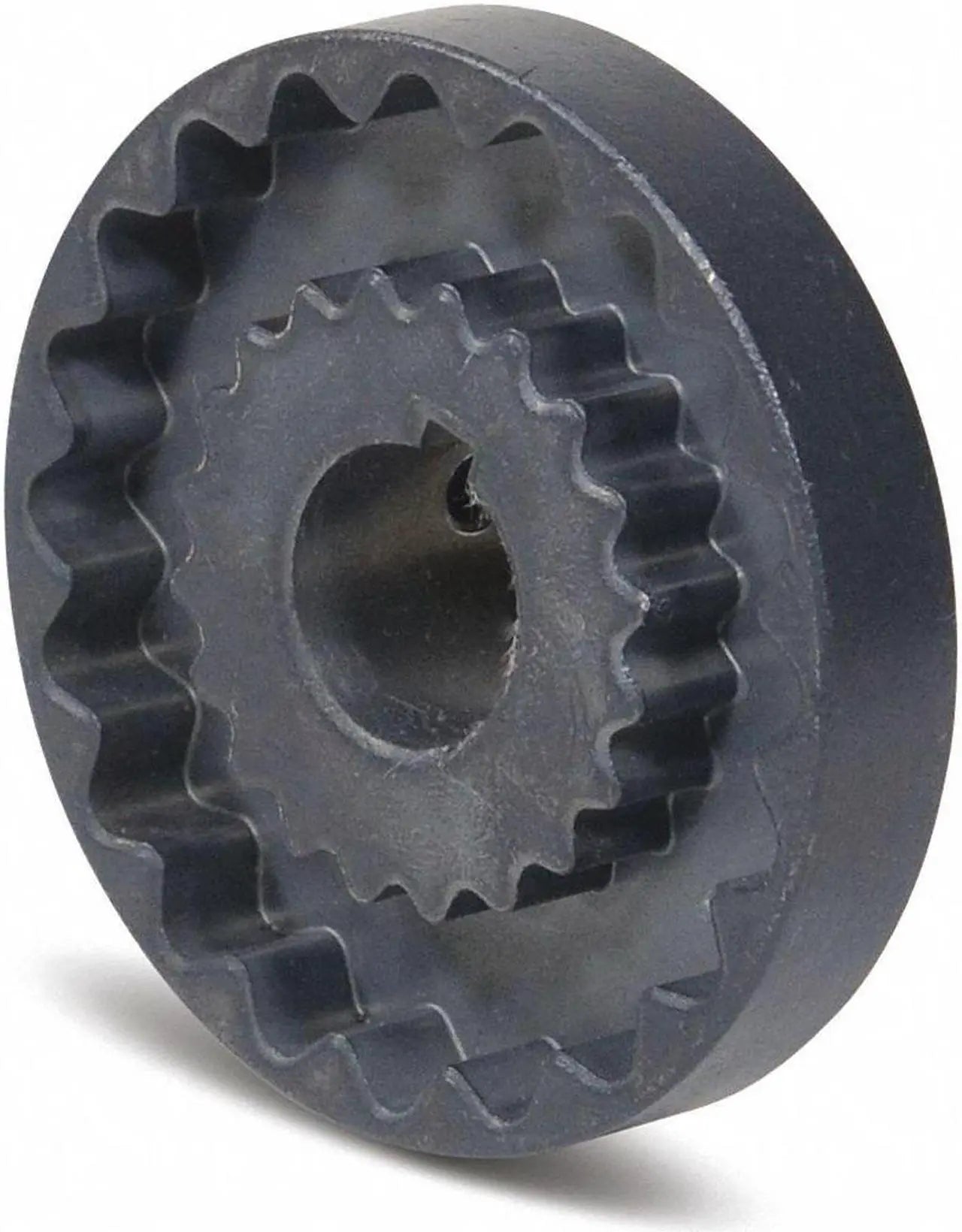

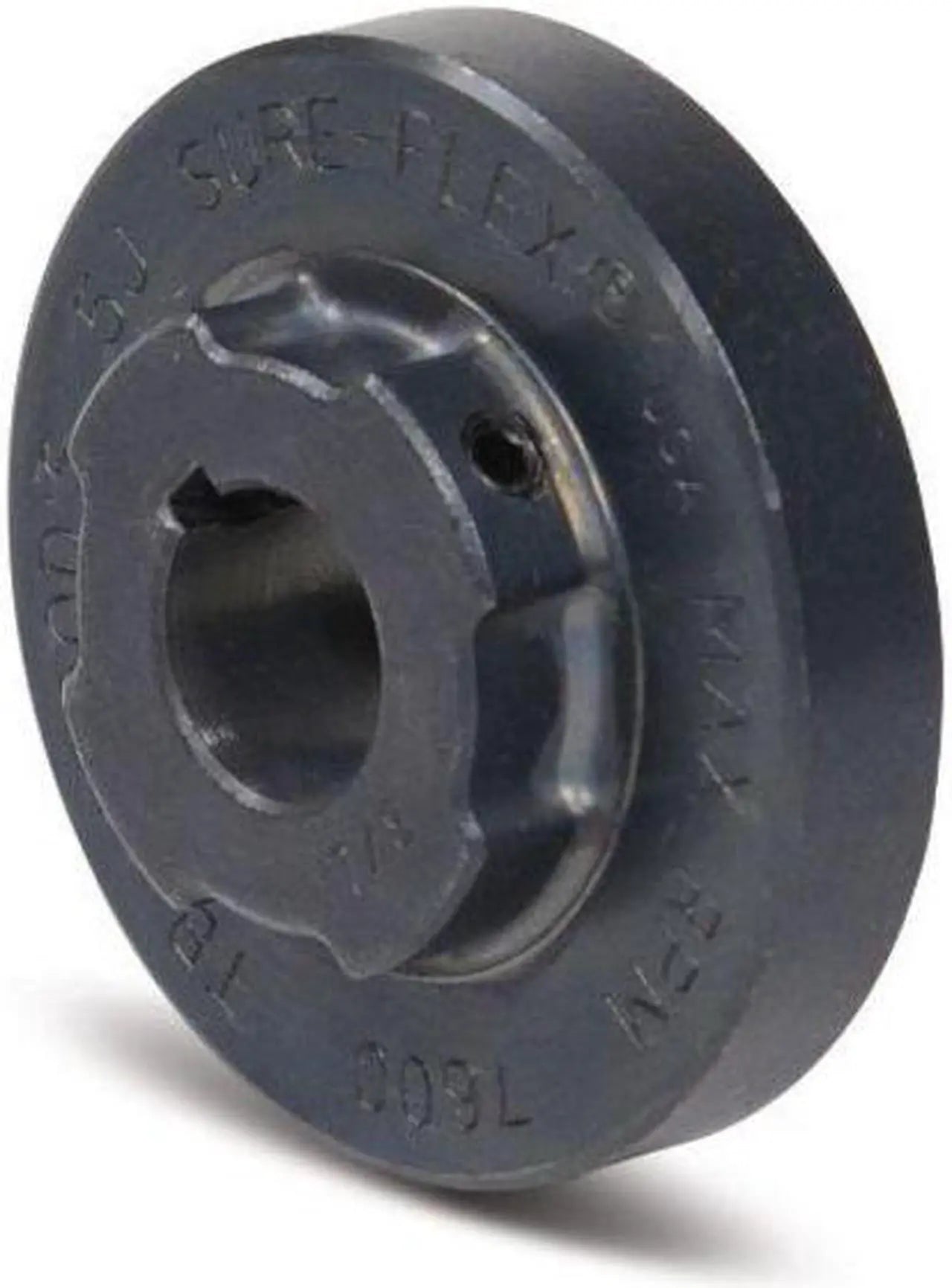

Tb Woods 5J118 Sure-Flex Sleeve Coupling Flange 5J Bore 1-1/8 inches

Product Description

The TB WOODS 5J118 Sure-Flex Sleeve Coupling Flange is a carbon steel flange designed for robust industrial applications. This coupling flange features a 1-1/8 inch round keyed bore with a tolerance of +0.0005 in / +0.0015 in, and an outside diameter of 3 1/4 inches. It is suitable for use in compressors, conveyors, motors, and pumps, offering a maximum speed of 7,600 RPM and a maximum torque of 312 in-lb. The flange hub design ensures secure connections in various systems.

• Coupling Size 5 with a 1-1/8 inch round keyed bore.
• Maximum speed of 7,600 RPM and maximum torque of 312 in-lb.
• Constructed from carbon steel, suitable for compressors, conveyors, motors, and pumps.

Product Highlights

Features a 4-way flexing action that absorbs shock, misalignment, end float, and vibration.

Product Information

Standard Information

• Brand: TB WOODS
• Manufacturer Part Number: TB-5J118
• Country of Origin: US

Technical Specifications

• Application: Compressors, Conveyors, Motors, Pumps
• Bore Diameter: 1 1/8 in
• Bore Tolerance: + 0.0005 in / + 0.0015 in
• Bore Type: Round Keyed
• Bushing Required: None
• Body Style: Type J Flange Close Coupled
• Coupling Size: 5
• Flange Length: 0.594"
• For Misalignment Type: Angular, Parallel
• For Shaft Type: Keyed
• Hp @ 100 Speed: 1/2 hp
• Hub Body Length: 29/64 in
• Hub Diameter: 1 7/8 in
• Hub Flange Type Code: J
• Hub Length: 0.453"
• Hub Material: Carbon Steel
• Hub Type: Flange Hub
• Included Screws: (2) Set Screws
• Keyseat Size: 1/4" x 1/8"
• Keyway Depth: 1/8"
• Keyway Width: 1/4"
• Length Through Bore: 1 3/64 in
• Material: Sintered Carbon Steel
• Max Angular Gap Misalignment: 0.056"
• Max Angular Misalignment: 1
• Max Parallel Misalignment: 0.015"
• Maximum Speed: 7,600 RPM
• Maximum Torque: 312 in-lb
• Outside Diameter: 3 1/4 in
• Resistance Properties: Chemical Resistant, Oil Resistant
• Screw Thread Size: 5/16"-18
• Set Screw Distance: 1/4"
• Set Screw Length: 1/4"
• Set Screw Location: One Over Keyseat And At 90, One Over Ks And @ 90
• Set Screw Thread Type: Coarse
• Setscrew Torque Requirement: 7 lbs.-in.
• System of Measurement: Inch
