TB Woods 5J-7/8 5J Flange 7/8 Inch Bore Sleeve Coupling

Product Description

The TB Woods 5J-7/8 Sleeve Coupling Flange is engineered for securing and aligning shafts in industrial applications. This durable flange is made from high-grade carbon steel ensuring robust performance and longevity. It facilitates a 7/8 inch bore to accommodate corresponding shaft sizes efficiently.

• Max Speed: 7,600 RPM, ensuring efficient operation for high-speed applications.
• Max Torque: 312 in-lb, suitable for heavy-duty operations.
• Rounded keyed bore for precise fit and addon versatility.

Product Highlights

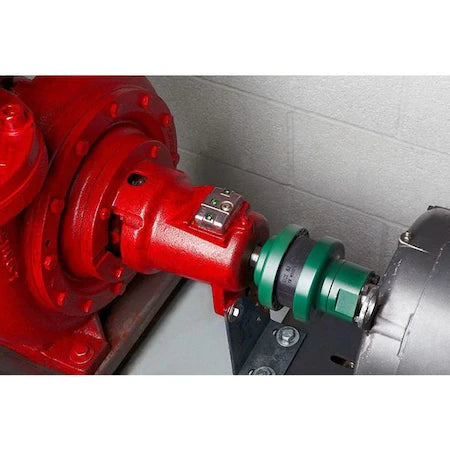

This flange coupling is ideal for setups involving compressors, conveyors, and pumps. It's designed to absorb shocks, align properly, and handle both misalignment and end float effectively.

Product Information

Standard Information

• Bore Diameter: 7/8 inch
• Hub Diameter: 1 7/8 inches

Technical Specifications

• Material: Carbon Steel
• Outside Diameter: 3 1/4 inches
• Length through Bore: 1 3/64 inches
• Max. RPM: 7,600 RPM
• Max. Torque: 312 in-lb
• Bore Type: Round Keyed
• System of Measurement: Inch
• Weight: 0.9 lb
