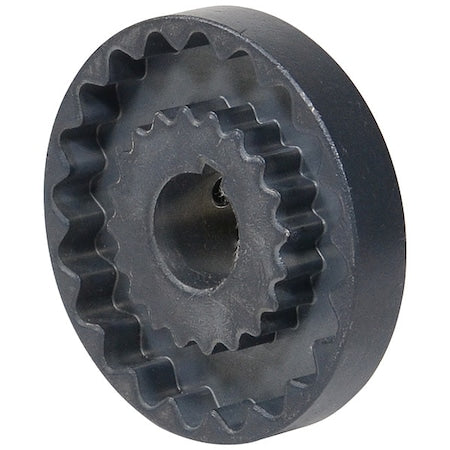

TB Woods 5J-11/8 Flange 1 1/8 Bore

Product Description

The TB Woods 5J-11/8 Flange is designed with a 1 1/8 bore, ideal for secure and precise shaft connections. Manufactured by TB Woods, this flange is reliable and durable for use in demanding industrial settings.

• Compact design
• High precision
• Easy installation

Product Highlights

This 5J Flange is engineered to fit into tight spaces and provides accurate shaft alignment. Its robust construction ensures extended service life and minimal maintenance.

Product Information

Standard Information

• Brand: TB Woods
• Item Number: 5J-1 1/8

Technical Specifications

• Sleeve Coupling Flange
• Weight: 0.9 lb
• Hub Diameter: 1 7/8 in
• Max RPM: 7,600 RPM
• Bore Diameter: 1 1/8 in
• Hub Material: Carbon Steel
• Outside Diameter: 3.25 in
• Maximum Torque: 312 in-lb
• Length Through Bore: 1.04 in
• Set Screw Location: One Over Keyseat and @ 90 Degrees
• Keyway Size: 1/4 in x 1/8 in
