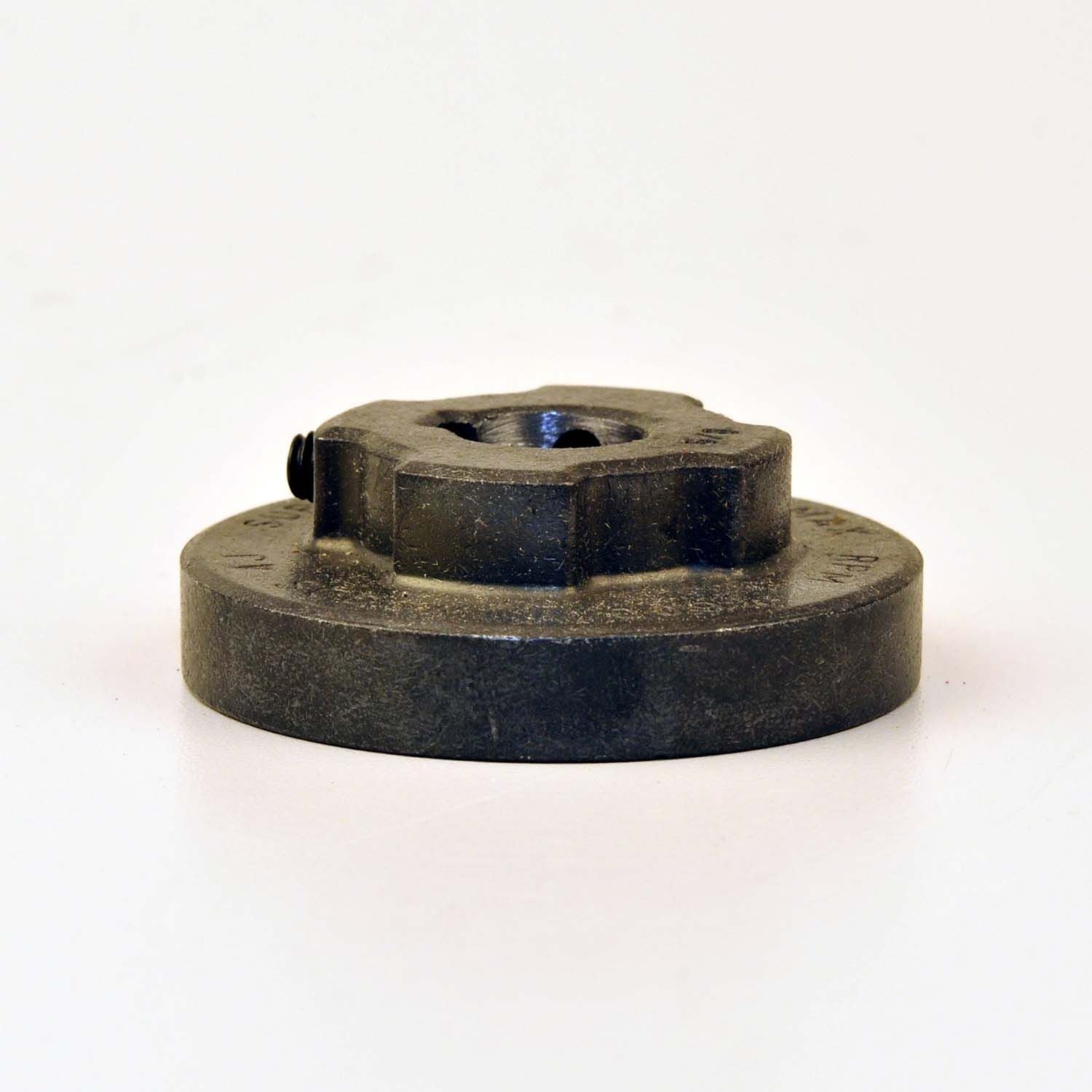

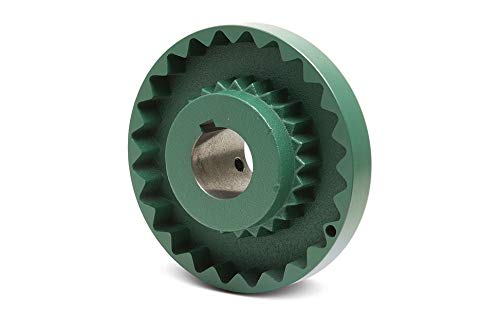

TB Woods 4J58 Sure-Flex Sleeve Coupling Flange 5/8 Bore

Product Description

The TB Woods 4J-5/8 Sure-Flex Sleeve Coupling Flange is a reliable component designed for various industrial applications. Constructed from durable materials, this flange features a 5/8 inch bore and ensures a secure and efficient connection for your equipment.

• Durable carbon steel construction
• Provides secure and reliable connections
• Suitable for a wide range of industrial applications

Product Highlights

Designed for use in compressors, conveyors, motors, and pumps, the TB Woods 4J-5/8 Sure-Flex Sleeve Coupling Flange offers excellent resistance to shock, misalignment, and vibration, allowing for a long service life.

Product Information

Standard Information

• Brand: TB Woods
• MPN: 4J-5/8
• Model: 4J

Technical Specifications

• Item Number: 4J58
• Weight: 0.4 lb
• Bore Diameter: 5/8 inch
• Maximum Speed: 7600 RPM
• Material: Carbon Steel
• Keyway Size: 3/16 x 3/32 inch
• Outside Diameter: 2.5 inches
• Maximum Torque: 156 in-lb
• System of Measurement: Inch
