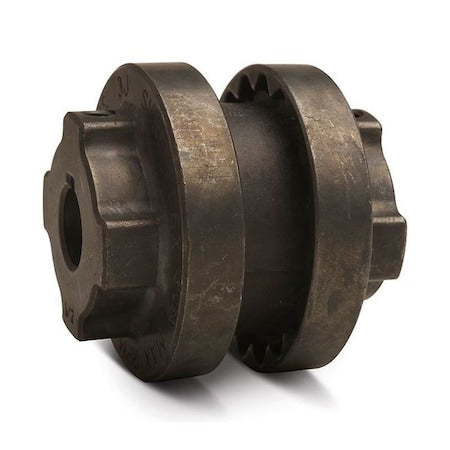

TB Woods 4J-1 Flange 1 Bore Replacement

Product Description

The TB Woods 4J-1 Flange with 1 inch bore is designed to meet the demands of industrial applications. It is crafted with precision to ensure secure alignment and minimize vibration.

• Designed for high performance
• Resistant to wear and corrosion
• Effective in minimizing vibration

Product Highlights

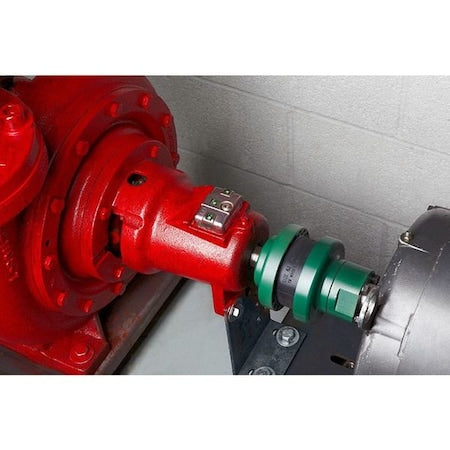

This flange is suitable for use in industrial machinery, pumps, compressors, and conveyor systems.

Product Information

Standard Information

• Item Number: 4J-1
• Brand: TB Woods

Technical Specifications

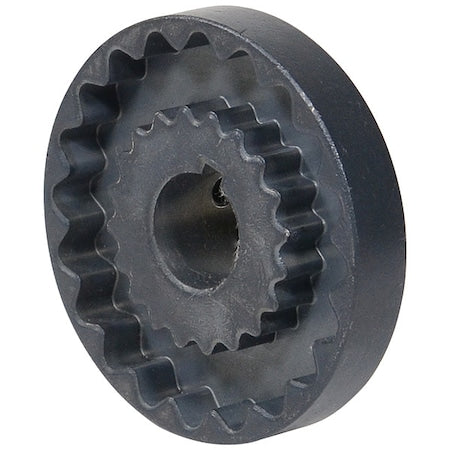

• Sleeve Coupling Flange
• Weight: 0.4 lb
• Features: 4-way flexing action absorbs shock, misalignment, and end float, vibration
• Hub Type: Flange Hub
• Maximum RPM: 7,600 RPM
• Bore Diameter: 1 inch
• Bore Type: Round Keyed
• Applications: Motors, pumps, compressors, blowers, mixers, and conveyors
• Body Style: Type-J Flange Close Coupled
• Height: 2.5 inches
• Hub Diameter: 1 5/8 inches
• Hub Material: Carbon Steel
• Keyway Depth: 1/8 inch
• Keyway Width: 1/4 inch
• Outside Diameter: 2.5 inches
• Coupling Size: 4
• Maximum Torque: 156 in-lb
• Setscrew Location: One over the key and one at 90 degrees
• Screw Thread Size: 1/4-20
• Material of Construction: Sintered Steel
• Max Angular Misalignment: 1 degrees for EPDM/Neoprene Sleeves
