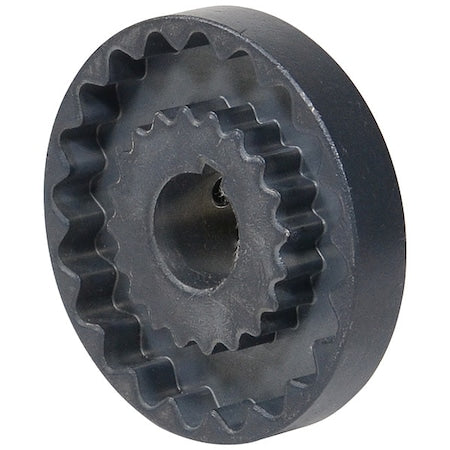

TB Woods 4J-1/2 Sleeve Coupling Flange 1/2 Inch Bore

Product Description

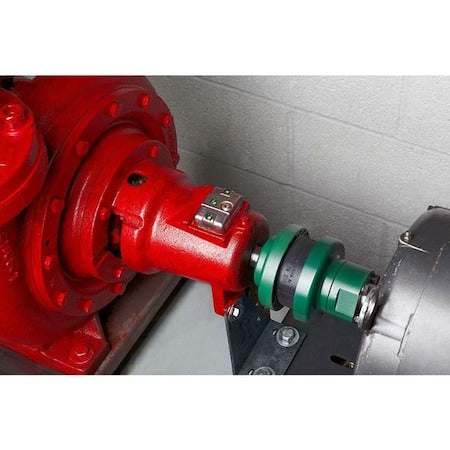

The TB Woods 4J-1/2 Sleeve Coupling Flange features a 1/2 inch bore and is ideal for industrial applications such as compressors, conveyors, motors, pumps, and more. Built for durability and efficiency, this coupling flange is crafted from robust carbon steel.

• Maximum torque of 156 inch-lbs
• Max RPM of 7,600
• Corrosion-resistant due to chemical and oil resistant properties

Product Highlights

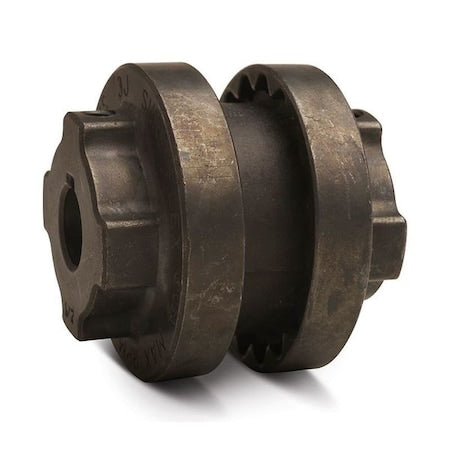

Experience reliability with TB Woods 4J-1/2 Flange that ensures reduced mechanical stress thanks to its 4-way flexing action, which absorbs shock, misalignment, and end float.

Product Information

Standard Information

• Material: Carbon Steel
• Type: J Flange Close Coupled

Technical Specifications

• Outside Diameter: 2.5 inches
• Bore Type: Round Keyed
• Hub Diameter: 1 5/8 inches
• Keyway Size: 1/8 in x 1/16 in
• Maximum Speed: 7,600 RPM
• Length through Bore: 0.86 inches
• Set Screw Location: One over keyseat and at 90 degrees
