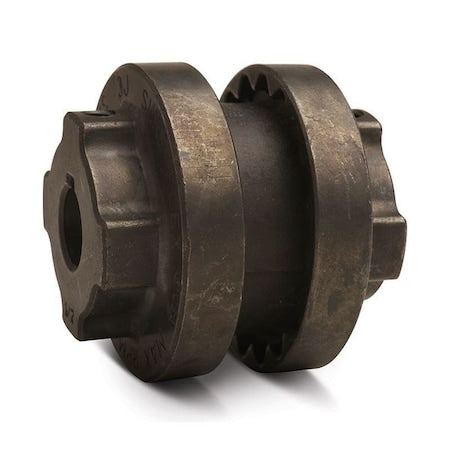

TB Woods 3J-3/8 Mechanical Coupling Flange, Bore 3/8 Inch, Max 9200 RPM

Product Description

The TB Woods 3J-3/8 coupling flange is designed for reliable mechanical power transmission in industrial settings. Featuring a bore size of 3/8 inch, it is ideal for facilitating torque and rotational motion between connected devices at speeds up to 9200 RPM.

• Durable carbon steel construction ensures longevity and resistance to wear.
• Capable of accommodating up to 78 inch-lb of torque.
• Engineered for precision with a bore tolerance of +0.0005 inch to +0.0015 inch.

Product Highlights

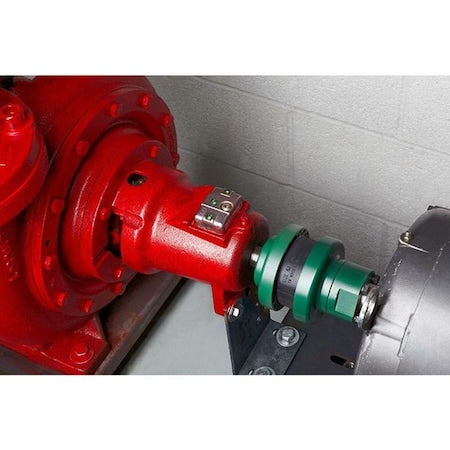

This coupling flange fits a variety of applications, including pumps, motors, and compressors. Its robust design allows it to handle significant mechanical loads, making it a versatile choice for diverse industrial environments.

Product Information

Technical Specifications

• Bore Diameter: 3/8 inch
• Maximum Speed: 9200 RPM
• Outside Diameter: 2 1/16 inches
• Material: Carbon Steel
• Weight: 0.24 lbs
• Hub Type: Flange Hub
• Keyseat Size: 3/32 x 3/64 inches
• System of Measurement: Inch
