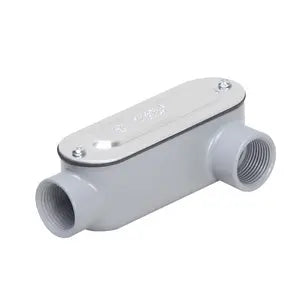

TAYMAC RLL125 Conduit Body Type LL 1-1/4 in Hub 30.8 cu-in Capacity

Product Description

The TAYMAC RLL125 is a conduit body designed for use with threaded rigid or IMC conduit systems. It features a one and one-fourth inch hub and a capacity of thirty point eight cubic inches. This product is made from die cast aluminum and offers a durable powder-coated finish for added resilience.

• Removable cover for easy access and maintenance
• Two hubs for versatile connections
• Designed for NEMA 3R enclosure conditions

Product Highlights

The TAYMAC RLL125 conduit body is intended to assist in pulling access or splitting conduit runs into different directions. It is well-suited for both commercial and residential applications.

Product Information

Standard Information

• Brand: TAYMAC
• Manufacturer: Hubbell

Technical Specifications

• Type: Type LL
• Material: Die Cast Aluminum
• Color: Gray
• Connection Type: Thread
• Dimensions: Seven point eight two in length x three point five two in width x two point five in height
• Capacity: Thirty point eight cubic inches
• Hub Size: One and one-fourth inches
• Number of Hubs: Two
• Enclosure: NEMA 3R
• Application: For use with threaded rigid/IMC conduit for pulling access or to split a run into multiple directions
