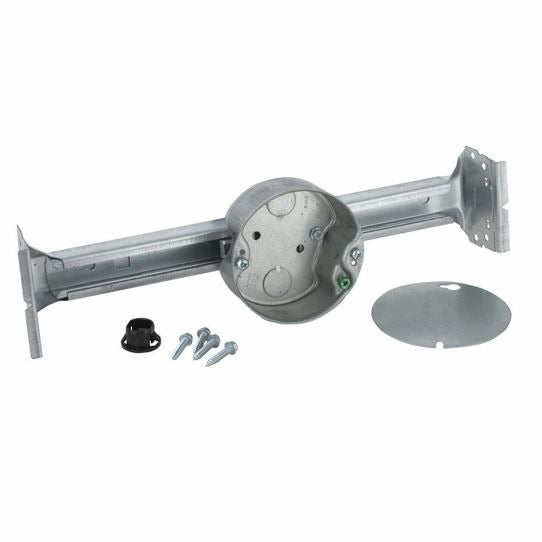

Taymac 926-1 Ceiling Fan Box Steel 15.8 Cu-in New Work

Product Description

The TAYMAC 926-1 is a steel ceiling fan and lighting fixture box designed for new construction installations. It mounts to an adjustable brace that spans from 16 inches to 24 inches to accommodate standard joist spacing without requiring direct access to a joist. The drawn steel construction provides the structural integrity needed to support ceiling fans and heavier light fixtures. The box carries a 15.8 cubic inch capacity and includes a nonmetallic sheathed cable connector, mounting hardware, and instructions. Licensed electricians install this box during rough-in on new work projects where the ceiling surface has not yet been closed.

This box is suited for residential new construction where ceiling fans or lighting fixtures will be mounted between joists. The adjustable brace eliminates the need to sister a joist or cut additional framing, making it a practical choice for standard 16-inch or 24-inch on-center joist layouts. Knockouts in the bottom of the box allow straightforward cable entry and exit. The package includes all hardware needed to complete the installation.

Key Features

• Adjustable brace spans 16 inches to 24 inches for standard joist spacing
• 15.8 cubic inch box capacity
• Drawn steel construction with silver finish
• Knockouts in bottom of box for easy cable entry and exit using 1/2 inch conduit knockouts
• Includes nonmetallic sheathed cable connector, mounting hardware, and instructions
• High-strength, hardened mounting screws
• UL Listed

Compatibility

Designed as an OEM-style new work brace box for residential ceiling fan and lighting fixture installations in new construction framing with joist spacing between 16 inches and 24 inches.

Installation Notes

Installation is typically performed by a licensed electrician during the rough-in phase before drywall is applied. De-energize the circuit at the panel before beginning any wiring connections. Secure the brace between joists per the included instructions and verify the box is rated for the weight of the fixture being supported. Work must comply with applicable NEC requirements for ceiling fan support boxes.

Technical Specifications

• Cubic Capacity: 15.8 cu-in
• Material: Steel
• Construction: Drawn
• Color: Silver
• Knockouts: 1/2 inch (2 knockouts)
• Mounting: New Work Adjustable Brace, 16 inches to 24 inches
• Box Dimensions: 15 inches x 4.06 inches x 2.88 inches
• Depth: 1.5 inches
• Standard: UL Listed
• Country of Origin: United States

Standard Information

• Brand: TAYMAC
• Manufacturer Part Number: 926-1
