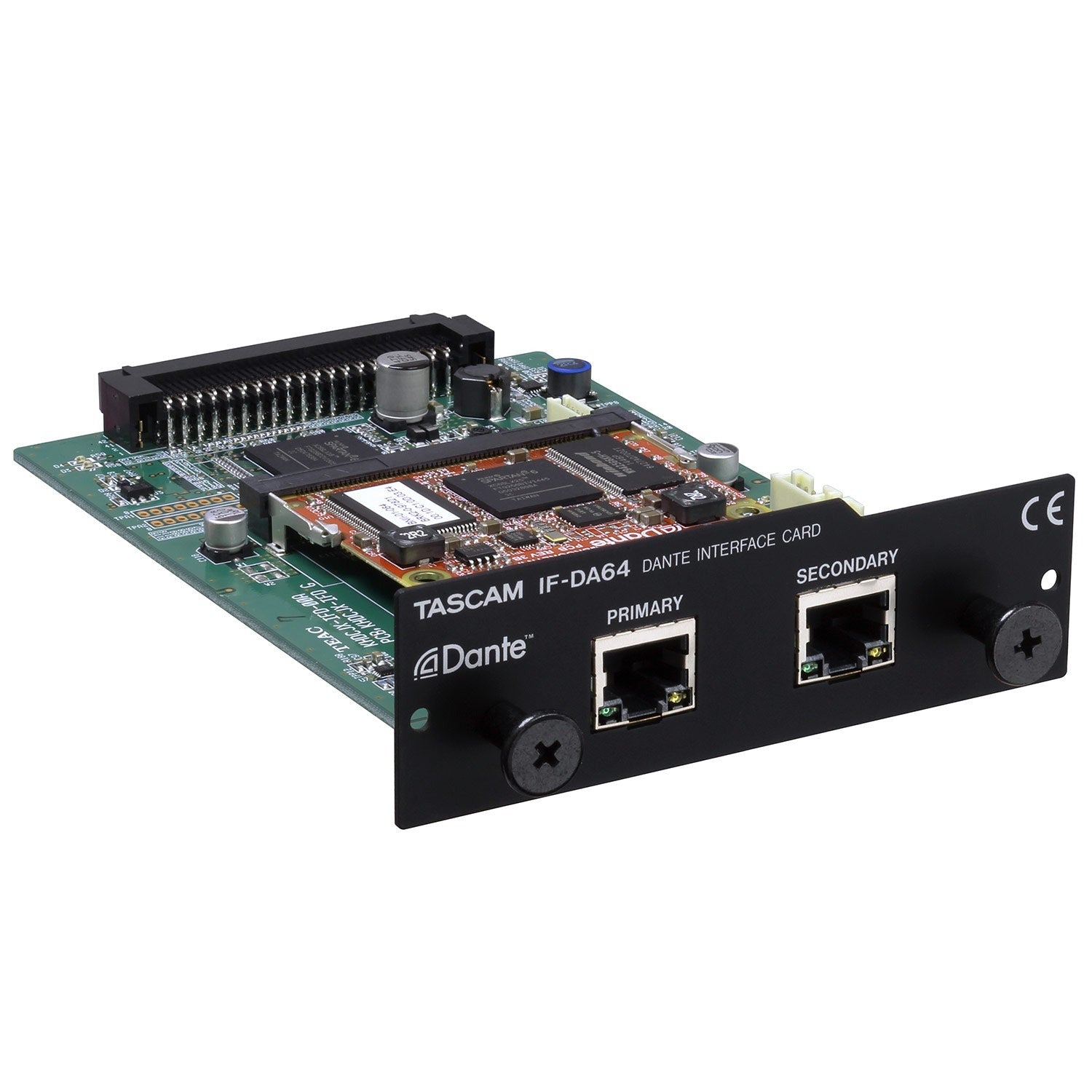

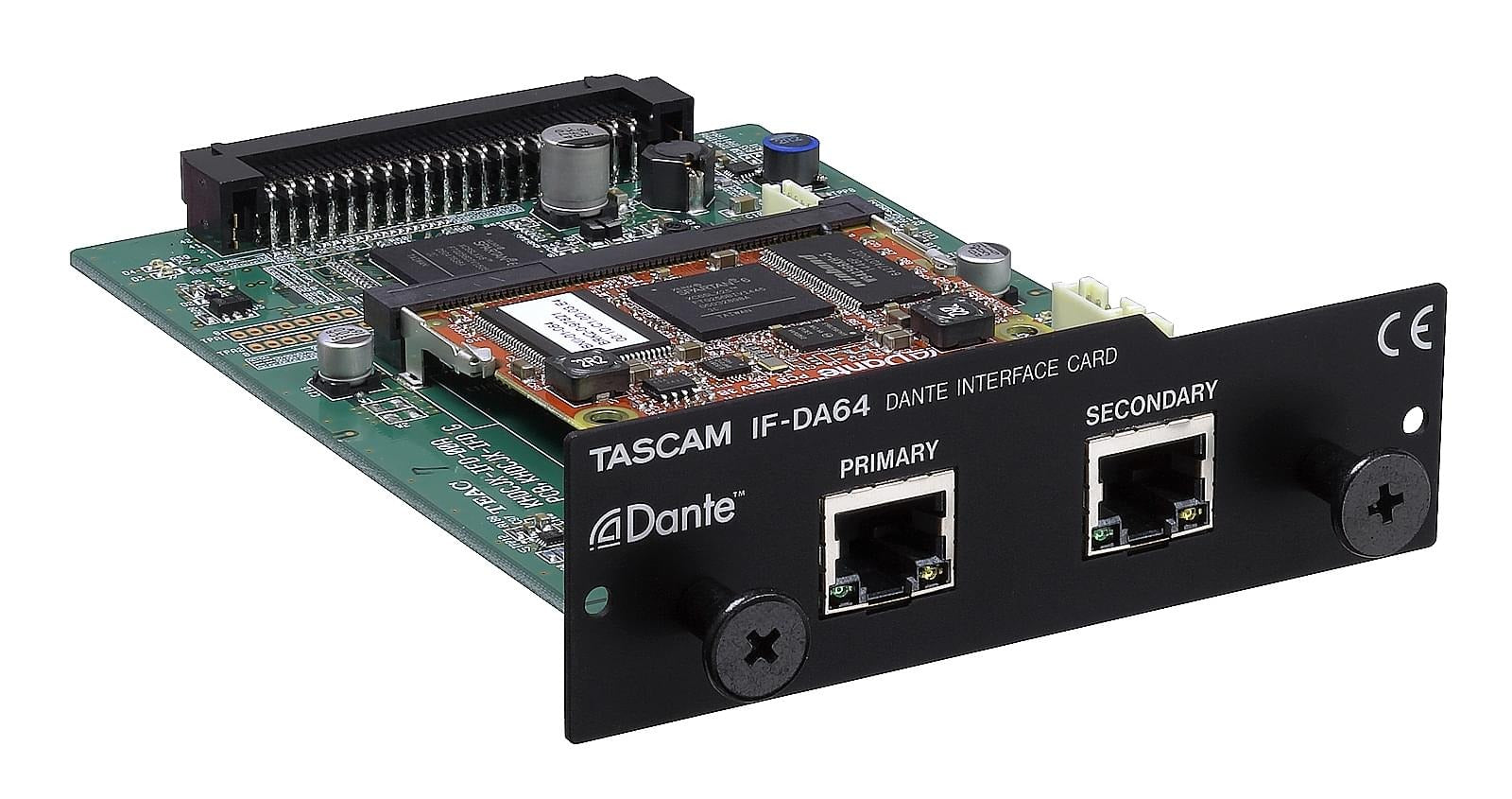

Tascam IF-DA64 64-Channel Dante/AES67 Interface Card (64 In/64 Out)

Product Description

The Tascam IF-DA64 is a Dante/AES67 expansion interface card (MPN IF-DA64) that provides networked multichannel audio I/O for compatible Tascam devices. It delivers 64 inputs and 64 outputs at 44.1/48 kHz or 32 inputs and 32 outputs at 88.2/96 kHz, supports primary/secondary Dante redundancy, and connects via dual Gigabit RJ-45 ports using Cat 5e or better cabling. It is designed for Tascam expansion slot integration in mixers and recorders.

• 64-in/64-out at 44.1/48 kHz; 32-in/32-out at 88.2/96 kHz; supports up to 24-bit resolution
• Dual Gigabit Ethernet RJ-45 ports (1000BASE-T, IEEE 802.3ab) with primary/secondary Dante redundancy
• Compatible with Tascam expansion slot system — includes compatibility with DA-6400, DA-6400dp, Sonicview 24XP and 16XP

Product Highlights

Networked Dante/AES67 I/O: 64 channels at 44.1/48 kHz, dual Gigabit RJ-45 with redundancy, compact expansion card

Product Information

Standard Information

• Brand: TASCAM
• Manufacturer Part Number: IF-DA64
