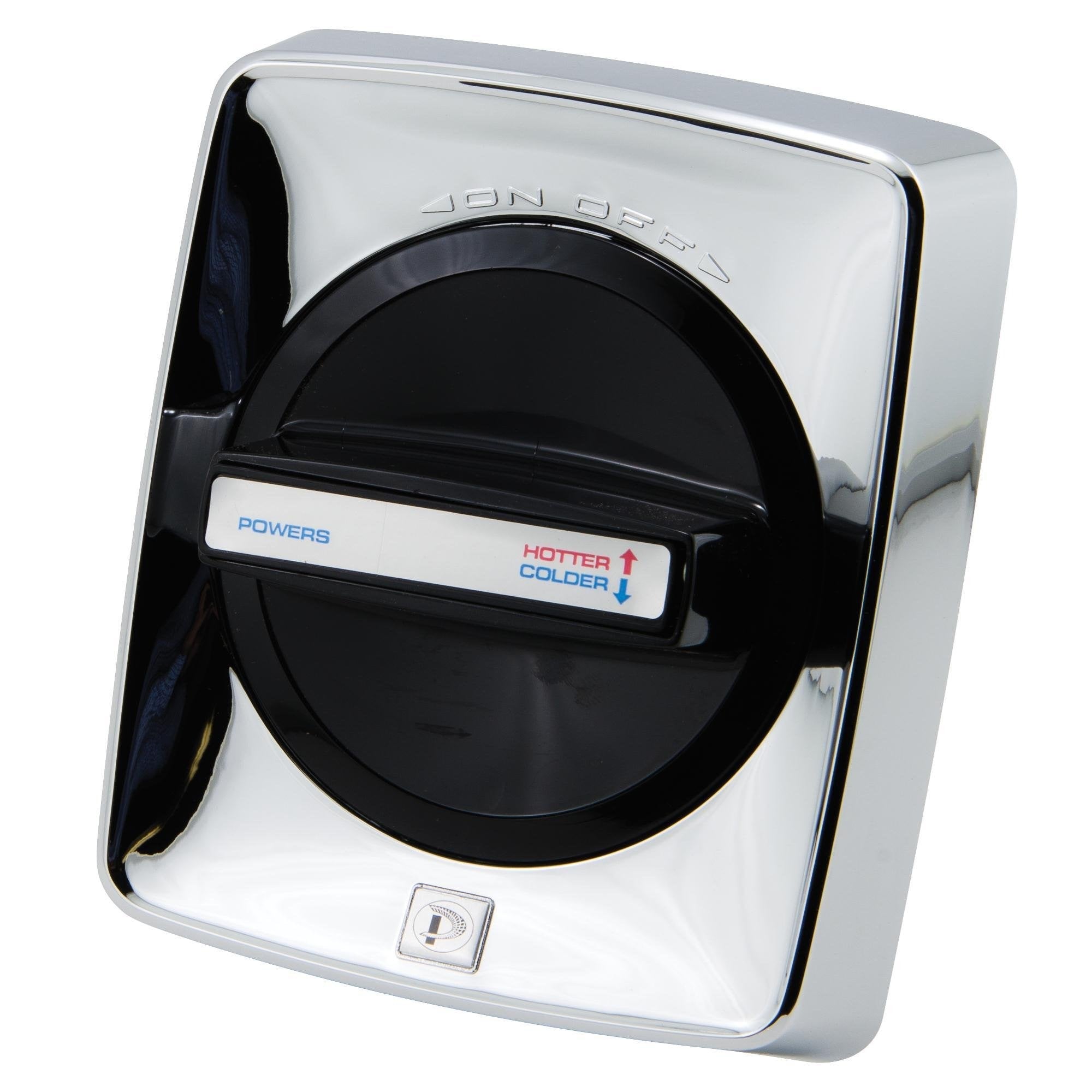

Tapco 401-230A Hydraulic Dial Handle Assembly

Product Description

The TAPCO 401-230A is a handle and hydraulic dial assembly used in hydraulic control and valve actuation applications. This assembly combines a handle with a hydraulic dial mechanism to provide manual control and position indication for hydraulic systems. It is designed for use by licensed trades and mechanical contractors working on hydraulic valve and actuator installations where tactile control and readable feedback are required at the point of operation.

The 401-230A is suited for hydraulic system installations in commercial and industrial environments where manual dial-type handle assemblies are specified. It is appropriate for use as a replacement or service component in hydraulic control valve setups that require a combined handle and dial configuration. Installers working on fluid control systems, process piping, and mechanical systems will find this assembly applicable to dial-type valve handle replacement work.

Key Features

• Integrated handle and hydraulic dial assembly in a single unit
• Designed for manual actuation and position readout on hydraulic valve systems
• OEM-style replacement configuration for hydraulic dial handle applications
• Compact assembly suitable for service and maintenance replacement

Compatibility

Designed as an OEM-style replacement hydraulic dial handle assembly for hydraulic valve and actuator systems requiring a dial-type manual handle configuration.

Installation Notes

Installation should be performed by a qualified mechanical contractor or licensed technician familiar with hydraulic control systems. Depressurize and isolate the hydraulic circuit fully before removing or installing any handle or dial assembly components. Verify that the replacement assembly is correctly seated and secured before returning the system to service. Consult applicable local mechanical codes and the system manufacturer's documentation for proper installation procedures.

Technical Specifications

• Assembly Type: Handle and Hydraulic Dial Assembly

Standard Information

• Brand: TAPCO
• Manufacturer Part Number: 401-230A
