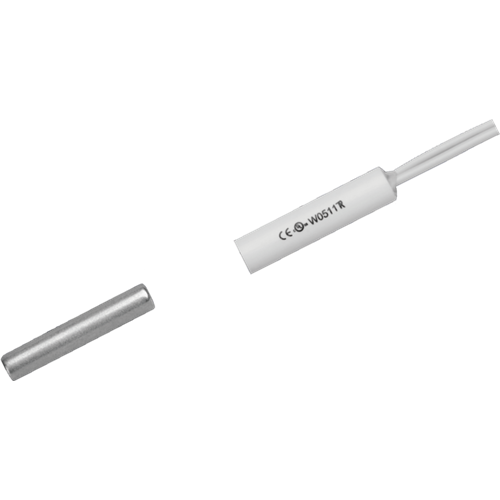

Tane Alarm TAP-15 Recessed Type Contact

Product Description

The Tane Alarm TAP-15 is a .25" (6.4mm) recessed type contact with a contact size of .25"x1.06" (6.4mmx26.9mm) and a standard magnet size of .25"x1" (6.35mmx25.4mm). It features 12" (305mm) 22 AWG leads. This contact is suitable for security systems requiring concealed installation.

• Recessed type contact for concealed installation
• Standard gap of .6" (15mm)
• 12" (305mm) 22 AWG leads

Product Highlights

The TAP-15 is a compact and reliable recessed contact for security applications.

Product Information

Standard Information

• Brand: Tane Alarm
• Manufacturer Part Number: TAP-15

Technical Specifications

• Part Number: TAP-15
• Gap Inch (mm): .6"(15)
• Loop: CLOSED
• Reed Form: Normally Open
• Max. Contact Rating (W): 10
• Max. Initial Contact Resistance (mΩ): 100
• Max. Switching Voltage (V): AC110/DC100
• Max. Switching Current (A): 0.5
• OPERATING TEMPERATURE: -40°C to +60°C
• Contact Size: .25?×1.06?(6.4mm×26.9mm)
• Standard Magnet Size: .25?×1?(6.35mm×25.4mm)
• Leads: 12?(305mm) 22 AWG
