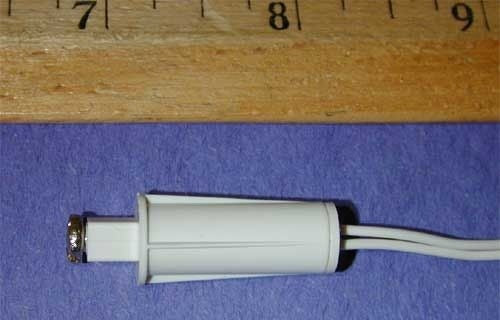

Tane Alarm tane-3/8ash Recessed Door Contact 10 Pack

Product Description

The TANE ALARM tane-3/8ash is a recessed door and window contact designed for low-voltage alarm and access control systems. Each unit features a gap-adjusting screw head that allows field technicians to fine-tune the magnet gap after installation, reducing nuisance trips caused by door or frame flex. Standard 12-inch leads are included on every contact, giving installers enough wire to route to the nearest junction or panel termination without splicing. The white finish suits standard residential door and window frames. This contact is typically installed by alarm system technicians and low-voltage security contractors.

The tane-3/8ash is sized at 3/8-inch diameter for recessed installation into drilled door or window frame bores. The adjustable screw head and built-in tamper switch make it well suited for residential and light commercial security installations where code compliance and tamper detection are required. The 10-pack quantity is practical for new construction rough-in work or multi-door retrofit projects where multiple openings need protection.

Key Features

• Gap-adjusting screw head allows field calibration of magnet gap without removing the contact
• Built-in tamper switch provides tamper detection as required by many alarm codes
• 12-inch pre-attached leads standard on every unit for direct panel or junction termination
• 3/8-inch recessed profile fits standard drilled bores in door frames and window sashes
• White finish blends with standard residential and light commercial door frames
• Sold in a 10-pack for efficient multi-opening installations

Compatibility

Designed as a recessed replacement or new-installation contact for standard 3/8-inch bore low-voltage door and window alarm circuits in residential and light commercial security systems.

Installation Notes

Installation is typically performed by licensed low-voltage alarm technicians in compliance with applicable local and NEC low-voltage wiring codes. Power down the alarm panel or isolate the zone circuit before making wire terminations. Drill the bore to the correct 3/8-inch diameter and depth to ensure flush seating of the contact body. Use the adjustable screw to set the magnet gap after the door or window hardware is fully installed and operational.

Technical Specifications

• Contact Diameter: 3/8 inches
• Lead Length: 12 inches
• Color: White
• Quantity: 10 per pack
• Screw Head Type: Adjustable gap-adjusting screw
• Tamper Switch: Included

Standard Information

• Brand: TANE ALARM
• Manufacturer Part Number: tane-3/8ash
