Tane Alarm TANE-3/4TCWH recessed type w/terminal quick-connect

Product Description

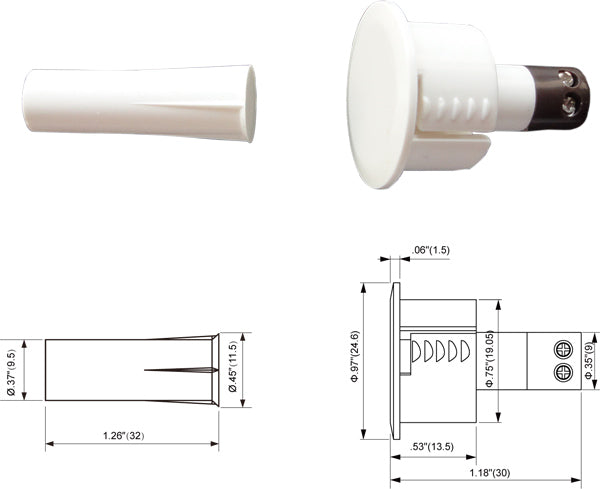

The Tane Alarm TANE-3/4TCWH is a .76" (19.3mm) recessed type magnetic sensor with terminal quick-connect, designed for flush mounting in doors and windows. It has a contact size of .76"x1.18" (19.3mmx30mm) and a standard magnet size of .76"x.85" (19.3mmx21.5mm). It supports a maximum rating of 10 watts. Built for closed loop operation, it ensures dependable performance.

• .76"(19.3mm) Recessed Type
• W/Terminal Quick-Connect
• Designed for flush mounting in doors and windows

Product Highlights

This recessed contact is a professional grade magnetic sensor designed for flush mounting in doors and windows. It features quick connect terminals for easy wiring.

Product Information

Standard Information

• Brand: Tane Alarm
• Manufacturer Part Number: TANE-3/4TCWH
• Country of Origin: USA

Technical Specifications

• Part Number: TANE-3/4 TC
• Gap Inch (mm): 1.1"(28)
• Loop: CLOSED
• Open/Closed: Normally Open
• Max. Contact Rating (W): 10
• Max. Initial Contact Resistance (mΩ): 100
• Max. Switching Voltage (V): AC110/DC100
• Max. Switching Current (A): 0.5
• OPERATING TEMPERATURE: -40°C to +60°C
