Tane Alarm stb-10wh Recessed Contact White 10 Pack

Product Description

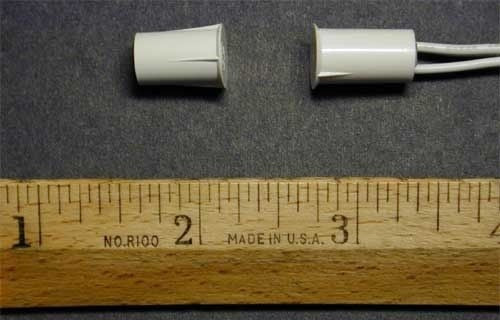

The TANE ALARM stb-10wh is a stubby-type recessed magnetic contact designed for door and window intrusion detection applications. Each contact measures 3/8 inches in diameter by 3/4 inches in length, making it well suited for installations where a low-profile, flush-mounted sensor is required. The pack includes 10 contacts, allowing technicians to complete multi-point installations from a single order. These units are finished in white to blend with standard door frames, window casings, and trim. Security system installers and alarm technicians are the primary trade working with this component.

Stubby-type recessed contacts are commonly installed in residential and light commercial security systems. Their compact 3/8-inch body diameter allows them to fit into narrower door and window frame bores compared to standard full-size recessed contacts. They are typically used at entry doors, casement windows, sliding windows, and interior access points where a surface-mount contact is not desired. The white finish suits painted wood, vinyl, and composite frames commonly found in residential construction.

Key Features

• Stubby form factor at 3/8 inches diameter by 3/4 inches length fits tighter frame bores
• White finish blends with standard door and window trim
• 10-contact pack supports multi-zone residential or light commercial installations
• Recessed mounting conceals hardware for a clean, tamper-resistant appearance

Compatibility

Designed as an OEM-style replacement or new-installation recessed magnetic contact for standard residential and light commercial alarm panel wiring systems.

Installation Notes

Recessed contacts are installed by licensed alarm technicians and low-voltage security system installers. Drill the frame and door or window sash to the appropriate bore diameter before seating the contact and magnet. De-energize the alarm panel zone before wiring to avoid false triggers or panel faults. Follow local low-voltage wiring codes and the alarm panel manufacturer guidelines for end-of-line resistor requirements.

Technical Specifications

• Contact Type: Recessed stubby
• Body Diameter: 3/8 inches
• Body Length: 3/4 inches
• Color: White
• Pack Quantity: 10

Standard Information

• Brand: TANE ALARM
• Manufacturer Part Number: stb-10wh
