Tane Alarm MET-CDS Bi-Directional Curtain Door Switch 2.68 in x 0.95 in x 0.54 in

Product Description

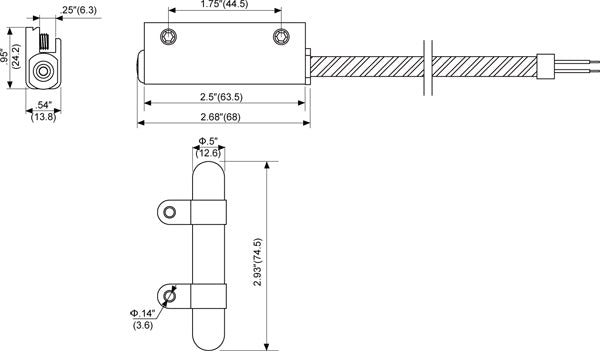

The Tane Alarm MET-CDS is a bi-directional curtain door switch with a reversible mounting assembly. The contact size is 2.68 in x 0.95 in x 0.54 in, and the standard magnet size is 2.93 in x 0.5 in x 0.5 in. It has a standard gap of 3.15 inches and includes a 36-inch armor cable. This commercial contact is normally open.

• Bi-Directional Curtain Door Switch
• Reversible Mounting Assembly
• 36"(915mm) Armor Cable Available

Product Highlights

The MET-CDS is a bi-directional curtain door switch with a reversible mounting assembly and a 36-inch armor cable.

Product Information

Standard Information

• Brand: Tane Alarm
• Manufacturer Part Number: MET-CDS
• Country of Origin: USA

Technical Specifications

• Part Number: MET-CDS
• Gap Inch (mm): 3.15"(80)
• Reed Form: Normally Open
• Max. Contact Rating (W): 10
• Max. Initial Contact Resistance (mΩ): 100
• Max. Switching Voltage (V): AC110/DC100
• Max. Switching Current (A): 0.5
• OPERATING TEMPERATURE: -40°C to +60°C
