Talon UAT111-0G 600 VAC 135 Amp 1-Phase 3-Wire 4-Jaw 1-Position No Bypass

Product Description

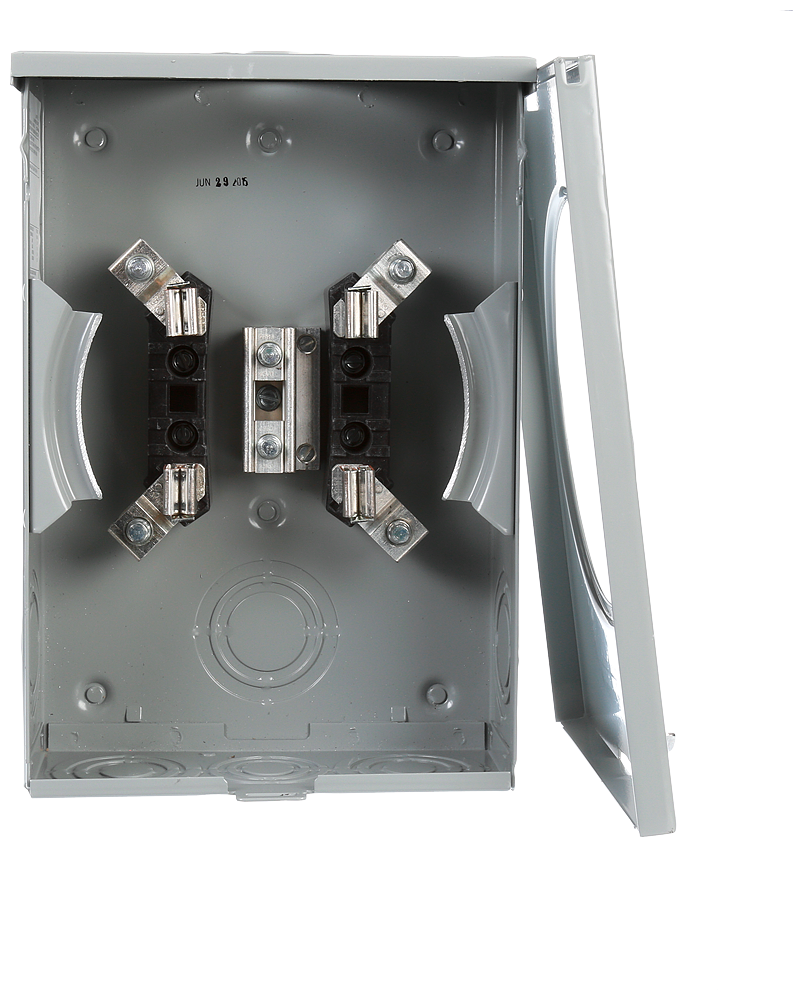

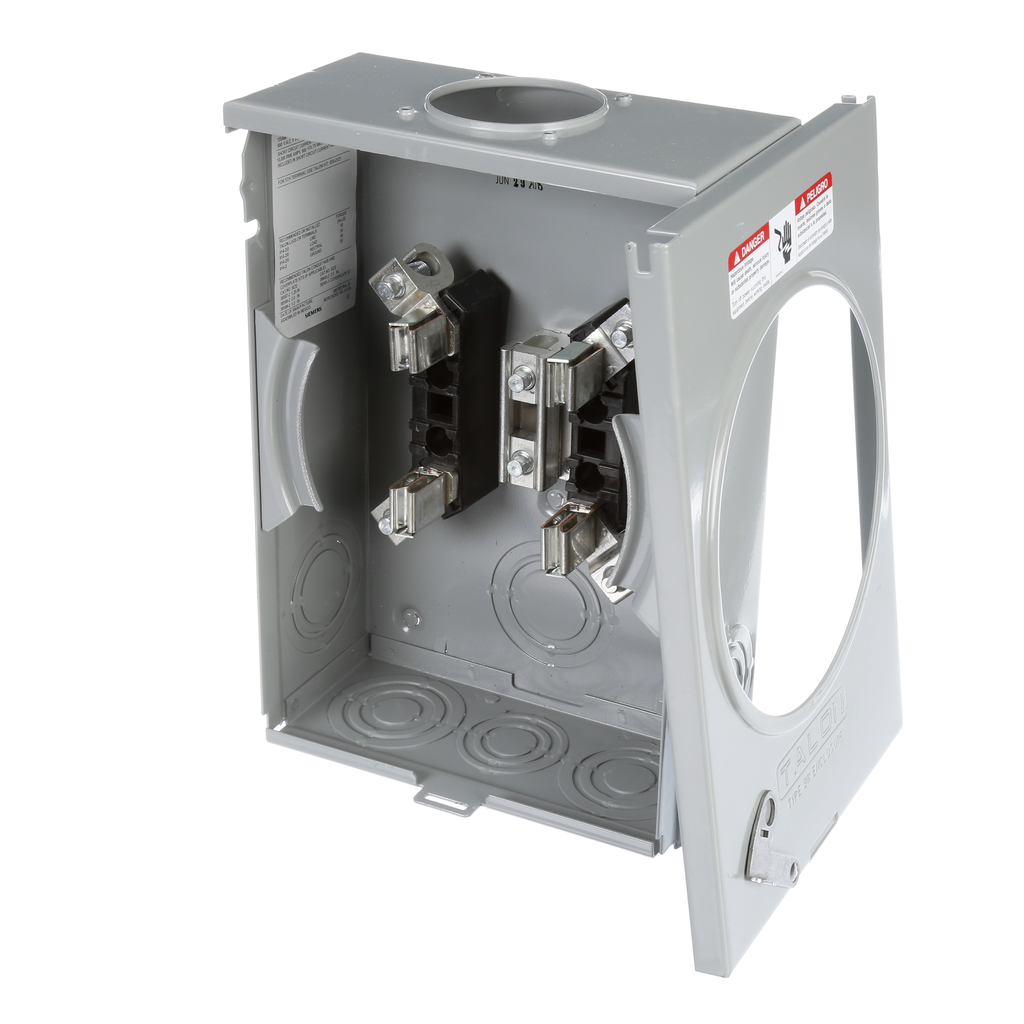

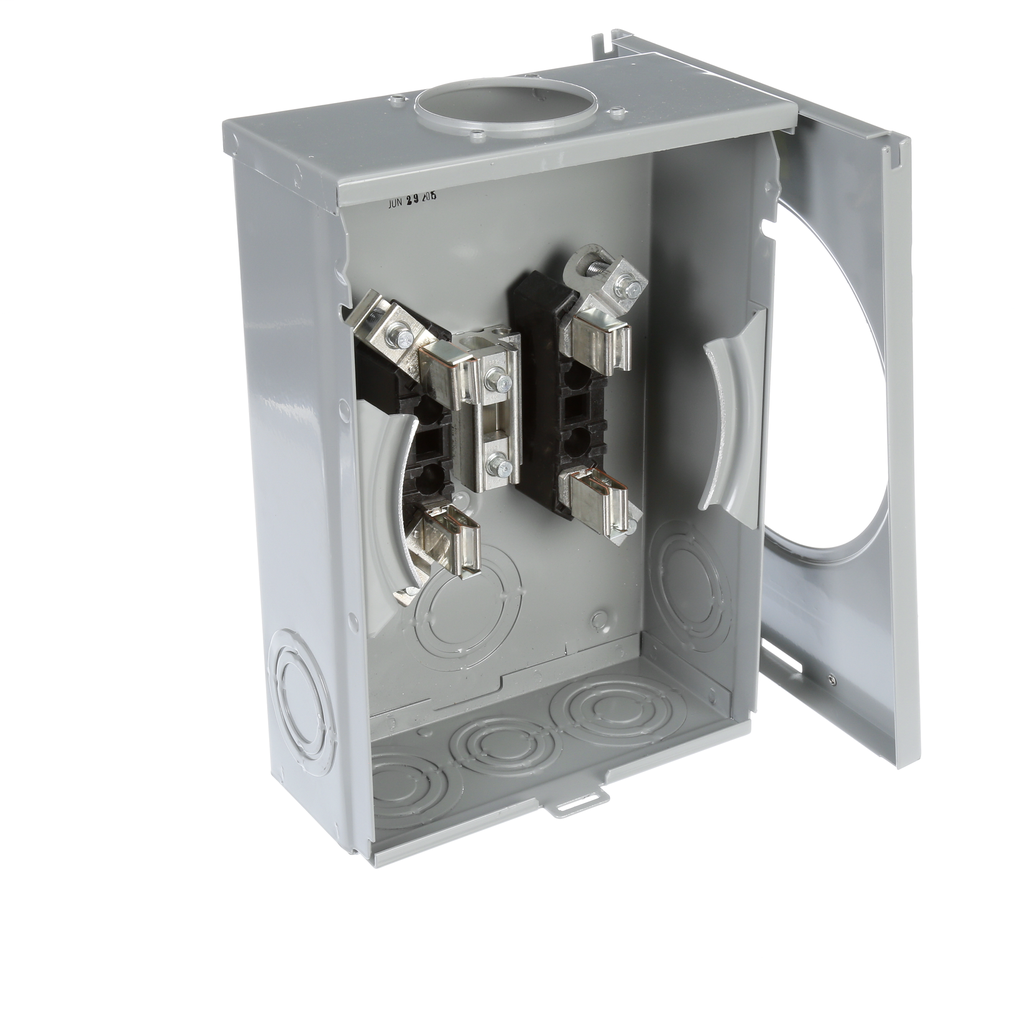

The Siemens UAT111-0G is a reliable ringless meter mounting equipment designed for use in residential settings. This device operates at six hundred volts with a maximum amperage of one hundred thirty-five amps. It is compatible with both overhead and underground cable entries and is designed for single-phase applications.

• Rated for six hundred volts and one hundred thirty-five amps.
• Constructed from steel for durability.
• Features seven holes for installation flexibility.

Product Highlights

This meter socket provides a secure connection for residential applications, ensuring proper energy distribution and safety.

Product Information

Standard Information

• Brand: Talon
• Manufacturer: Siemens

Technical Specifications

• MPN: UAT111-0G
• Voltage: 600 Volt
• Amperage: 135 Amp
• Dimensions: 16.9 x 14.1 x 9.1 inches (Length x Width x Height)
• Weight: 7.413 lb
• Enclosure: Steel
• Cable Entry: OH/UG
• Application: Residential
• Number of Phases: 1 Phase
• Number of Holes: 7 Hole
• Country of Origin: Mexico
• Operating Temperature: Average Ambient
