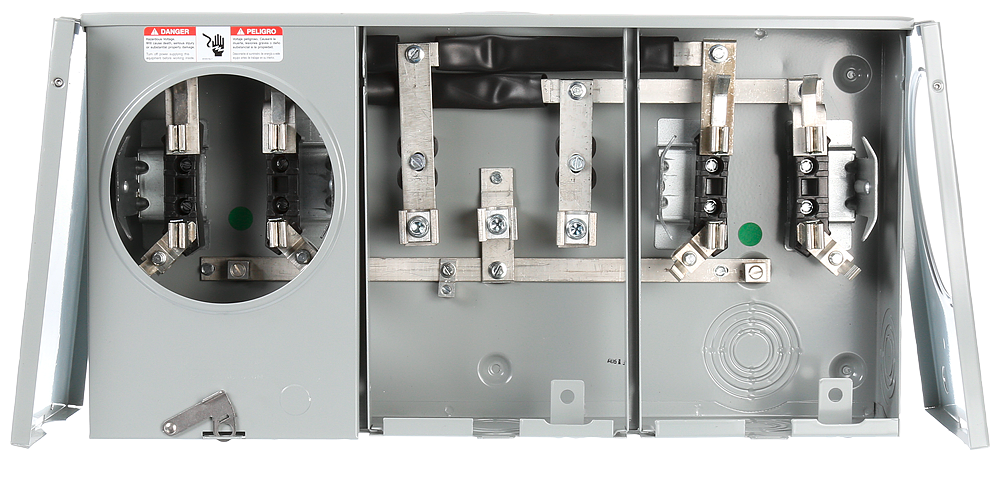

Talon UA2311-0PGP Siemens 600 Vac 100 Amp 1-Phase 3-Wire 4-Jaw 2-Position Horn Bypass Ringless Meter Mounting Equipment

Product Description

The Talon UA2311-0PGP is a Siemens model featuring a 600 VAC capacity and a maximum of 100 amperes. This one-phase, three-wire meter is designed for use in residential applications, making it suitable for various power distribution needs. It includes a horn bypass function for convenience and is compatible with both overhead and underground cable entries.

• Rated for 600 volts and 100 amps
• Durable aluminum enclosure
• Multi-position design for flexible installation

Product Highlights

This meter features a ringless design that enhances safety and is equipped with a bypass to streamline maintenance and service interruptions.

Product Information

Standard Information

• Brand: Talon
• Manufacturer: Landis

Technical Specifications

• Voltage: 600 Volt
• Amperage: 100 Amp
• Size: 5 x 13 x 24 inches
• Weight: 22.910 lb
• Enclosure: Aluminum
• Applications: Residential
• Country of Origin: Mexico
• Operating Temperature: Average ambient
