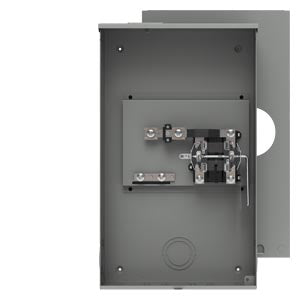

TALON 48704-02 Siemens HQ4SSW Meter Socket 320A 600V 1 Phase NEMA 3R

Product Description

The TALON 48704-02 is a Siemens HQ4SSW meter socket for commercial use. It operates at 320A and 600V in a single-phase configuration. The socket features an offset design suitable for underground and overhead wiring. Made from fourteen-gauge galvannealed steel with a polyester powder finish, the NEMA 3R enclosure ensures protection against the environment. A lever bypass system allows for easy meter maintenance. It includes a transparent polycarbonate safety shield and insulating barriers to protect against accidental shorts or shocks. Connection is done via factory-installed lugs or three-eighths-inch studs.

• Features a lever-operated jaw release for meter maintenance.
• Constructed with a plated copper current path.
• Includes a TALON class 320 narrower upper right-hand blade insert.

Product Highlights

Product Information

Standard Information

• Application: Commercial Applications
• Mounting Type: Surface

Technical Specifications

• Voltage Rating: 600
• Frequency Rating: 50/60
• Amperage Rating: 320
• Phase: 1
• Dimensions: 34 inches H x 20 inches W x 6 inches D
• Hub Size: 4.281
• Enclosure Type: NEMA 3R
• Packaging Dimension: 16 inches x 32 inches x 6 inches
