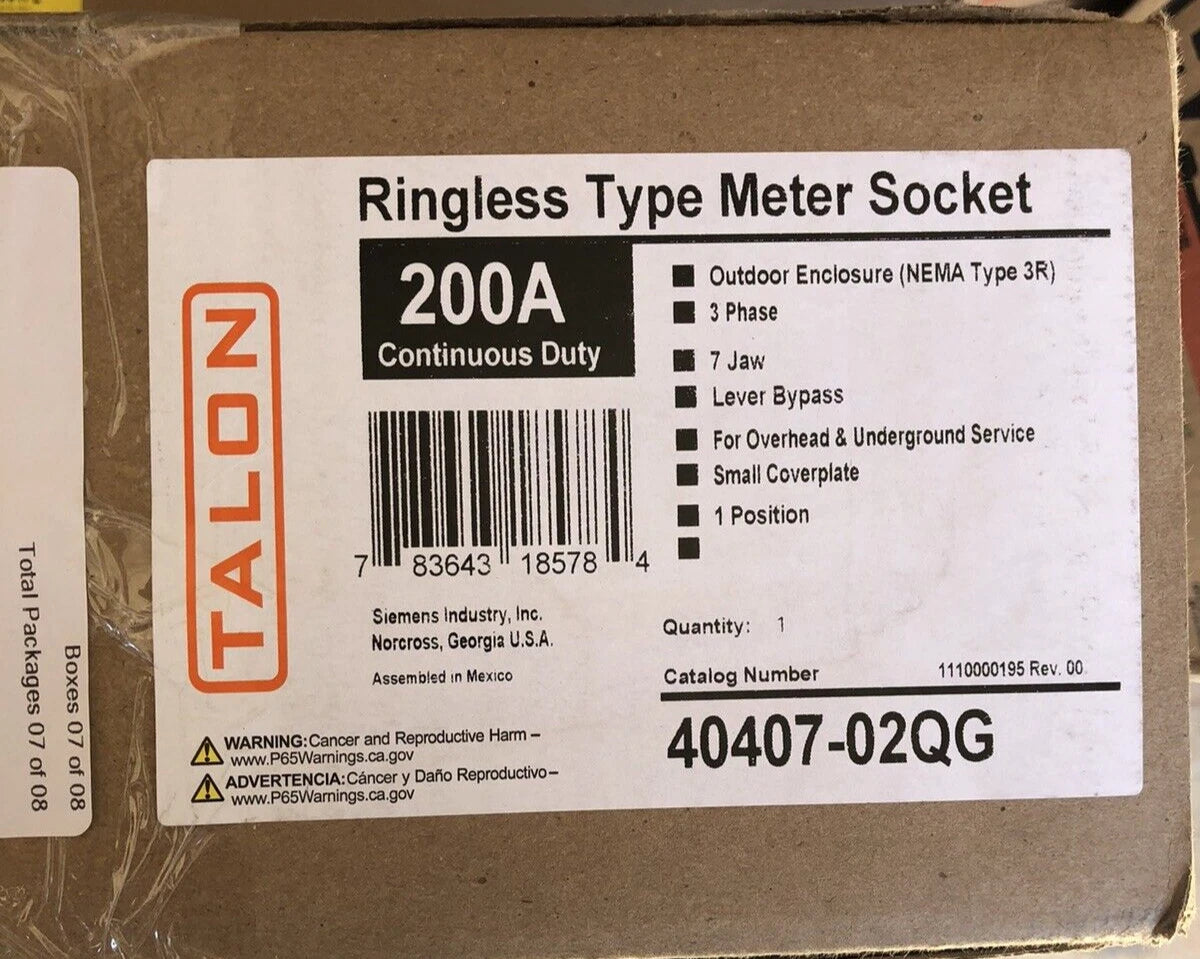

TALON 40407-02QG - 200A 3-Phase Ringless Meter Socket

Product Description

The TALON 40407-02QG is a reliable 3-phase, 1-position meter socket designed for commercial use. It supports both overhead and underground feed options, making it versatile for different installation environments.

• Rated for 200 A current and 600 VAC voltage, suitable for high-power applications.
• NEMA 3R enclosure protects against environmental factors.
• Compatible with wire sizes ranging from 6 AWG to 350 kcmil, providing wiring flexibility.

Product Highlights

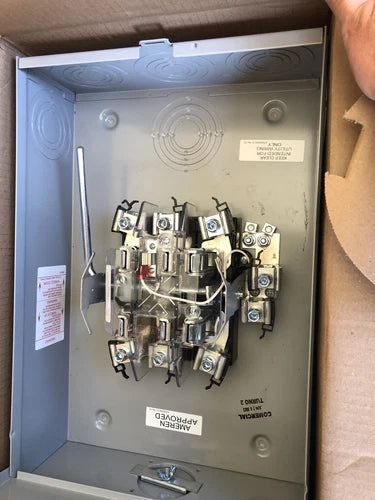

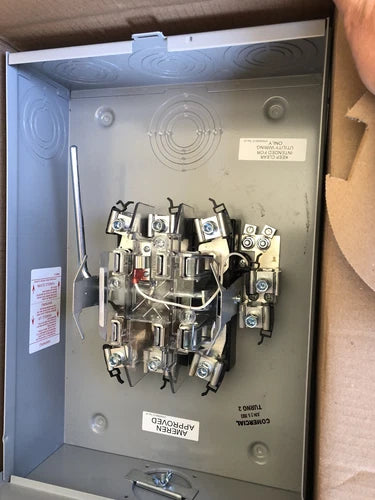

This meter socket features a ringless cover and comes with two ground lugs and an RX CL type hub. The dimensions are 19 inches high, 12.8 inches wide, and 5 inches deep. A lever bypass is also integrated.

Product Information

Standard Information

• Brand: TALON
• Current Type: AC

Technical Specifications

• Maximum Amperage: 200 A
• Phase: 3
• UNSPSC: 39121102
• Wire Size: 6 AWG to 350 kcmil
• Application: Commercial Applications
• Mounting Type: Surface
• Enclosure Type: NEMA 3R
• Voltage Rating: 600 VAC
• Type: 8-Cutout 1-Position
• Hub Type: RX CL
• Includes: Two Ground Lugs
• Cover Type: Ringless
• Dimensions: 19 inches H x 12.8 inches W x 5 inches D
