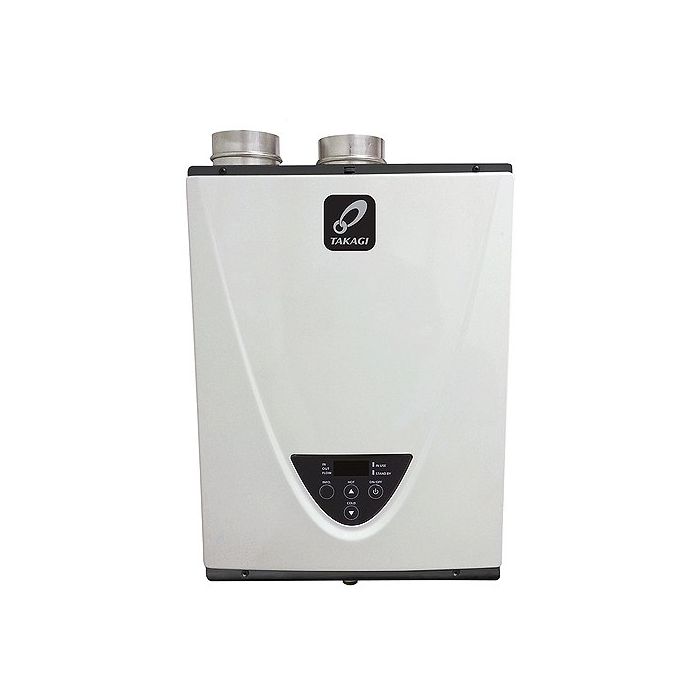

Takagi T-H3J-DV-NG Condensing H.E. Tankless Water Heater Indoor 160K Natural Gas

Product Description

The Takagi T-H3J-DV-NG is a high-efficiency condensing tankless water heater designed for indoor use with natural gas. This unit utilizes Ultra-Low NOx technology and is suitable for venting with three-inch PVC. It has zero inches of clearance to combustibles, making it versatile for different installation scenarios.

• High efficiency with an energy factor of 0.95.
• Flow rate of six point six gallons per minute.
• Compact design with dimensions of twenty-two and one-half inches in height, seventeen and three-fourths inches in width, and ten and three-fourths inches in depth.

Product Highlights

This tankless heater meets industry standards, including AHRI certification and Energy Star rating. It features a durable heat exchanger made from HRS35 copper alloy, providing excellent resistance to corrosion.

Product Information

Standard Information

• Manufacturer: Takagi
• Type: Indoor, Ultra Low Nox

Technical Specifications

• Fuel Type: Natural Gas
• BTU Rating: 15000 - 160000 BTU/HR
• Voltage Rating: 120 VAC
• Material: Copper and Stainless Steel Heat Exchanger
• Energy Factor: 0.95
• Flow Rate: 6.6 GPM
• Ignition Type: Electronic
• Maximum Pressure: 15 - 150 PSI
• Gas Inlet Pressure: 5 - 10.5 IN W.C
• Gas Connection: 3/4 IN NPT
• Water Connection: 3/4 IN NPT
• Vent Size: 4 IN
• Vent Type: Direct Vent
• Weight: 58.000 LB
• Height: 22-1/2 IN
• Width: 17-3/4 IN
• Depth: 10-3/4 IN
• Industry Standards: AHRI Certified, CSA Design Certified, Energy Star Rated
