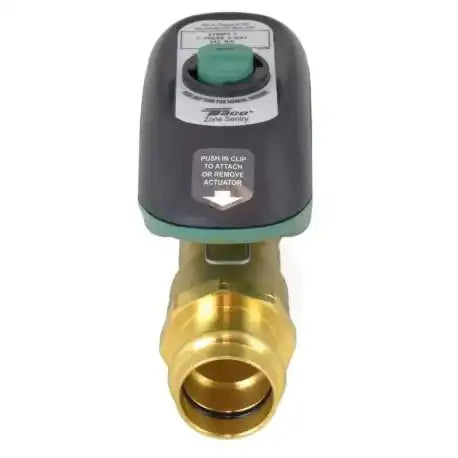

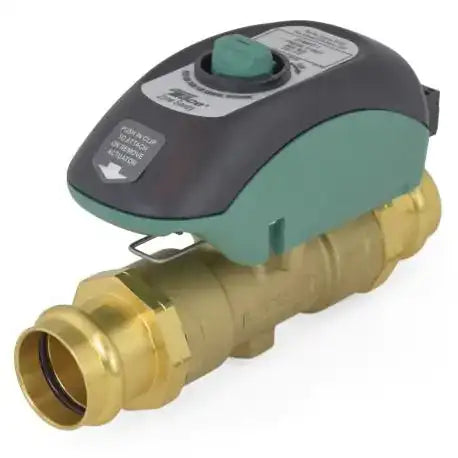

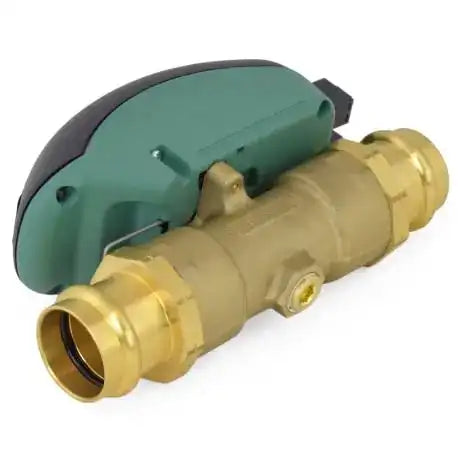

Taco Z100P2-1 Zone Sentry Zone Valve, 1inch Press, Normally Closed

Product Description

The Taco Z100P2-1 is a motorized zone valve that comes with one inch copper press connections. It is suitable for various applications, including radiant heating, baseboard setups, fan coils, heat pumps, air handlers, and convectors. This zone valve allows for installation in any direction, and its actuator can also be mounted in either direction, making it easier to work in tight spaces.

• Efficient and durable for various heating systems
• Quick wiring with terminal block connections
• Manual override feature and LED status indicator

Product Highlights

This valve features a microcircuit-controlled actuator which ensures reliable, low-energy flow control.

Product Information

Standard Information

• Brand: Taco
• MPN: Z100P2-1

Technical Specifications

• Connections: 1 inch Press
• Valve Default Position: Normally Closed
• Max Operating Pressure: 300 psi
• Max Shut Off Pressure: 125 psi
• Max Ambient Temperature: 135 degrees F
• Fluid Temperature Range: 20 - 220 degrees F
• Electrical Rating: 24 VAC, 60 Hz, 0.48 Amps
• Power Consumption (Charging): 11.4W, 0.48 Amps
• Power Consumption (Power On): 1.44W, 0.06 Amps
• End Switch Rating: 1 Amp @ 24 VAC
• Sub Type: Zone Valve
• Amperage Rating: 0.48 A
• Connection Type: Press
• End Style: Closed
• Nominal Size: 1 in
• Material: Brass
• Inlet Size: 1 inch
• Inlet Connection: Press
• Outlet Size: 1 inch
• Outlet Connection: Press
• Valve Motor Voltage: 24
• Unpowered State: Closed
• End Switch: Yes
• Wiring: Terminal Block
• Zone Valve Use: Hot Water
