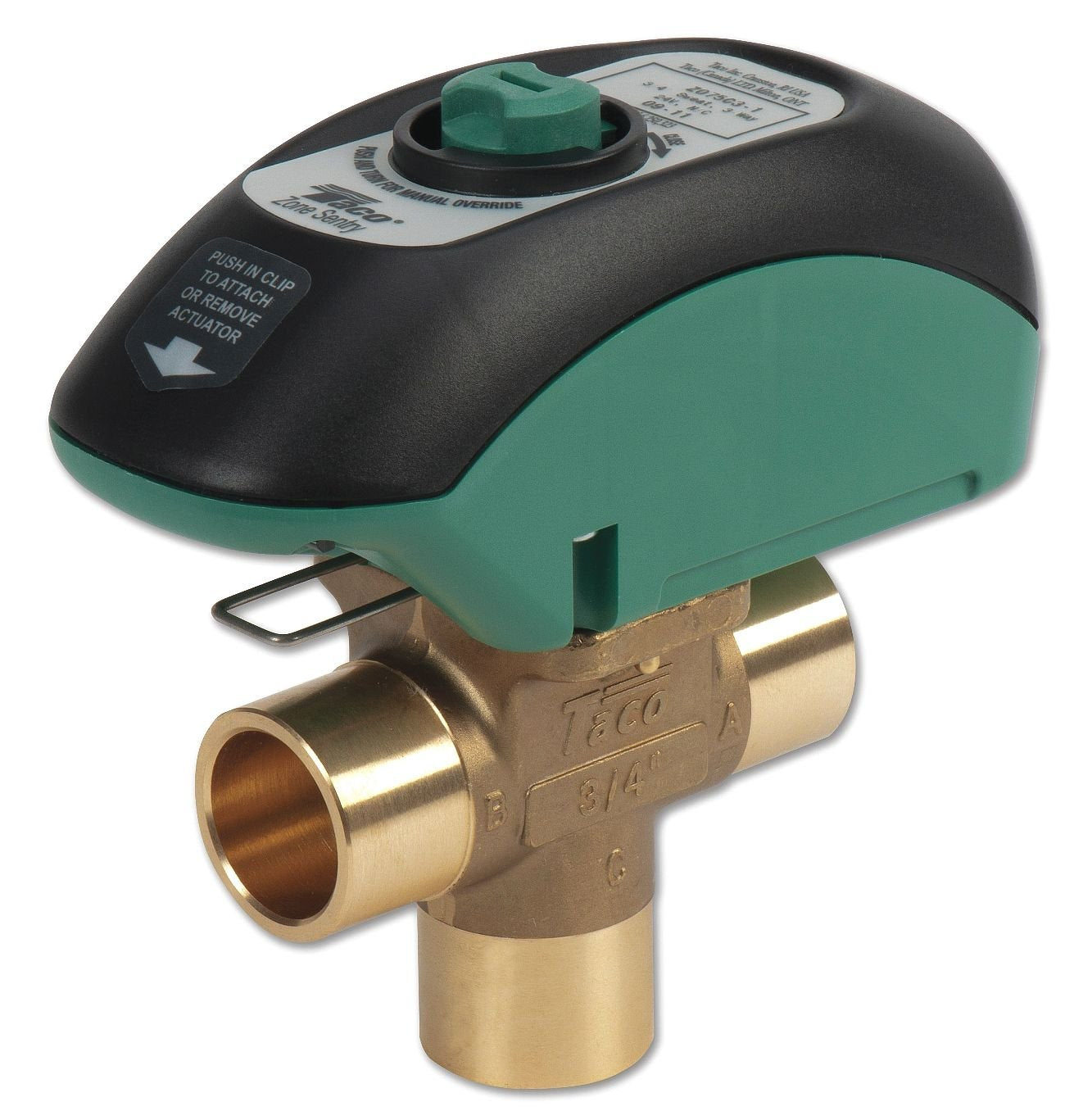

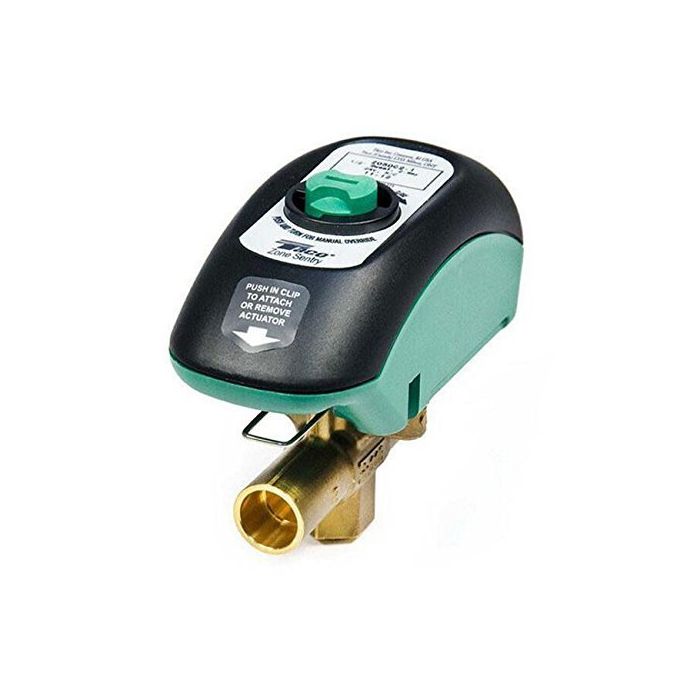

Taco Z100C3-1 Zone Sentry zone valve 24 V (1 inches sweat)

Product Description

Taco Z100C3-1 is a 3-way motorized Zone Sentry zone valve that provides on-off control in closed hydronic heating and chilled water systems. It operates at 24 VAC, 60 Hz with 1" sweat connections and is normally closed by default. The valve includes terminal block or quick-connect wiring, a manual override button, and an LED status indicator, and can be installed in any orientation for various heating and cooling applications.

• Electrical rating: 24 VAC, 60 Hz; power consumption 11.4 W (charging, 0.48 A) and 1.44 W (power on, 0.06 A); end switch rated 1 A @ 24 VAC.
• Mechanical: 3-way motorized valve, 1" sweat connections, normally closed; max operating pressure 300 psi, max shut-off pressure 125 psi.
• Installation and controls: terminal block/quick-connect wiring, reversible actuator orientation for tight spaces, manual override button, multi-function LED positional indicator.

Product Highlights

3-way motorized zone valve, 1" sweat connections, 24 VAC operation, manual override and LED status indicator.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: Z100C3-1
