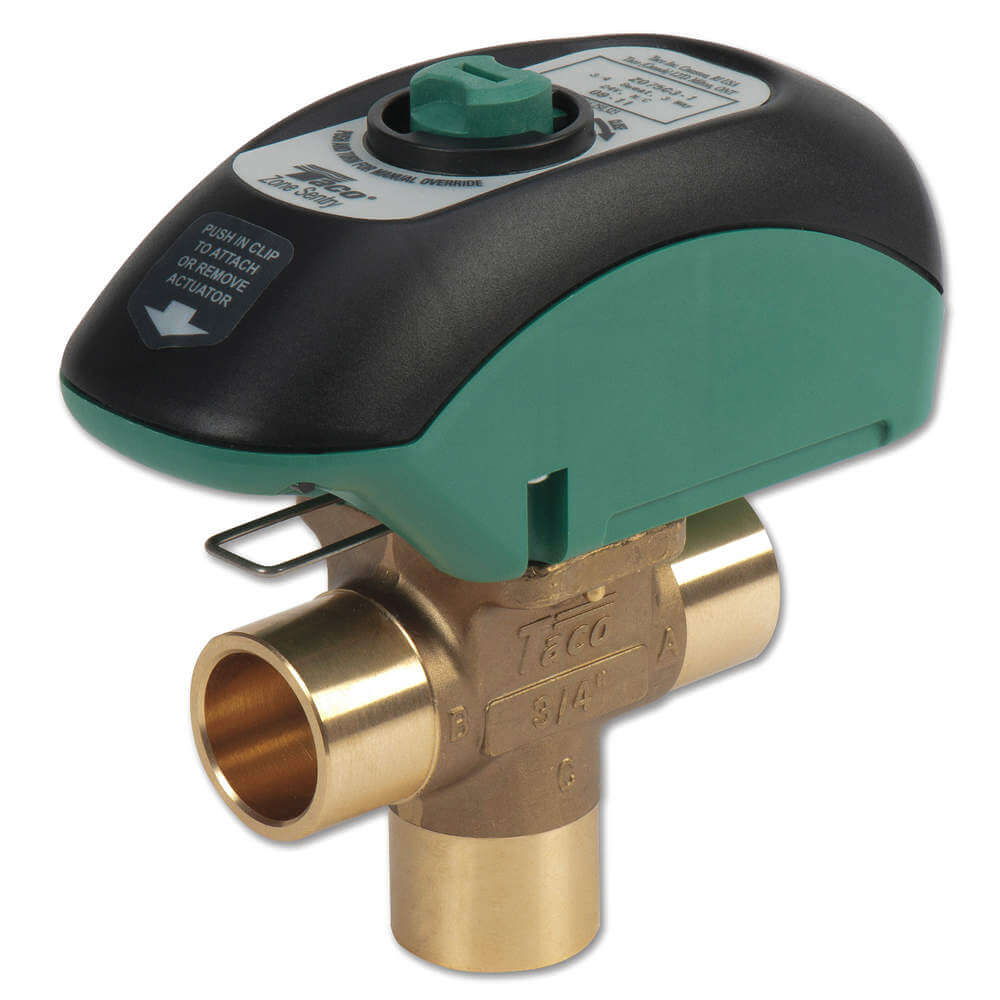

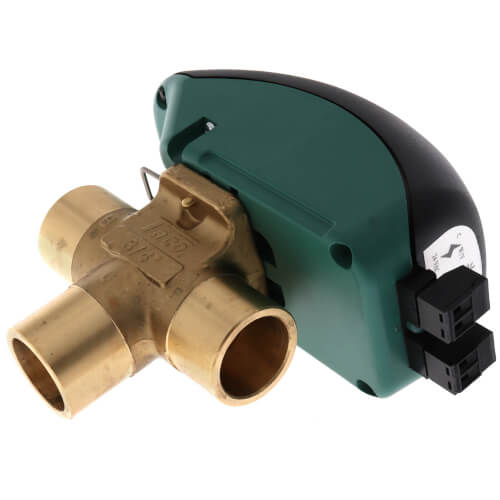

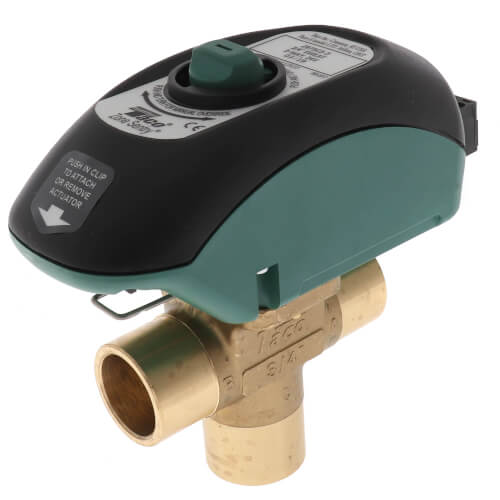

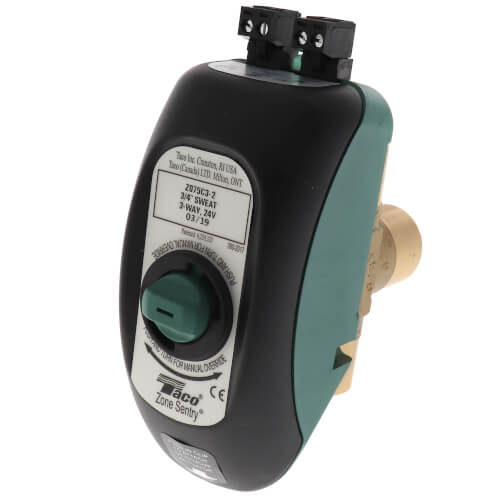

TACO Z075C3-1 Zone Sentry Valve 3-Way 3/4 Sweat Normally Closed

Product Description

The TACO Z075C3-1 Zone Sentry valve is designed for controlling flow in hydronic heating and cooling systems. It is a 3-way valve suitable for fan coils, radiators, convectors, and air handlers. This valve has a three-fourth inch sweat connection and operates in a normally closed position. An LED indicator is included for showing the operational status. A manual override is also available for immediate control.

• 3-way valve configuration
• 3/4 sweat connection type
• Normally closed default position

Product Highlights

This valve works effectively in managing temperature control in residential and commercial settings.

Product Information

Standard Information

• Brand: TACO
• MPN: Z075C3-1

Technical Specifications

• Series: Zone Sentry
• Type: Zone Valve
• Model: Standard 3-Way
• Application: Air Handlers, Baseboard Heaters, Convectors, Fan Coils, Heat Pumps, Radiators, Zoning
• Port Connection Size: 3/4
• Port Connection Type: Sweat
• Valve Action: Normally Closed
• Body Pattern: 3-Way
• Valve Type: Ball
• Input Voltage: 24V AC
• Frequency: 60 Hz
• Power Consumption (charging): 11.4W, 0.48 Amps
• Flow Capacity (Cv): 3.3
• Max Operating Pressure: 300 psi
• Fluid Temperature Range: 20°F to 220°F
• Max Ambient Temperature: 135°F
• Body Material: Brass
• Actuator Type: Electric
• Installation Orientation: Versatile
• Standards: NSF CERTIFIED
• Overall Dimensions: 5 5/16 in. width, 5 3/8 in. length, 2 3/8 in. depth
