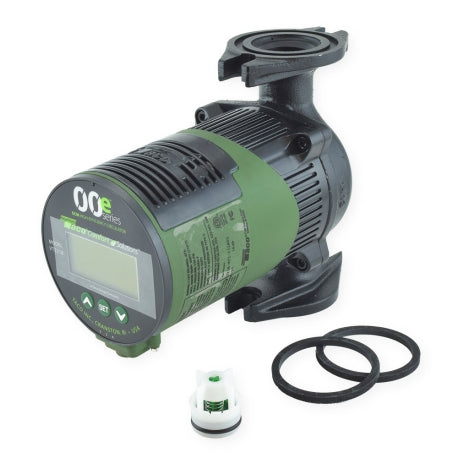

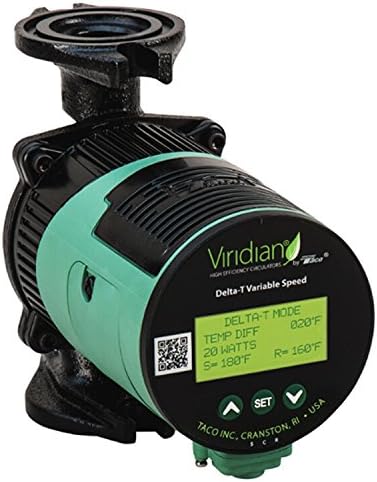

TACO VT2218 Circulator High-Efficiency ECM

Product Description

The TACO VT2218 ECM High-Efficiency Circulator is designed for optimal system performance. This circulator features two temperature sensors for accurate Delta-T readings. The device uses an infinitely variable speed ECM motor, allowing it to operate using up to eighty-five percent less electricity than traditional models. The bright LCD screen provides easy visibility, while the simple push-button navigation ensures straightforward mode selection.

• Innovative BIO BARRIER protects against system contaminants.
• SureStart feature automatically purges air and unblocks the pump.
• Delta-T operation maximizes efficiency and comfort.

Product Highlights

This circulator enhances both efficiency and user experience with its advanced features.

Product Information

Standard Information

• Brand: TACO
• MPN: VT2218

Technical Specifications

• Flow Range: 0-18 GPM
• Head Range: 0-22 ft
• Max. Operating Pressure: 125 PSI
• Min. Water Temp.: 36°F (2°C)
• Max. Water Temp.: 230°F (110°C)
• Voltage: 110-120V
• Max. Watts: 58
• Max. Amp Rating: 0.67
• Operating Power: 9W - 58W
• Amperage: 0.67 A
• Frequency of Rotation: 1650 - 4200 RPM
• Casing: Cast Iron
• Maximum Shut-off Head: 22 ft
• Frequency: 50/60 Hz
• Motor: Single Phase
