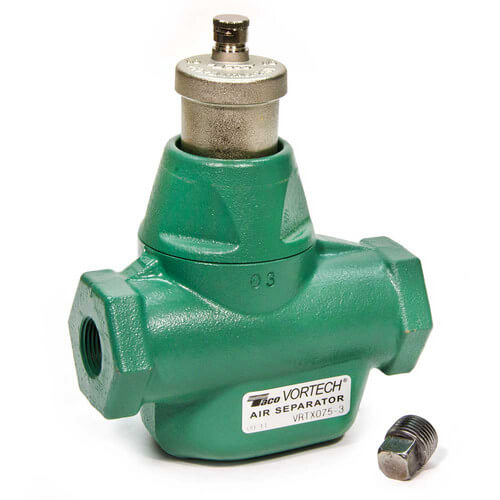

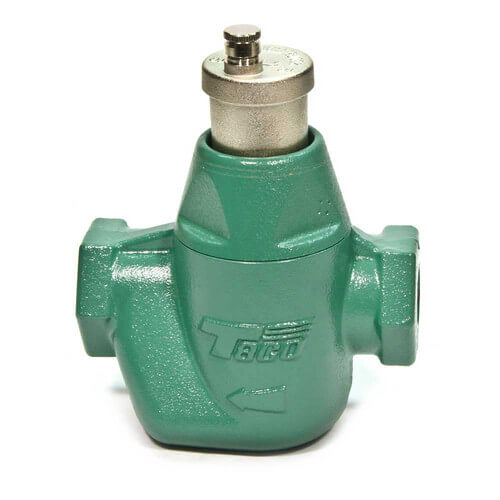

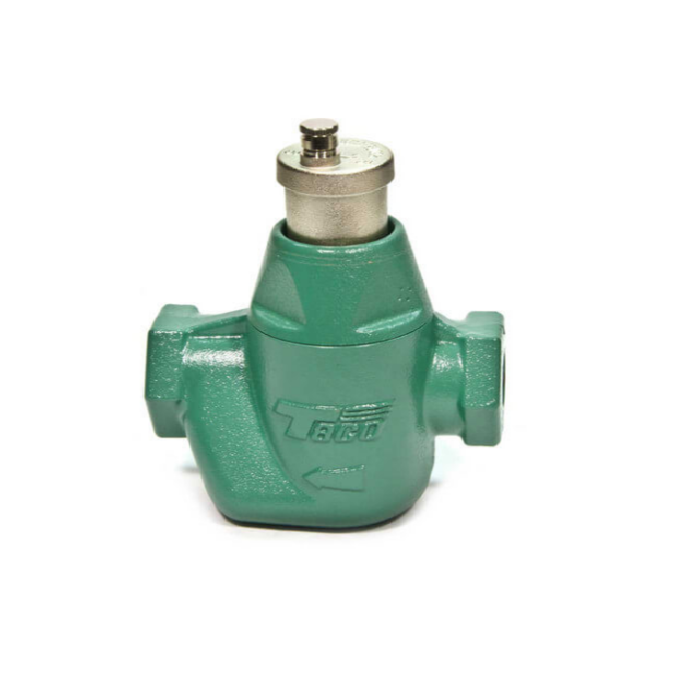

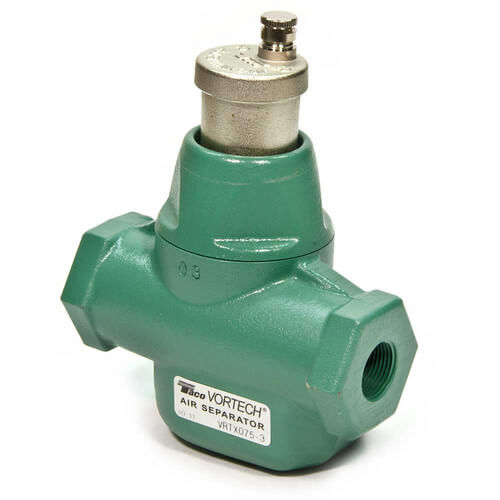

Taco VRTX150-3 Vortech Air Separator - 1-1/2 inches

Product Description

The Taco VRTX150-3 Vortech Air Separator is designed for enhanced air removal in hydronic heating, cooling, or combination systems. Air is efficiently separated and vented through a factory-installed Taco 3/4" Hy-Vent. Features an innovative tangential flow pattern and primary separation chamber for effective and reliable air separation.

• Requires No Minimum Run of Pipe
• Convenient 1/2" Bottom Tapping for Installation of Expansion Tank
• Cast Iron Body and Cap

Product Highlights

The Taco VorTech air separator provides an enhanced level of air removal. It has a cast iron body and cap, stainless steel cartridge and plate, and a viton O-Ring.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: VRTX150-3

Technical Specifications

• Body Type: Cast Iron
• Connection Type: FNPT x FNPT
• Max Pressure (PSI): 150
• Size: 1-1/2"
• Material: Cast Iron
• Application: Heating
• Max Temp (F): 240°F
• Connection Method: Threaded
• Connection Size: 1-1/2
• Maximum Operating Pressure: 125 PSI (862kPa)
• Maximum Operating Temperature: 240 degrees F (115 C)
• Recommended Flow Rate: 4 ft./sec.
• Maximum Flow Rate: 8 ft./sec.
• Manufacturer: Taco
• Part Number: VRTX150-3
