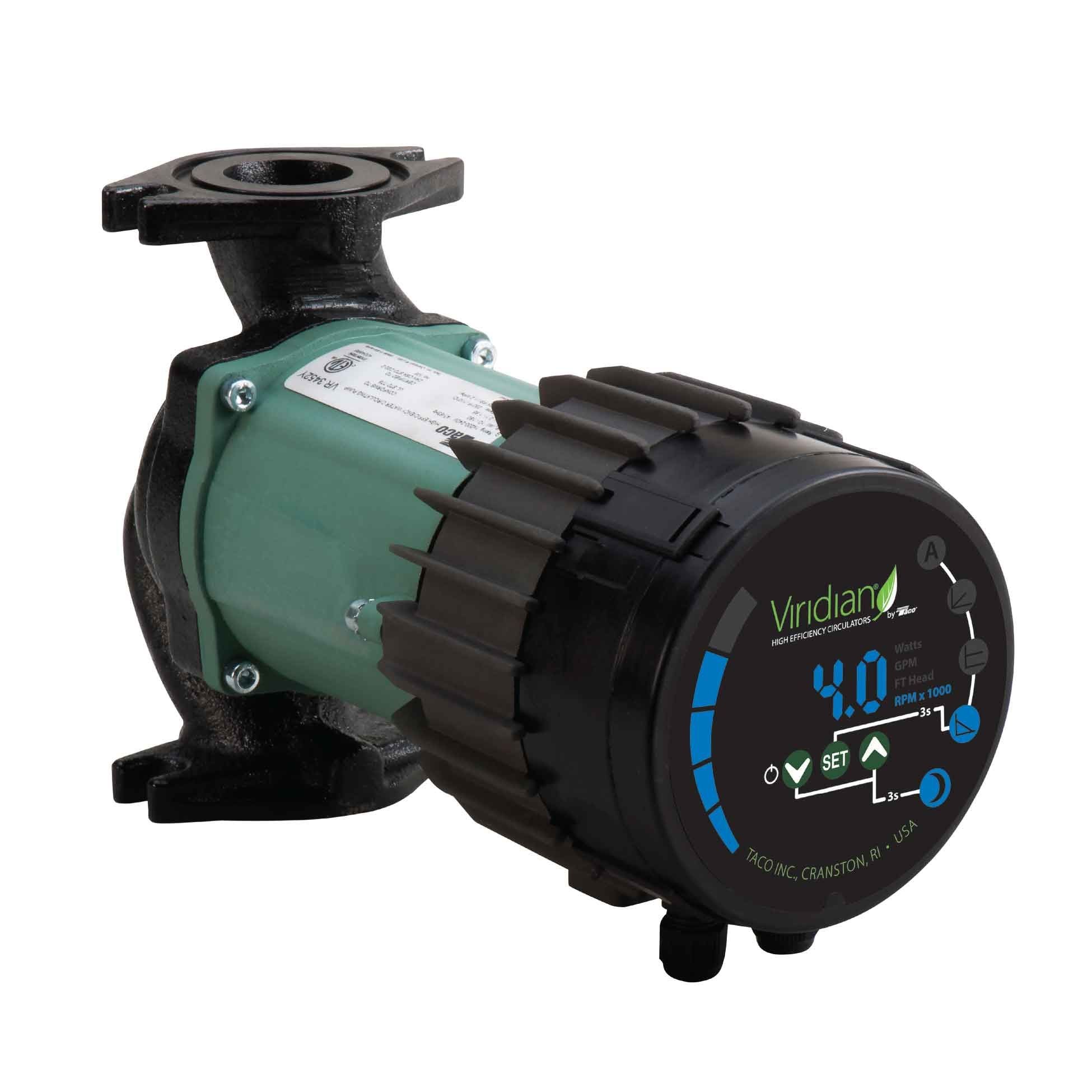

Taco VR3452-HY1-FC1A00 Vr3452 Ecm Circulator 1000-4400

Product Description

The Taco model VR3452 is a self-adjusting, high-efficiency wet-rotor circulator designed for both chilled and hot water applications. Featuring a 115 volt ECM motor, this pump fluctuates between 1/100 and 1/4 HP as needed and supports flanged connections from 3/4 inch up to 1-1/2 inches. Ideal for residential and commercial use, this circulator offers low noise operation and an efficient motor that saves up to 85% energy compared to conventional pumps.

• Brand: Taco
• MPN: VR3452-HY1-FC1A00
• High-efficiency ECM motor

Product Highlights

Designed for chilled and hot water applications, the Taco VR3452 circulator provides a user-friendly interface with various operational modes. The compact size ensures easy handling and installation.

Product Information

Standard Information

• Brand: Taco
• MPN: VR3452-HY1-FC1A00

Technical Specifications

• Taco Series: 00e Series
• Model: VR3452
• Pump Construction: Cast Iron-NFI (Non-Ferrous Imp)
• Pump Type: Circulator
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: 3/4, 1, 1-1/4, 1-1/2
• Pump Connection: Flanged
• Flanges Included: No
• Motor HP: 1/4 HP
• Motor RPM: Variable
• Motor Voltage: 115V
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Motor Enclosure: ODP
• Working Pressure: 145 psi
• Max Temp: 230°F
• Potable Water: No
