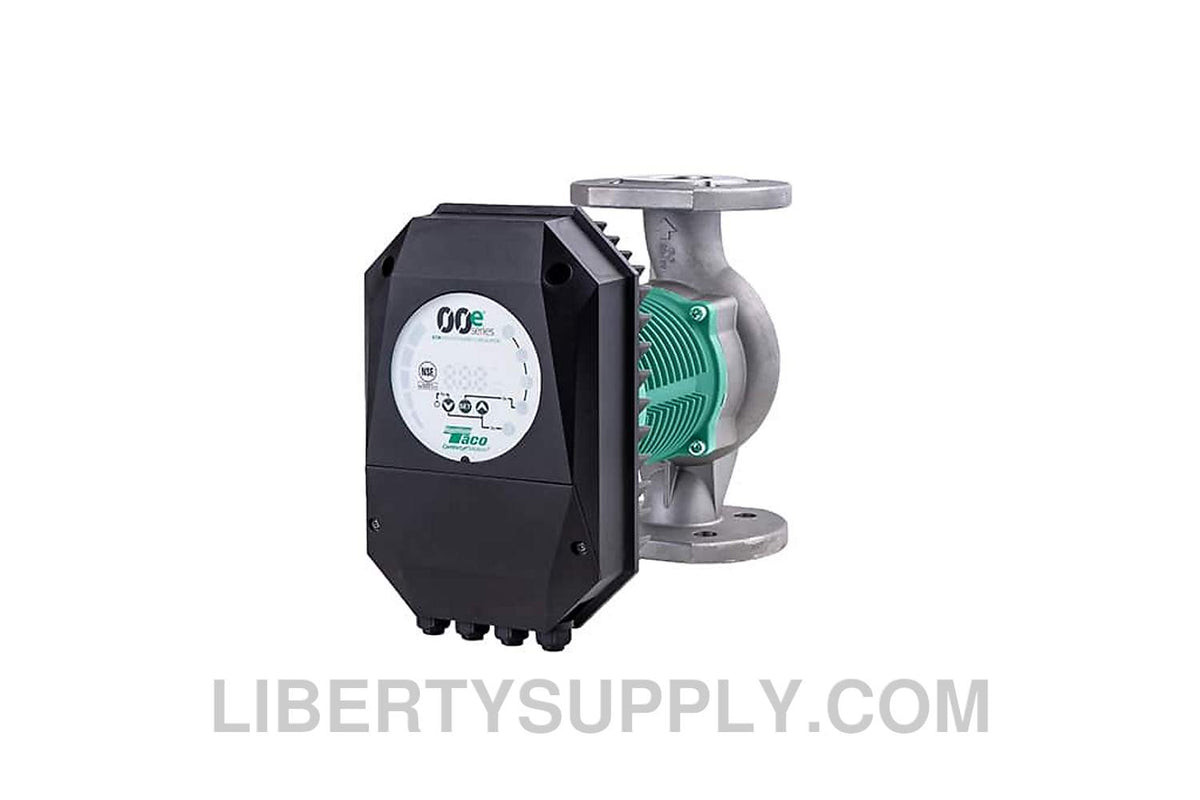

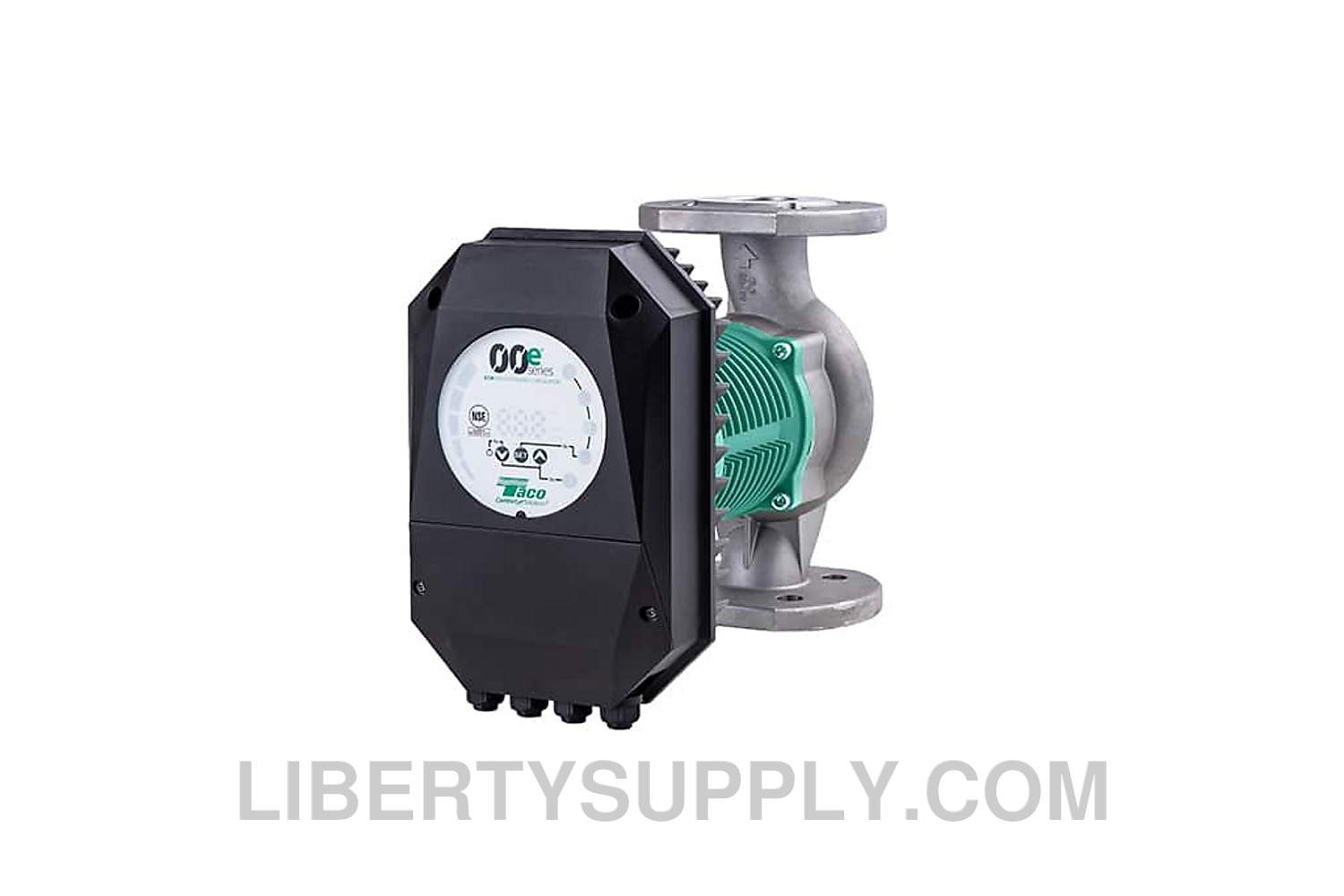

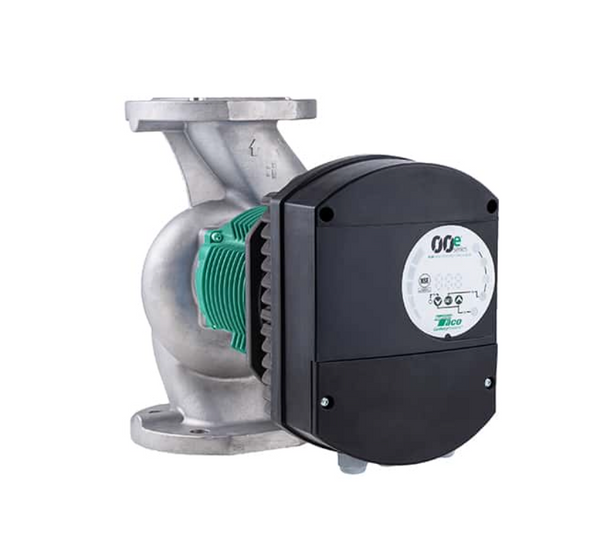

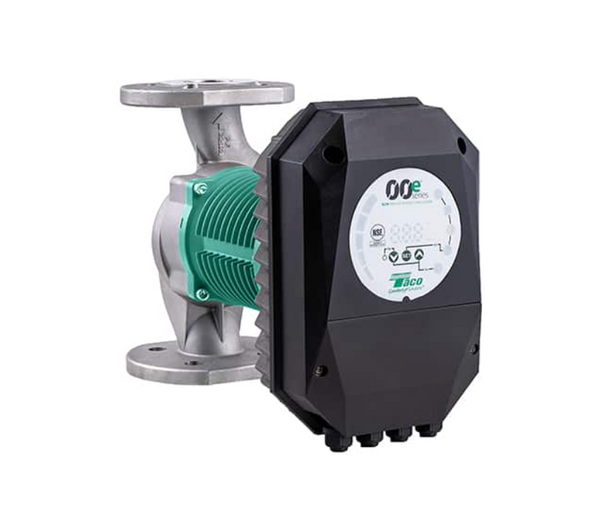

TACO VR30H-SF TACO VR Series Stainless Steel ECM High Head Circulator

Product Description

The TACO VR30H-SF is an advanced ECM high head circulator designed for commercial chilled and hot water systems. This product offers significant energy savings and reliable performance. It operates efficiently with a temperature range of fourteen to two hundred thirty degrees Fahrenheit and an impressive working pressure of one hundred seventy-five psi.

• Equipped with an ECM motor, saving up to eighty-five percent in energy costs.
• Features BMS communication compatibility with Modbus, BACnet, 0-10Vdc, and PWM.
• Versatile for both HVAC and potable water applications.

Product Highlights

This circulator is built with a stainless steel rotating assembly for durability. Its design includes multiple operational modes including constant speed, constant pressure, and proportional pressure.

Product Information

Standard Information

• Brand: TACO
• Manufacturer: TACO

Technical Specifications

• Part Number: VR30H-SF
• Material: Stainless Steel
• Max Shut Off Head: 62 Feet
• Max Flow: 320 USGPM
• Water Temperature Range: 14 to 230 degrees Fahrenheit
• Ambient Temperature Range: 32 to 104 degrees Fahrenheit
• Max Pressure (PSI): 175 psi
• Power Consumption: 2.1 HP, 1550 W
• Voltage: 200-240
• Connection Size: 3 inches
• Connection: Flanged
