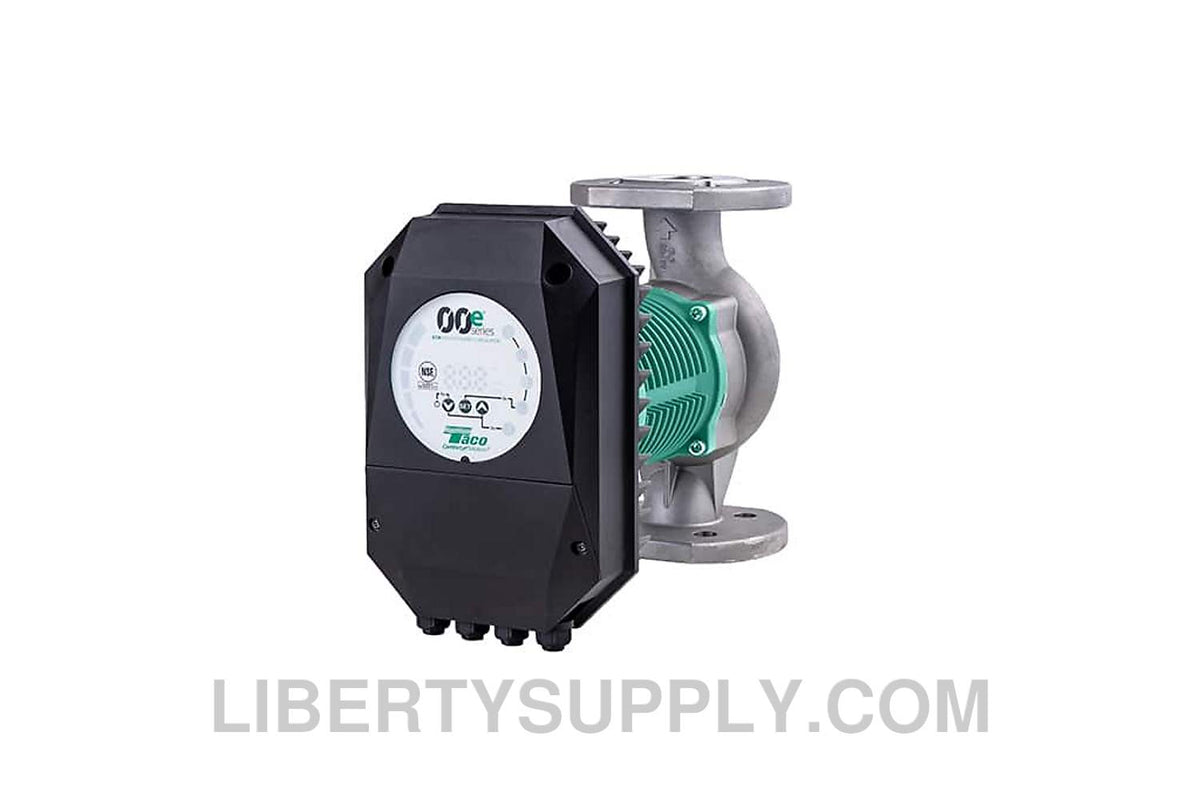

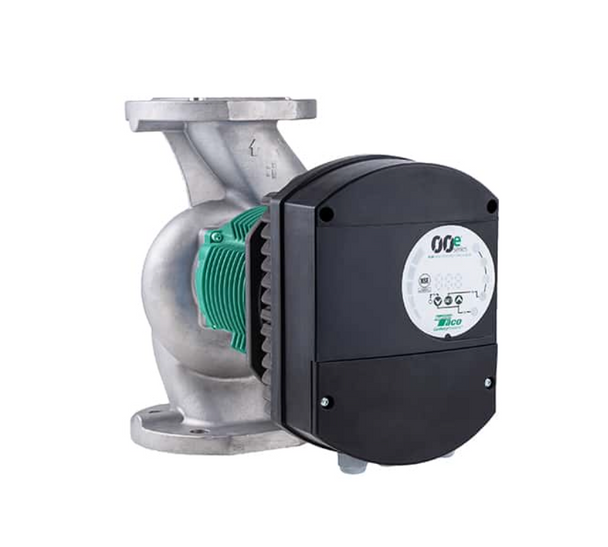

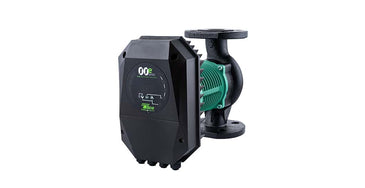

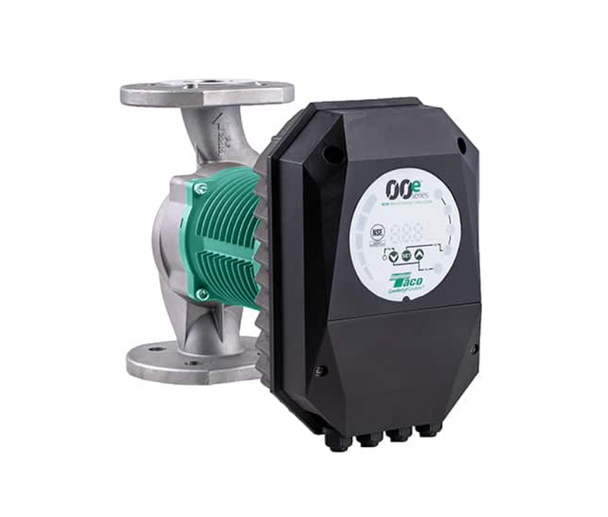

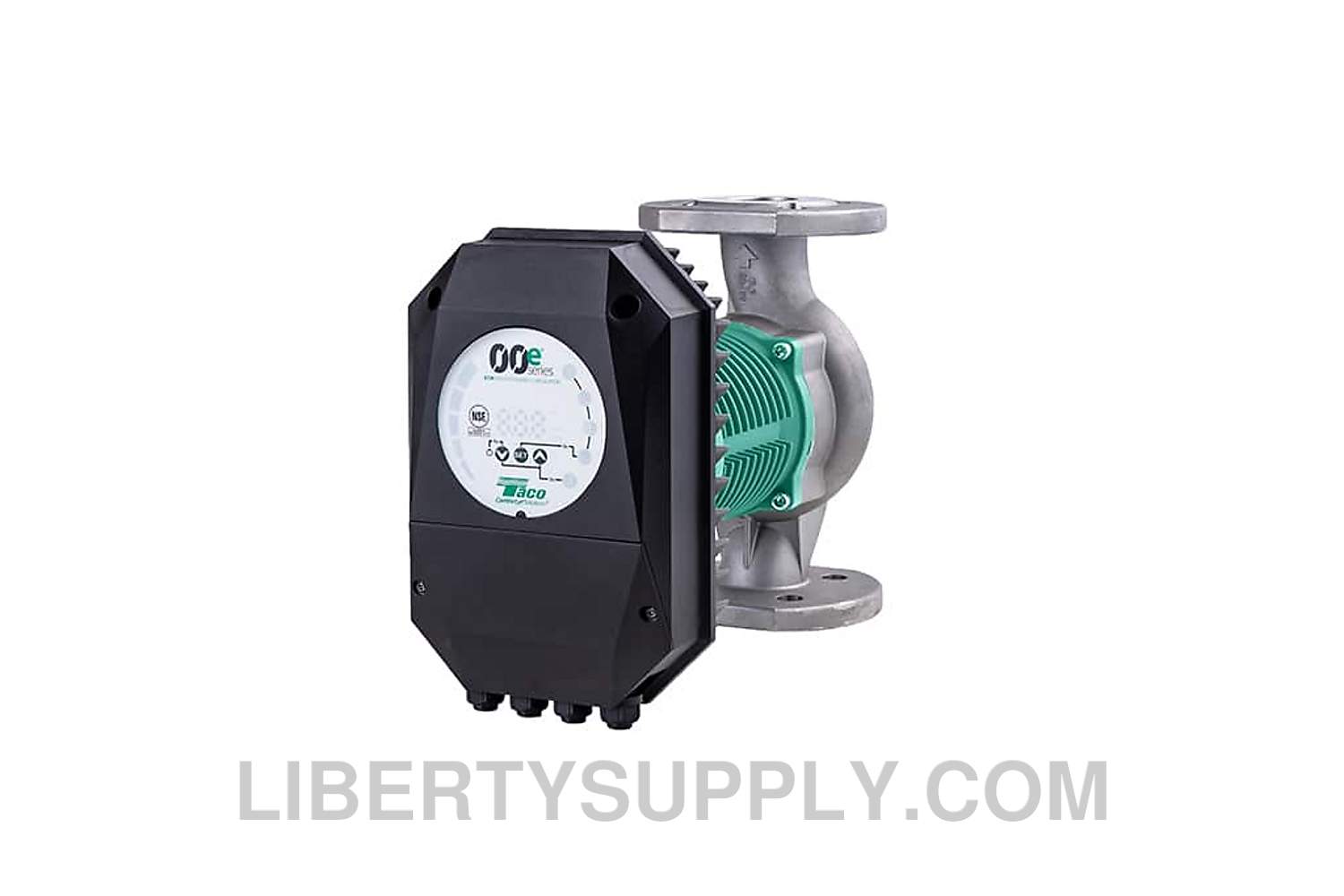

TACO VR25M-SF 00e VR Series Stainless Steel ECM High-Efficiency Circulator

Product Description

The TACO VR25M-SF is a web-enabled circulator designed for both chilled and hot water commercial applications. It includes an ECM motor that provides energy savings of up to eighty-five percent compared to traditional pumps. This unit operates efficiently with fluid temperatures between fourteen and two hundred thirty degrees Fahrenheit.

• Web-enabled for easy installation and service
• ECM motor significantly reduces power consumption
• Applicable for HVAC and potable water systems

Product Highlights

This circulator is ideal for HVAC systems and ensures effective performance in domestic hot water applications.

Product Information

Standard Information

• Brand: Taco
• Manufacturer Part Number: VR25M-SF

Technical Specifications

• Series: Series 00e VR
• Type: Pump
• Material: Stainless Steel
• Maximum Shut Off Head: 39 Feet
• Maximum Flow: 227 USGPM
• Water Temperature Range: 14 to 230°F
• Ambient Temperature Range: 32 to 104°F
• Maximum Pressure: 175 psi
• Power Consumption: 1.1 HP
• Voltage: 200-240V
• Connection Size: 2-1/2 inches
• Connection Type: Flanged
