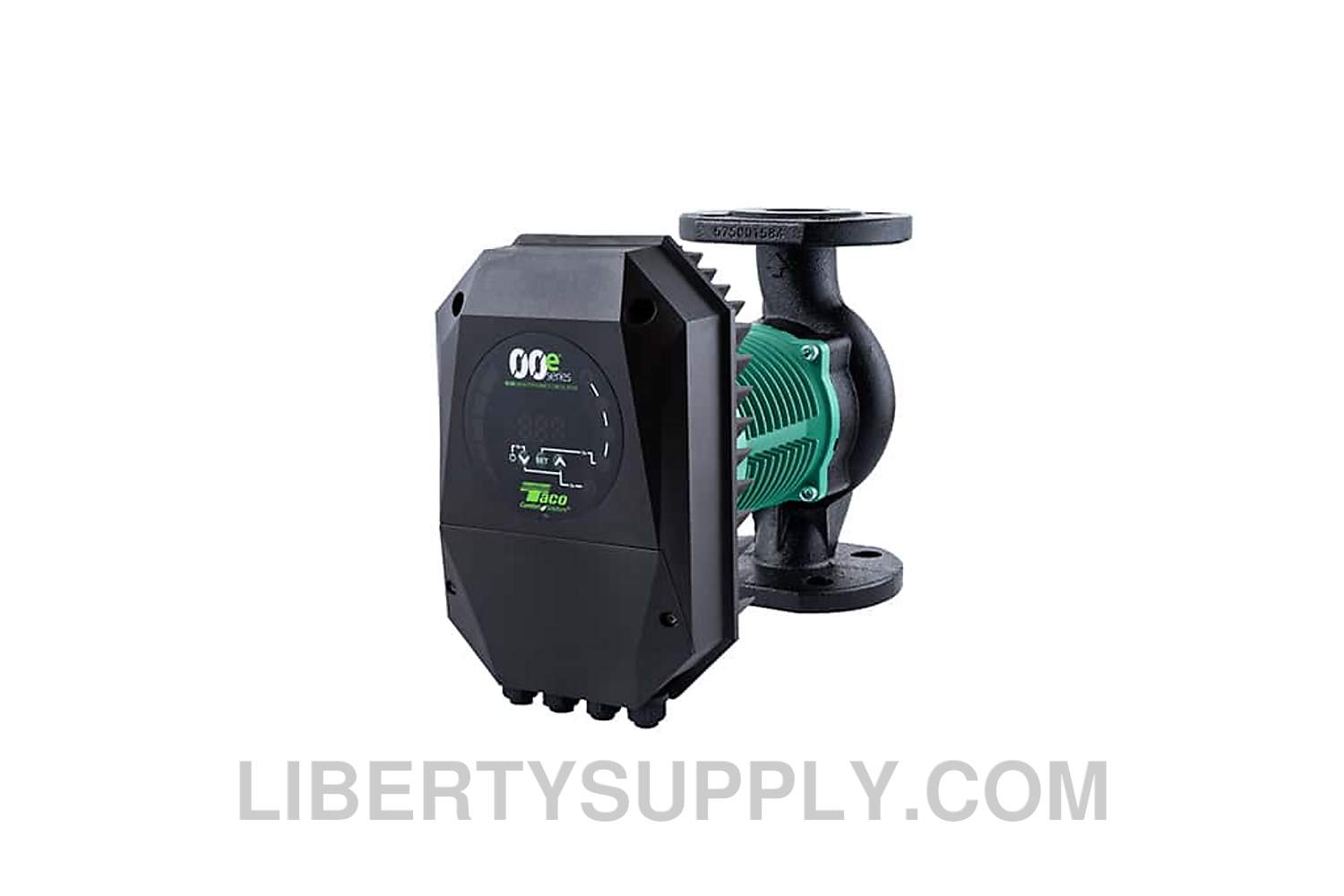

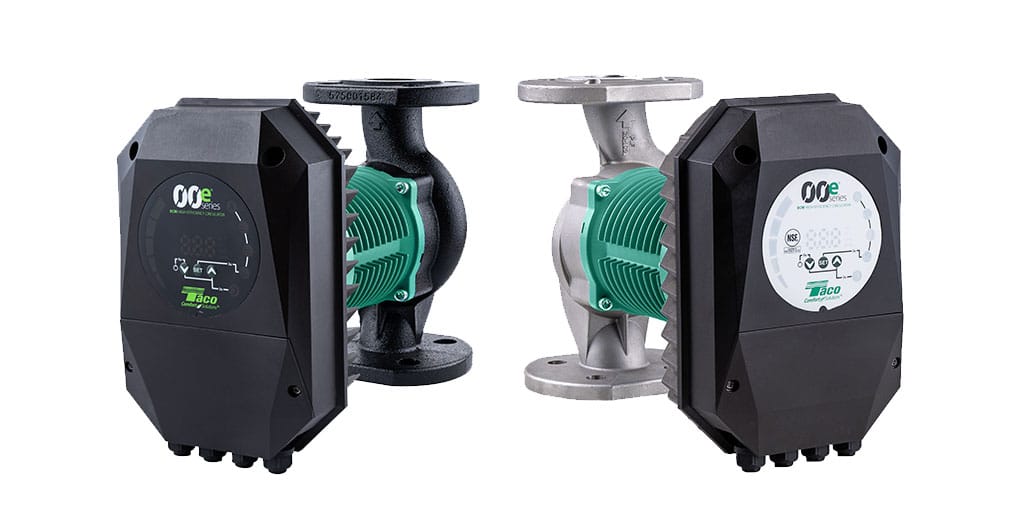

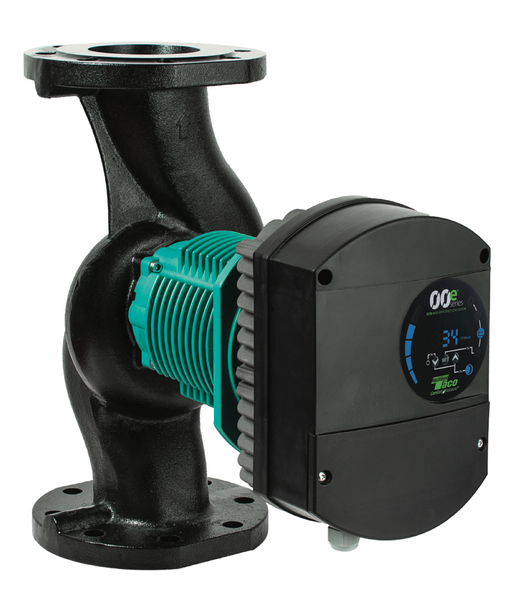

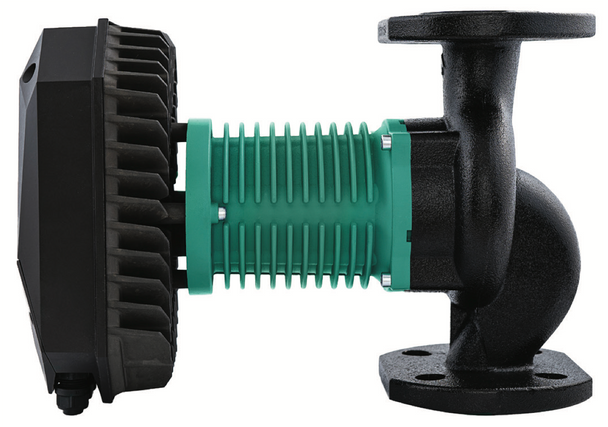

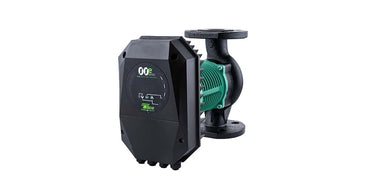

TACO VR25L-F TACO VR Series Cast Iron ECM High-Efficiency Low Head Circulator

Product Description

The TACO VR25L-F is a web-enabled, variable speed circulator designed for commercial chilled and hot water applications. This unit features a durable cast iron volute and a highly efficient ECM motor.

• ECM technology minimizes energy usage.
• Compatible with Modbus, BACnet, 0-10Vdc, and PWM for BMS communication.
• Operates within temperature ranges from fourteen to two hundred thirty degrees Fahrenheit.

Product Highlights

The circulator supports multiple operating modes including constant speed and activeADAPT self-adjusting proportional pressure.

Product Information

Standard Information

• Brand: Taco
• MPN: VR25L-F

Technical Specifications

• Series: Series 00e VR
• Material: Cast Iron
• Maximum Flow Rate: 320 USGPM
• Maximum Shut Off Head: 65 Feet
• Operating Pressure (Maximum): 175 psi
• Water Temperature Range: 14 to 230°F (-10 to 110°C)
• Ambient Temperature Range: 32 to 104°F (0 to 40°C)
• Ambient Humidity: Less than 95% RH
• Power Consumption: 560 W
• Horsepower: 0.8 HP
• Input Voltage: 200-240 V
• 24 Volt Supply Outlet: Max current up to 100mA, Output Voltage +/- 20% of 24 Volts, Output Ripple under 1 Volt
• Connection Size: Two and one-half inches
• Connection Type: Flanged
