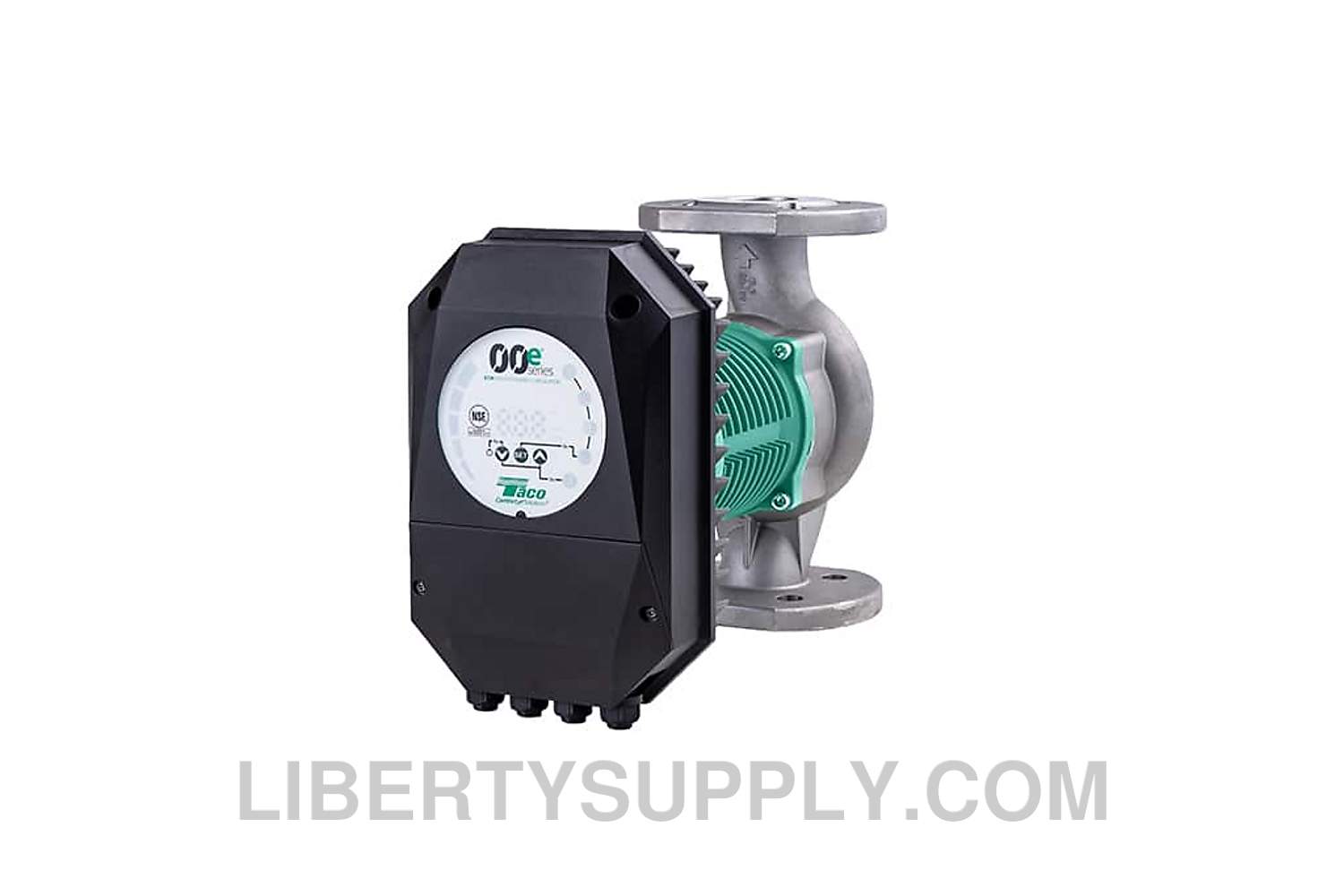

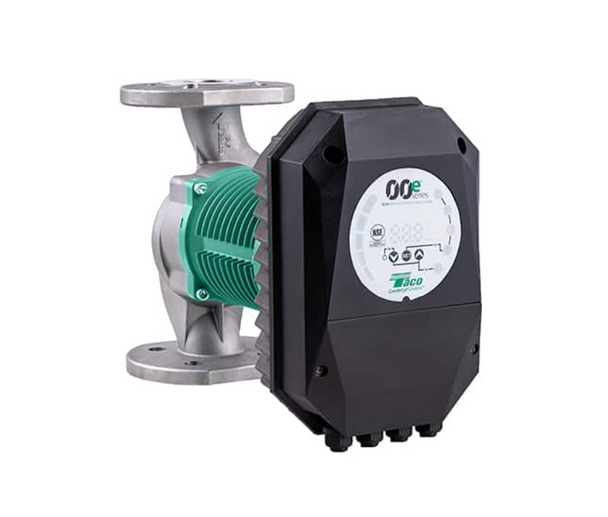

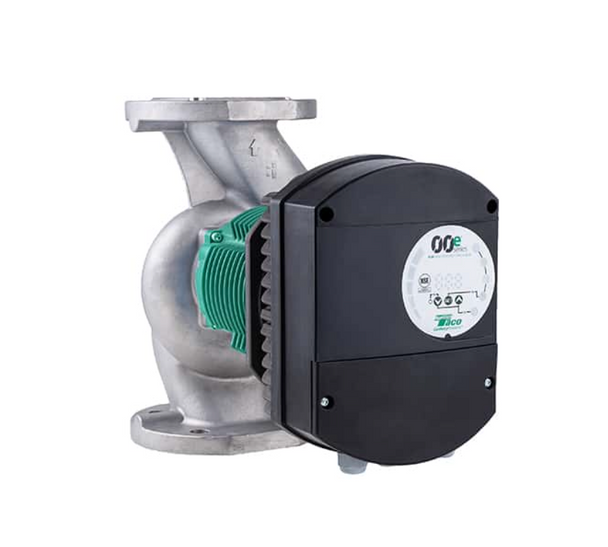

Taco VR25H-SF 00e VR Series ECM High-Efficiency Circulator

Product Description

The Taco VR25H-SF is a stainless steel circulator designed for HVAC and potable water systems. This high-efficiency circulator utilizes ECM technology to reduce power usage. It supports communication with building management systems through Modbus, BACnet, 0-10Vdc, and PWM protocols. The circulator is suitable for various fluids, meeting NSF 61 & 372 standards for safe use in both domestic and commercial hot water installations.

• Efficient ECM technology minimizes energy consumption.
• Compatible with BMS communication protocols.
• Constructed from stainless steel and certified for safety.

Product Highlights

Product Information

Standard Information

• Brand: Taco
• MPN: VR25H-SF

Technical Specifications

• Series: Series 00e VR
• Material: Stainless Steel
• Connection Size: 2-1/2 inches
• Connection: Flanged
• Max Flow: 284 USGPM
• Flow Range: 0-320 GPM
• Max Shut Off Head: 61 Feet
• Head Range: 0-65 feet
• Max Pressure: 175 PSI
• Water Temperature Range: 14 to 230°F (-10 to 110°C)
• Ambient Temperature Range: 32 to 104°F (0 to 40°C)
• Ambient Humidity: Less than 95% RH
• Power Consumption: 2.1 HP, 1550 W
• Voltage: 200-240 Vac
• 24 Volt Supply Outlet: Max current up to 100mA, Output Voltage +/- 20% of 24 Volts, Output Ripple under 1 Volt
