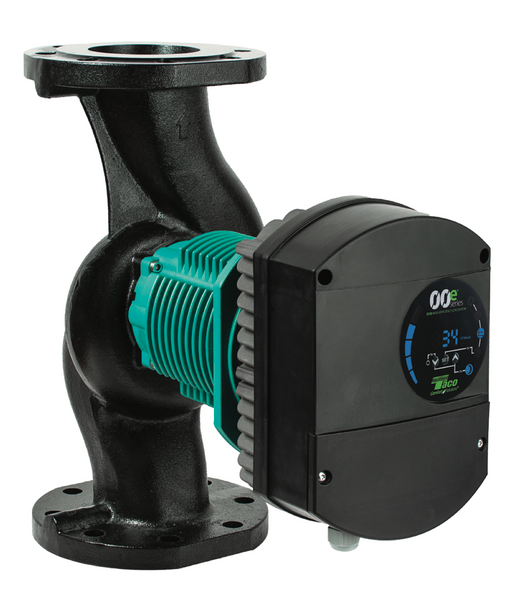

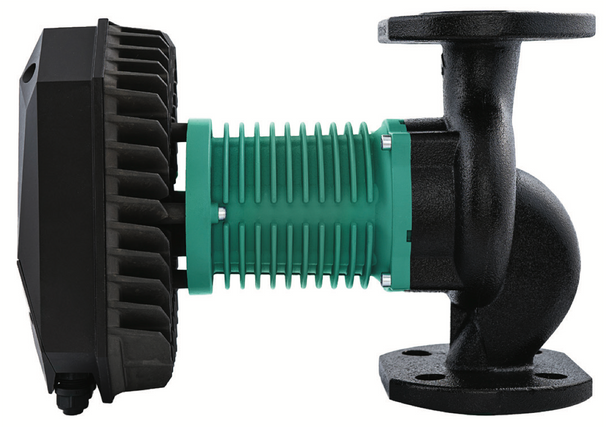

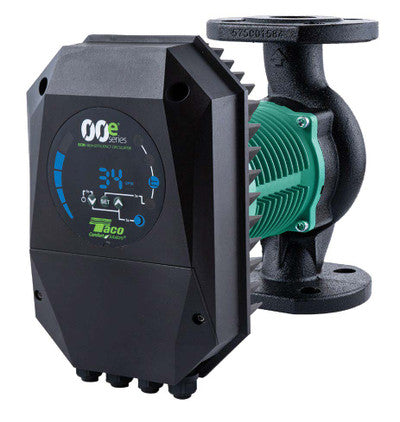

TACO VR25H-F1 00e VR Series Cast Iron ECM High-Efficiency Circulator

Product Description

The TACO VR25H-F1 is a variable speed, wet rotor circulator designed for both chilled and hot water applications in commercial settings. This circulator is equipped with an ECM motor that provides efficiency and reliability.

• Compatible with Building Management Systems (BMS), including Modbus and BACnet
• Operates efficiently within a fluid temperature range of fourteen to two hundred thirty degrees Fahrenheit
• Constructed with a durable stainless steel rotating assembly for extended service life

Product Highlights

Ideal for HVAC and potable water usage, this circulator offers various operating modes, including constant speed and proportional pressure. Its advanced features support efficient control and operation.

Product Information

Standard Information

• Brand: Taco
• MPN: VR25H-F1

Technical Specifications

• Series: Series 00e VR
• Product Type: Circulator Pump
• Pump Body Material: Cast Iron
• Connection Size: 2-1/2 inches
• Connection Type: Flanged
• Maximum Flow Rate: 284 USGPM
• Max Shut Off Head: 61 Feet
• Water Temperature Range: 14 to 230 degrees Fahrenheit
• Maximum Pressure: 175 psi
• Input Voltage: 200/240V
• Power Consumption: 2.1 HP (1550 W)
• UL Listed: Yes
