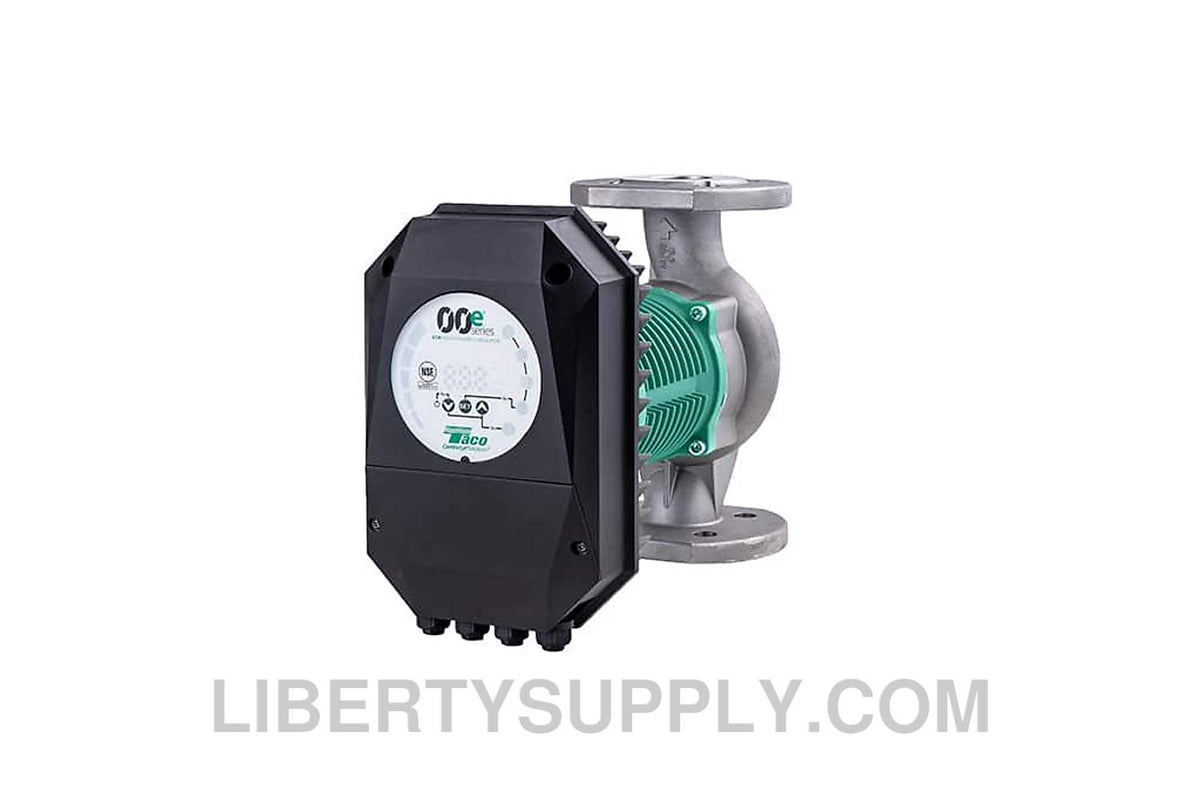

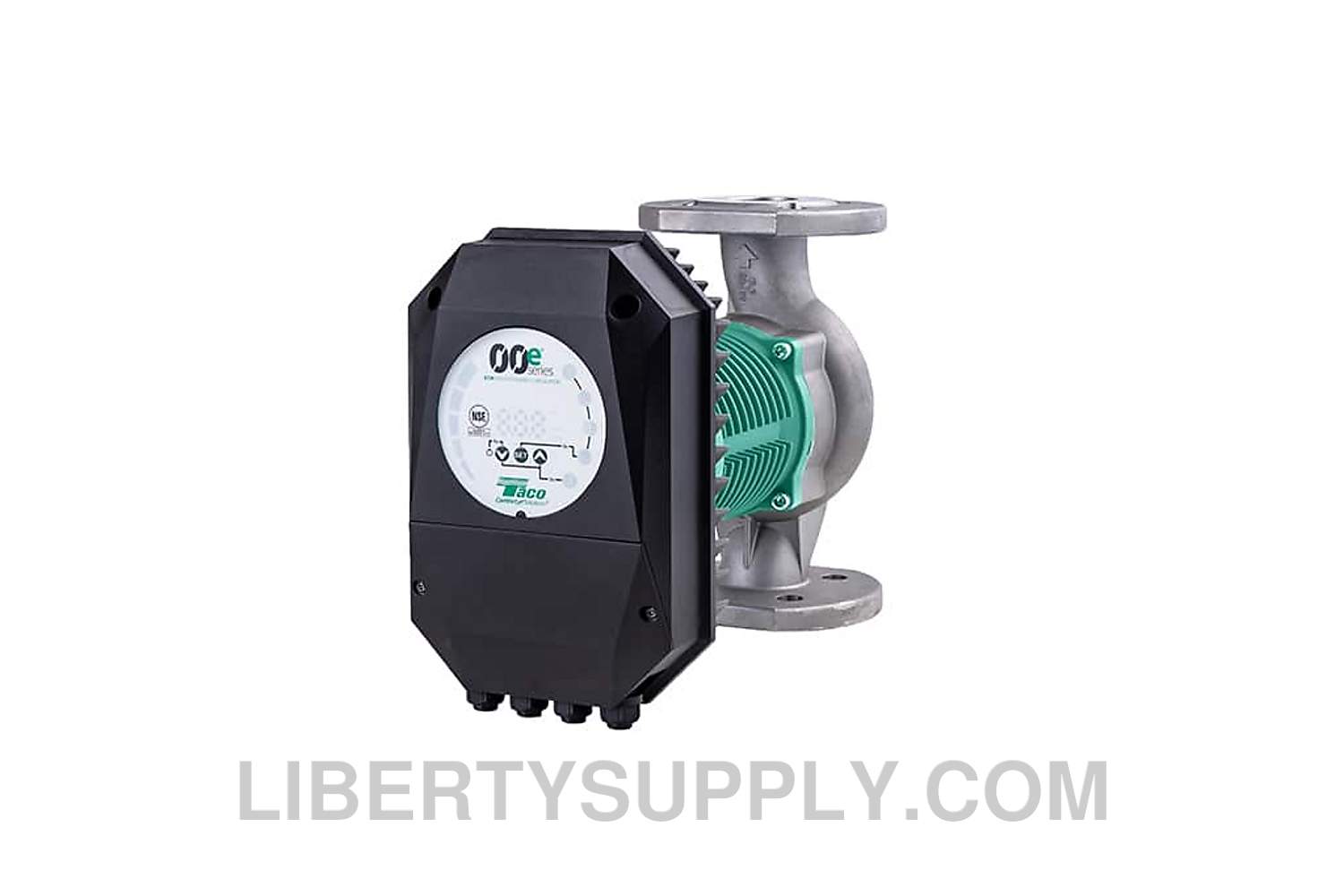

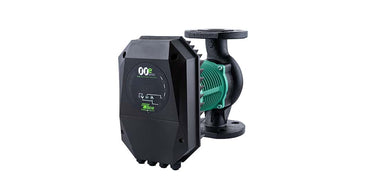

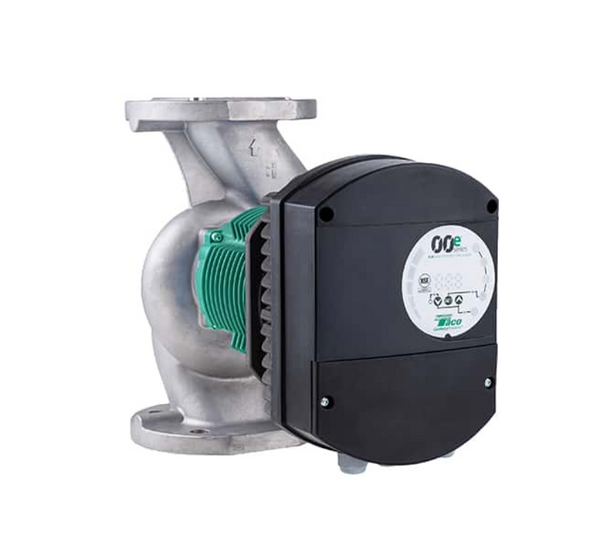

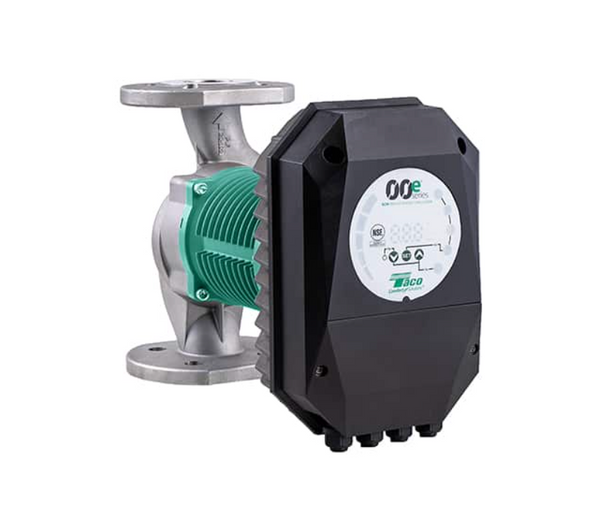

Taco VR20M-SF TACO VR Series Stainless Steel ECM High-Efficiency Medium Head Circulator

Product Description

The Taco VR20M-SF is a variable-speed, wet rotor circulator designed for commercial chilled and hot water applications. This model features an ECM motor that can achieve energy savings of up to eighty-five percent compared to traditional pumps. It is suitable for fluid temperatures ranging from fourteen to two hundred thirty degrees Fahrenheit. The circulator is ideal for HVAC and domestic hot water needs and is NSF 61 & 372 certified for stainless steel models.

• Web-enabled design for remote management.
• Supports BMS communication protocols including Modbus, BACnet, and PWM.
• Includes protection features like dry run, line surge, and current limit.

Product Highlights

This circulator allows for various operational modes, including constant speed and proportional pressure, which can adapt according to system demands.

Product Information

Standard Information

• Brand: Taco
• Manufacturer Part Number: VR20M-SF

Technical Specifications

• Model: VR20M-SF
• Series: Series 00e VR
• Type: Pump
• Material: Stainless Steel
• Maximum Flow: 227 USGPM
• Maximum Shut Off Head: 39 Feet
• Maximum Pressure: 175 psi
• Water Temperature Range: 14 to 230 degrees Fahrenheit
• Ambient Temperature Range: 32 to 104 degrees Fahrenheit
• Ambient Humidity: Less than 95% RH
• Power Consumption: 1.1 HP / 810 W
• Input Voltage: 200-240 Volts
• Connection Size: 2 inches
• Connection Type: Flanged
• 24 Volt Supply Outlet: Max current up to 100mA
