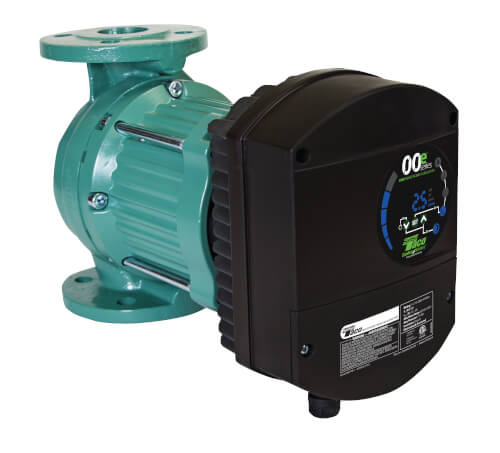

Taco VR20-1 Viridian High Efficiency Circulator 0.035 to 1.088 HP 110-240V 2 inch

Product Description

The TACO VR20-1 Viridian High Efficiency Circulator is a web-enabled, wet rotor, variable speed commercial pump designed for chilled and hot water applications. Featuring an ECM motor, it offers significant energy savings, up to 80% compared to conventional pumps. This 0.035 to 1.088 HP circulator operates on 110-240V, supports a 2 inch flanged connection, and is suitable for commercial use with a maximum operating pressure of 175 PSI and a maximum flow of 235 GPM.

• Operates on 115V or 240V power supplies.
• Variable speed motor with 0.035 to 1.088 horsepower.
• Features a 2 inch flanged x flanged connection.

Product Highlights

Web-enabled, high efficiency, variable speed commercial pump for chilled and hot water systems.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: VR20-1

Technical Specifications

• Max Operating Pressure: 175 PSI (12 bar)
• Water Temperature Range: 14F - 230F (-10 - 104C)
• Ambient Operation Temperature Range: 32F - 104F (0- 40C)
• Application: Commercial
• Type: Pump
• Horsepower: 0.035 to 1.088
• Connection Size: 2"
• Material: Cast Iron
• Amperage: 3.5
• Voltage: 115V, 240V
• Connection Type: Flanged x Flanged
• Max Flow: 235 GPM
• Flow Range: 0-235 GPM
• Max Head: 45.54 Ft
• Head Range: 0-45.54 Ft
• Phase: 1
• RPM: 3000
• Speeds: Variable
