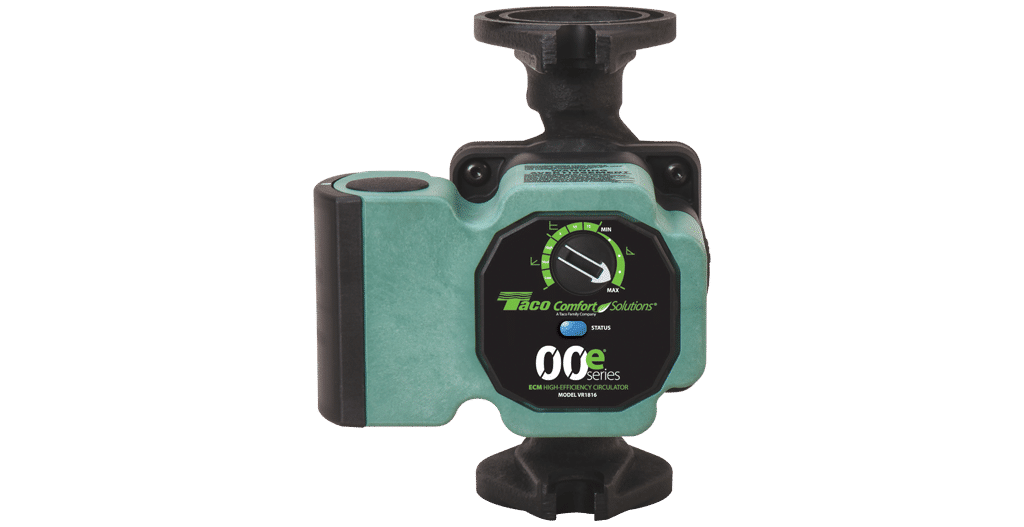

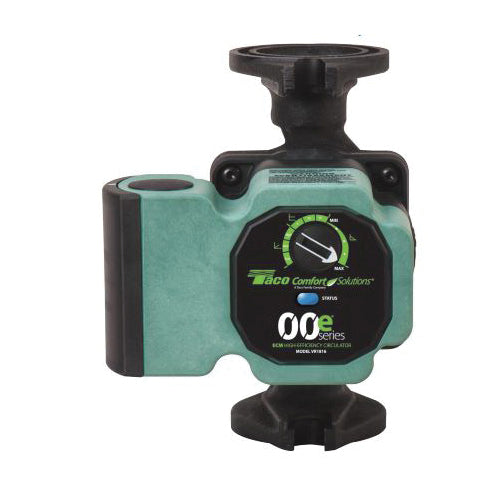

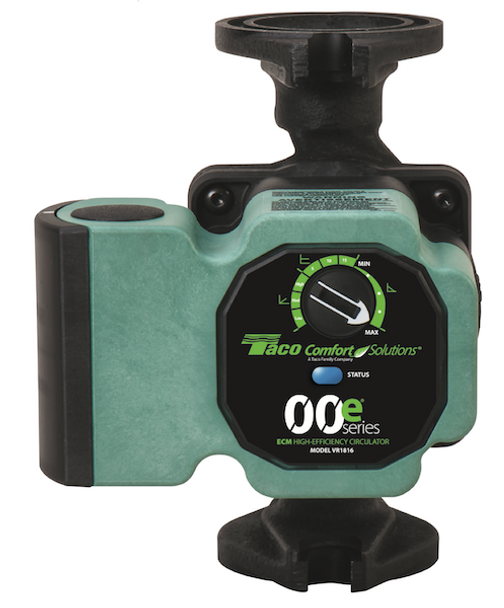

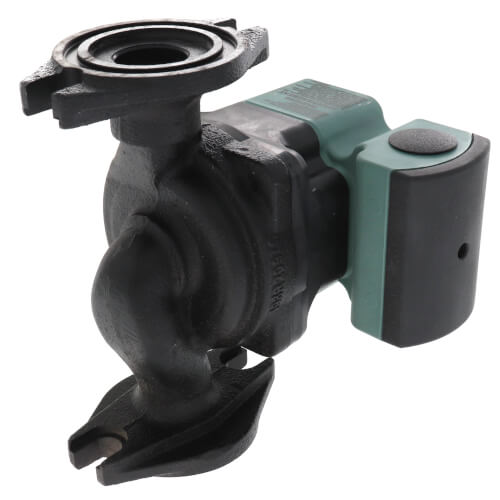

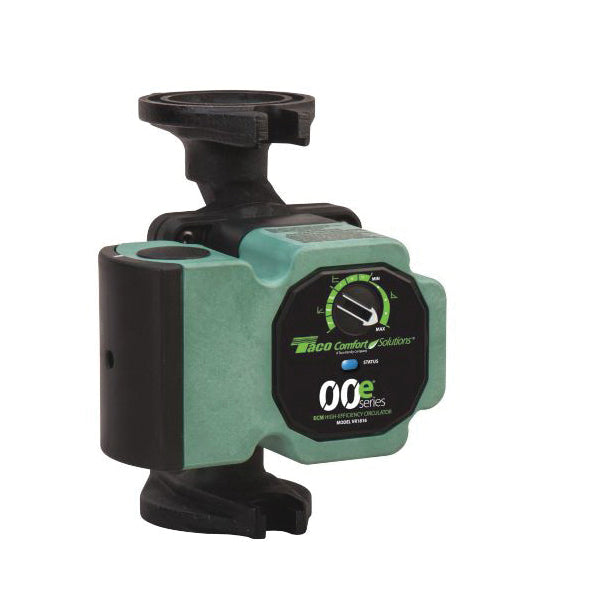

TACO VR1816-HY2 TACO Viridian VR1816-HY2 ECM High Efficiency Circulator

Product Description

The TACO Viridian VR1816-HY2 is an efficient circulator using an ECM permanent magnet motor. It provides flexible speed settings for accurate flow control. This circulator supports different operating modes to meet various system needs.

• Features variable speed ECM technology.
• Supports multiple pressure settings.
• Includes three operating modes: fixed speed, constant pressure, and proportional pressure.

Product Highlights

Designed for easy installation, the TACO Viridian circulator can be integrated with zone valve controls or switching relays for effective on/off operation.

Product Information

Standard Information

• Brand: Taco
• Model: VR1816-HY2-FC2A00

Technical Specifications

• Application: Commercial
• Type: Pump
• Connection Type: Flanged x Flanged
• Connection Size: 2 Bolt Flange
• Material: Cast Iron
• Horse Power: 1/25
• Maximum Pressure: 125 psi
• Maximum Head: 18 ft
• Head Range: 0-18 ft
• Voltage: 120 V
• Frequency: 60 Hz
• Phase: 1 ph
• Maximum Flow: 16 gpm
• Flow Rate: 0-16 gpm
• Power Rating: 44 W
• RPM: 1590 - 4830
• Minimum Water Temperature: 36 °F (2 °C)
• Maximum Water Temperature: 230 °F (110 °C)
• Amperage: 0.54 A
• Dimensions: 6-3/8 in H x 6 in W x 5 in D
• Additional Information: Composite Impeller Material
