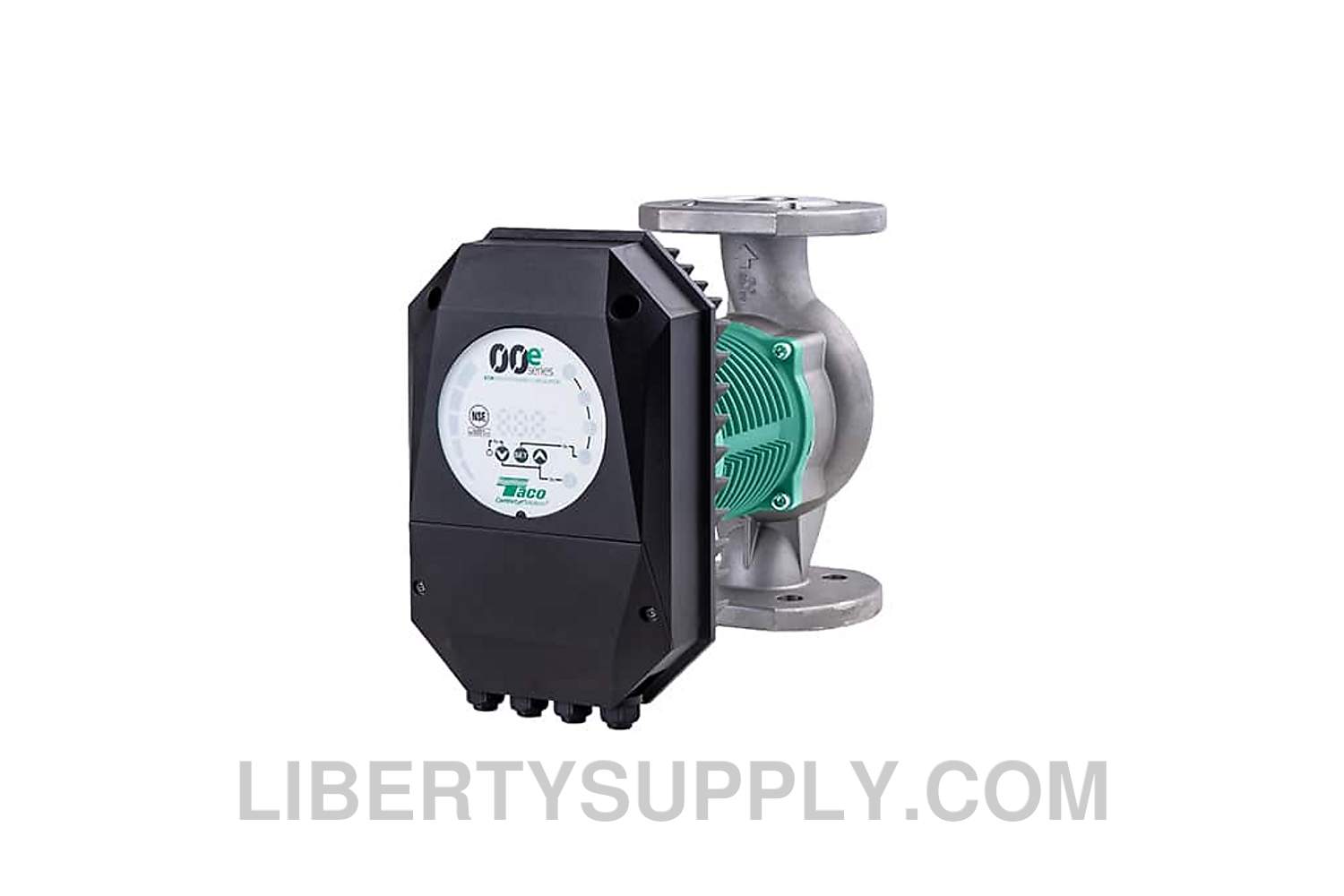

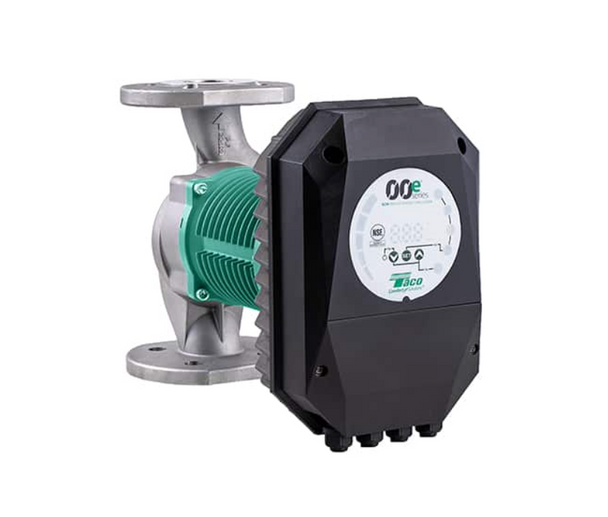

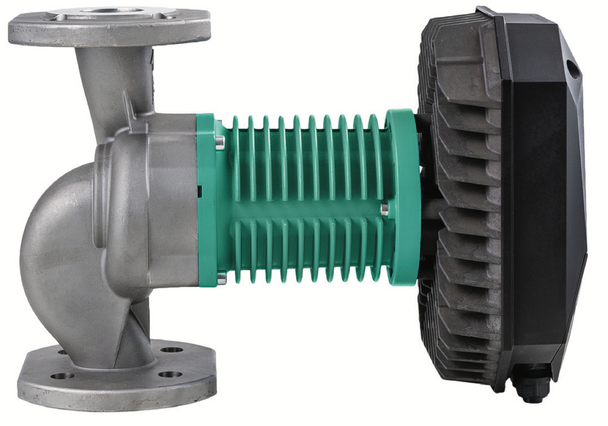

Taco VR15M-SF 00e VR Series ECM High-Efficiency Circulator

Product Description

The Taco VR15M-SF is a web-enabled, variable speed circulator. This circulator is suitable for both commercial chilled and hot water uses. The device features an ECM motor, which lowers energy consumption and offers multiple operating modes.

• Suitable for fluid temperatures from fourteen to two hundred thirty degrees Fahrenheit.
• Compatible with BMS communication systems such as Modbus, BACnet, 0-10Vdc, and PWM.
• Stainless steel construction meets NSF 61 and 372 standards for domestic and commercial hot water applications.

Product Highlights

The Taco VR15M-SF provides high efficiency with reduced power usage and seamless integration into building management systems.

Product Information

Standard Information

• Brand: Taco
• Manufacturer Part Number: VR15M-SF

Technical Specifications

• Series: Series 00e VR
• Type: Pump
• Application: HVAC
• Material: Stainless Steel
• Max Flow: 108 USGPM
• Max Head: 39 Feet
• Power Consumption: 480 W
• Horse Power: 0.6 HP
• Input Voltage: 110-240V
• Connection Size: 1-1/2
• Connection Type: Flanged x Flanged
• Max Pressure: 175 psi
• Max Temperature: 230°F
• Min Temperature: 36°F
• Water Temperature Range: 14 to 230°F (-10 to 110°C)
• Ambient Temperature Range: 32 to 104°F (0 to 40°C)
• Ambient Humidity: Less than 95% RH
• Speeds: Variable
• 24 Volt Supply Outlet: Max current up to 100mA, Output Voltage +/- 20% of 24 Volts, Output Ripple under 1 Volt
