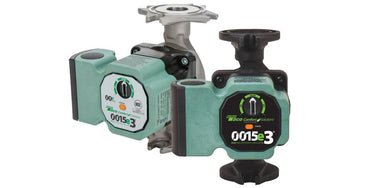

Taco VM1816-HY2-FC2A00 120V Cast Iron Circulator Pump T0015E32F2

Product Description

The Taco VM1816-HY2-FC2A00 is a 120V cast iron circulator pump designed for hydronic heating systems. This model replaces all three-speed hydronic circulators in its class and is intended for closed-loop systems. It is equipped with a variable speed ECM motor that efficiently utilizes electricity.

• Easy-to-use dial with three settings: Low, Medium, and High
• Includes SureStart® automatic unblocking and air purging mode
• Flange nut-grabbers for simpler fit-up

Product Highlights

This circulator pump is ideal for professionals looking for high efficiency and ease of installation. The BIO Barrier® feature protects against system contaminants.

Product Information

Standard Information

• Brand: Taco
• MPN: VM1816-HY2-FC2A00

Technical Specifications

• Type: ECM High-Efficiency Wet Rotor Circulator
• Material: Cast Iron
• Voltage: 120V
• Frequency: 60 Hz
• Pressure Rating: 125 psi
• Dimensions: Standard flange size
• Energy Efficiency: Uses up to 85% less electricity
• Features: Dual electrical knockouts, 6 inch stranded wire leads included
