Taco VM1816-DY2-4S2W00 Circulator ECM 0015e3 4 Bolt Flange Stainless Steel DHW

Product Description

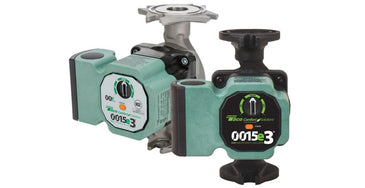

The TACO VM1816-DY2-4S2W00 circulator is an ECM high-efficiency, variable speed, wet rotor circulator with an ECM permanent magnet motor. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. It has three easy settings and delivers 16 GPM flow rate and 18 ft maximum head.

• SureStart automatically purges air and unblocks the pump
• High-efficiency ECM motor uses up to 85% less electricity
• Features three easy settings and dual electrical knock-outs

Product Highlights

The TACO VM1816-DY2-4S2W00 circulator features a stainless steel body, integral flow check, and is double insulated. It operates at 120 VAC, 0.54 A, and 60 Hz.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: VM1816-DY2-4S2W00

Technical Specifications

• Item Number: VM1816-DY2-4S2W00
• Brand: Taco
• Amperage Rating: 0.54 A
• Connection: Flanged
• Material: Stainless Steel
• Max Flow: 16 GPM
• Maximum Head: 18 ft
• Maximum Pressure: 150 psi
• Phase: Single Phase
• Pump Type: Circulator Pump (Variable Speed)
• Series: Series 0015e3
• Type: Pump
• Voltage Rating: 120 VAC
• HP Rating: 1/8 hp
• Frequency Rating: 60 Hz
• Motor Type: ECM, Permanent Magnet, Thermally Protected
• Power Rating: 44 W
• Pressure Rating: 150 psi
• Temperature Rating: 36 to 230 deg F
• Body Material: Stainless Steel
