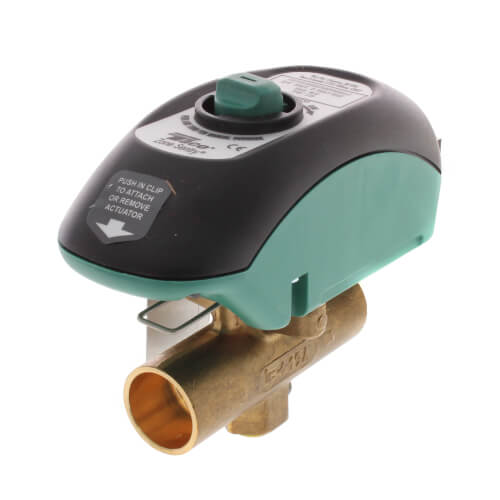

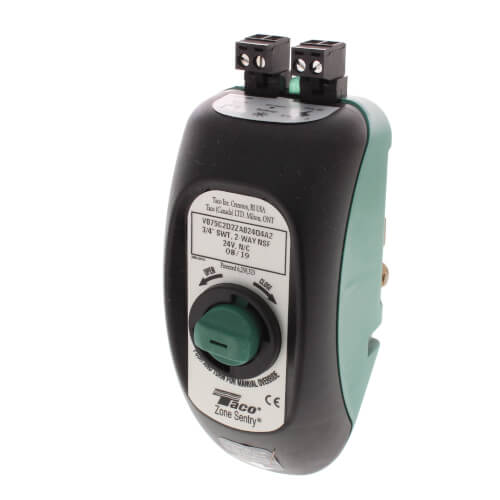

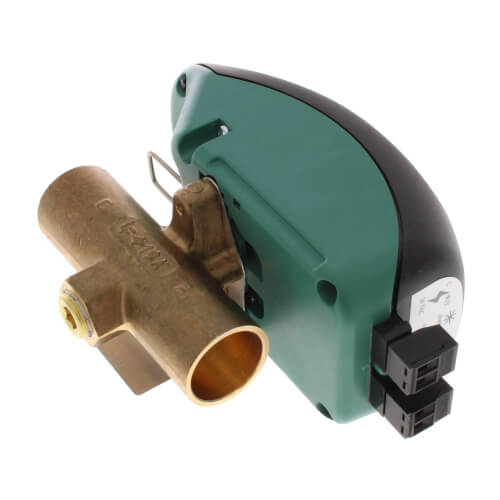

Taco V075C2D2ZA024Q4A2 3/4 Normally Closed Potable Water Zone Sentry Valve (Sweat) V075C2D2ZA024Q4A1

Product Description

The Taco V075C2D2ZA024Q4A2 is a 3/4 inch normally closed potable water zone sentry valve designed for zoning applications. It meets the standards set forth by the U.S. Safe Drinking Water Act. The valve employs innovative microcircuit logic to manage an electronic actuator that operates a ball valve body, ensuring reliable service in potable water systems.

• Certified NSF 61 G for potable water
• Easy to wire with quick connections
• Designed for versatile installation orientations

Product Highlights

This valve is suited for various applications including domestic water systems, hydronic heating, culinary uses, and water shut-off functionalities.

Product Information

Standard Information

• Brand: Taco
• MPN: V075C2D2ZA024Q4A2

Technical Specifications

• Size: 3/4 inches
• Voltage: 24 volts
• Amperage: 0.48 A
• Material: Forged Brass
• Body Pattern: 2-Way
• Max Temperature: 240°F
• Min Temperature: 33°F
• Connection Type: Sweat
• Flow Capacity: 10.3 Cv
• Max Pressure: 300 psi
• Max Close-Off PSI: 125 psi
• End Switch: Yes
