Taco Taco-VR15-1 Viridian High Efficiency Circulator 0.027-0.680 HP 1-1/2 inches Flange

Product Description

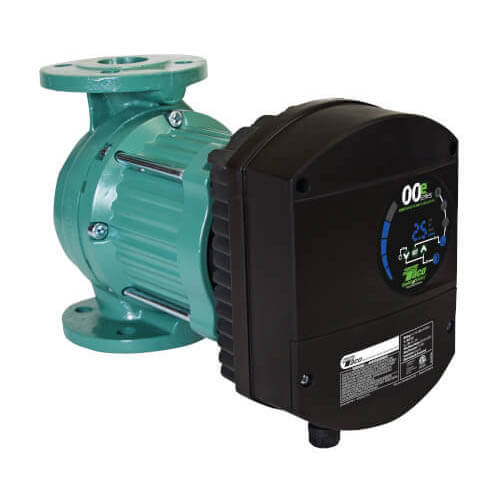

The TACO TACO-VR15-1 Viridian High Efficiency Circulator is a web-enabled, wet rotor, variable speed commercial pump designed for chilled and hot water applications. It features an ECM motor that saves electrical energy and multiple operating modes for versatile application in closed loop heating and cooling systems. This pump handles water or water/glycol mixtures, operating with a maximum pressure of 175 PSI and a water temperature range of 14F to 230F.

• Operates on 115V or 240V power.
• Provides 0.027-0.680 HP for efficient performance.
• Features a flanged x flanged connection for easy installation.

Product Highlights

Web-enabled, high-efficiency, variable speed circulator for commercial chilled and hot water systems.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-VR15-1

Technical Specifications

• Max Operating Pressure: 175 PSI (12 bar)
• Water Temperature Range: 14F - 230F (-10C - 104C)
• Ambient Operating Temperature Range: 32F - 104F (0- 40C)
• Application: Commercial
• Type: Pump
• Horsepower: 0.027-0.680
• Material: Cast Iron
• Amperage: 2.25
• Voltage: 240V, 115V
• Connection Size: 1-1/2"
• Connection Type: Flanged x Flanged
• Flow Range: 0-124 GPM
• Max Flow: 124 GPM
• Max Head: 42.7 Ft
• Head Range: 0-42.7 Ft
• Phase: 1
• RPM: 3000
• Speeds: Variable
