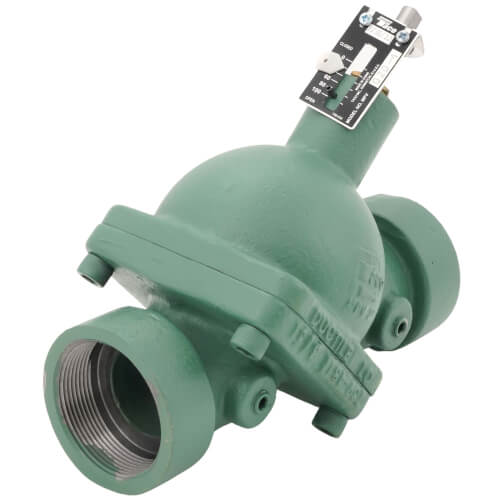

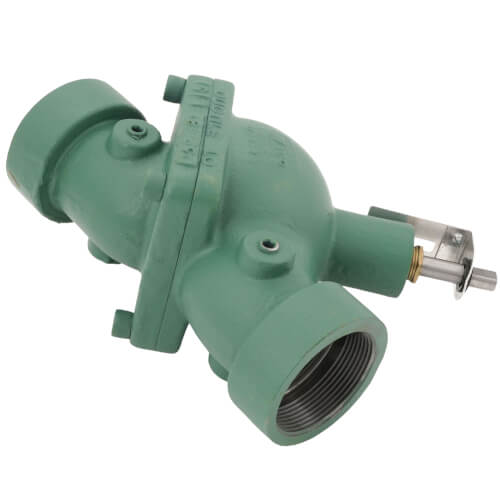

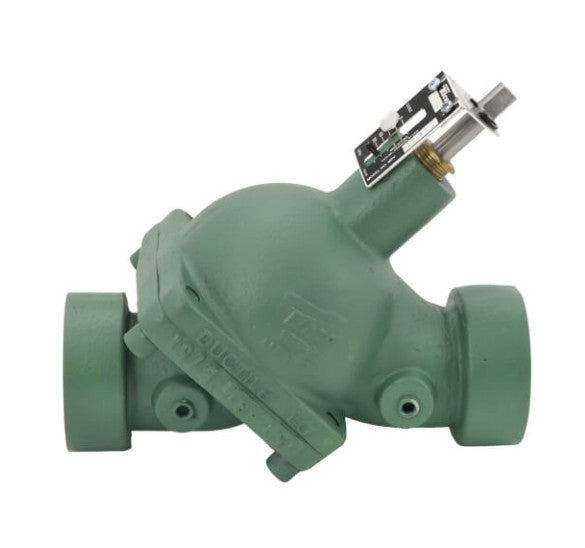

Taco Taco-MPV-020-4 2 inches Threaded Plus Two Multi Purpose Valve (2 inches / 77 Cv) MPV020-4

Product Description

The Taco TACO-MPV-020-4 is a 2" threaded Plus Two multi-purpose valve that combines shut-off, non-slam check, flow control, flow metering, and balancing functions for centrifugal pump discharge in hydronic heating and cooling systems. The valve provides a 77 Cv flow coefficient, FNPT x FNPT threaded connections, and is field convertible from a straight pattern to a 90° right-angle pattern; stem seal packing is replaceable under full system pressure.

• Combines five valve functions: shut-off, globe-style flow control, non-slam check, flow metering, and convertible straight/90° pattern
• 2" nominal size with 77 Cv flow coefficient and threaded FNPT x FNPT connections
• Field convertible to right-angle pattern; stem seal packing replaceable under full system pressure; bronze-fitted construction

Product Highlights

2" multi-purpose threaded valve, 77 Cv, FNPT connections, field convertible to 90°, replaceable stem seal packing

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-MPV-020-4
• Country of Origin: United States

Technical Specifications

• Brand: Taco
• MPN: TACO-MPV-020-4
• Alternate MPN: MPV020-4, MPV-020
• Model: MPV 020-4
• Description: 2" Threaded Plus Two Multi Purpose Valve
• Size: 2 inch (2")
• Flow Coefficient (Cv): 77
• Connection Method: Threaded
• Connection Type: FNPT x FNPT
• Valve Operation: Manual
• Material / Construction: Bronze fitted
• Convertible Pattern: Field convertible from straight to 90° right-angle
• Stem Seal Packing: Replaceable under full system pressure
• Metering Connections: Schrader valve metering connections
• Body Seal: O-ring sealed valve body
• Seat: Replaceable soft seat
• Indicator: Memory indicator with pointer and scale
• Flow Characteristics: Low pressure drop
• Intended Application: Discharge side of centrifugal pumps in hydronic heating or cooling systems
• Country of Origin: United States
