Taco Taco-2400-60S-3P 2400 series stainless steel circulator pump 1/6 HP (single) Taco-2400-60S-3P

Product Description

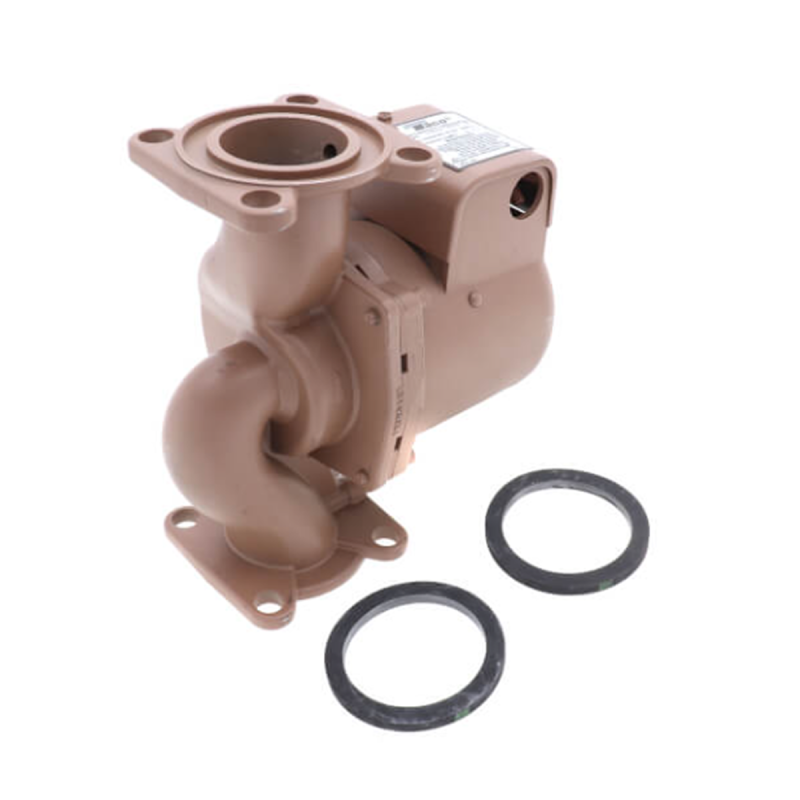

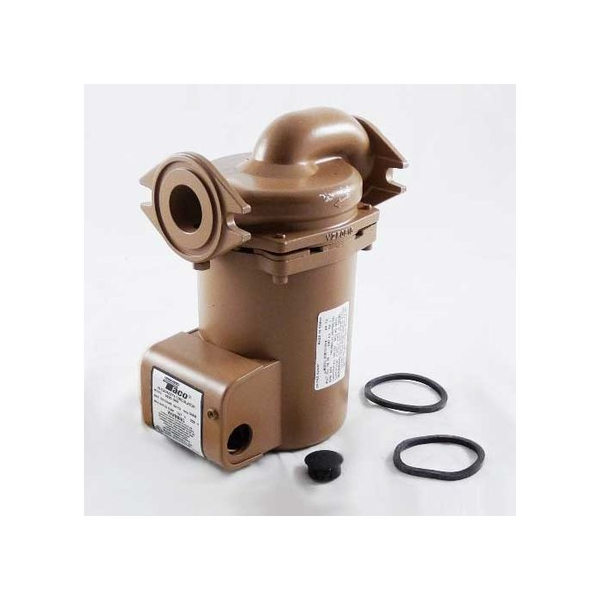

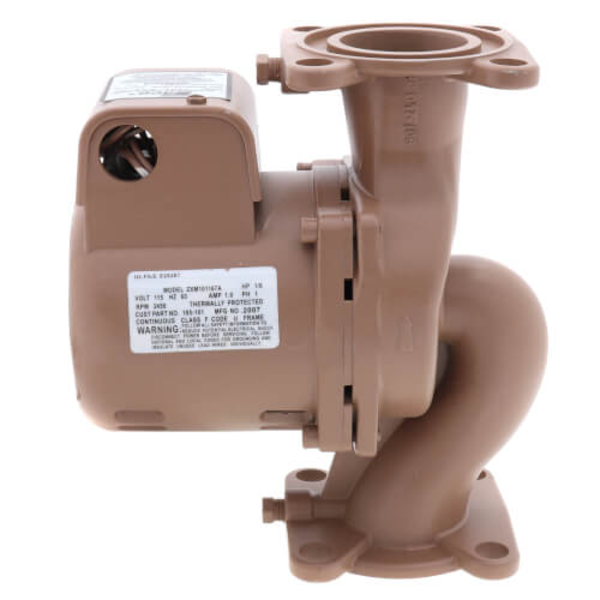

Taco TACO-2400-60S-3P is a stainless steel 2400 Series circulator pump rated 1/6 HP and 115 V for medium to high flow hydronic heating, chilled water cooling, and hot water recirculation. The close-coupled motor uses permanently lubricated, sealed-for-life bearings and a Noryl impeller; a carbon/silicon-carbide mechanical seal provides serviceable durability. Unit features universal flange-to-flange dimensions, dual electrical knock-outs, and dual pressure taps for retrofit and commercial use.

• 1/6 HP, 115 V single-phase motor with permanently lubricated, sealed-for-life bearings and 3450 RPM
• Stainless steel body with Noryl impeller and carbon/silicon-carbide mechanical seal; 1/2" stainless steel shaft
• Universal flange-to-flange dimensions, dual electrical knock-outs, dual pressure taps; max flow 54 GPM, max head 15 ft

Product Highlights

Stainless steel 2400 Series; 1/6 HP, 115 V; Noryl impeller; carbon/silicon-carbide seal; max flow 54 GPM; max head 15 ft

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-2400-60S-3P

Technical Specifications

• Brand: Taco
• MPN: TACO-2400-60S-3P
• Series: 2400
• Material: Stainless steel
• Horsepower: 1/6 HP
• Input Voltage: 115 V
• Phase: Single-phase
• Frequency (Hz): 60
• RPM: 3450
• Max Head: 15 ft
• Max Flow: 54 GPM
• Max Pressure: 150 PSI
• Temperature Range: 40 F - 225 F
• Shaft Material: 1/2" stainless steel
• Impeller Material: Noryl
• Seal Type: Carbon/silicon-carbide mechanical seal
• Bearings: Permanently lubricated, sealed-for-life bearings
• Flange: Universal flange-to-flange dimensions (retrofit friendly)
• Electrical Features: Dual electrical knock-outs
• Pressure Taps: Dual pressure taps (suction/discharge)
• Weight: 19 lbs
• Typical Applications: Hydronic heating, in-floor radiant, snow melt, high pressure-drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops, hydro air fan coils
