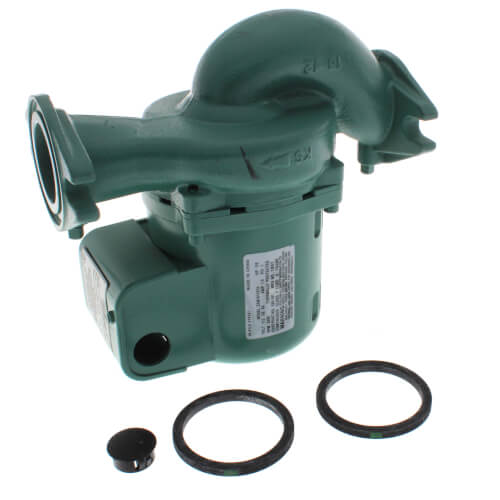

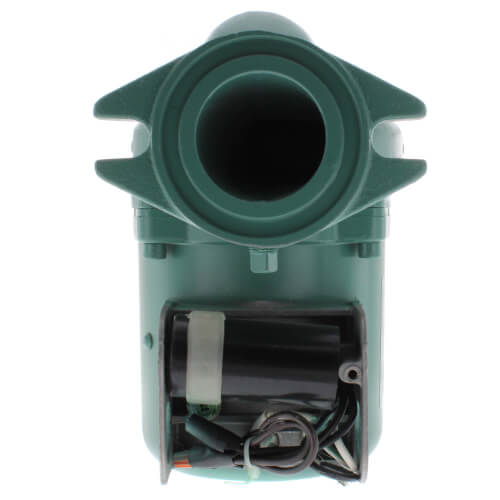

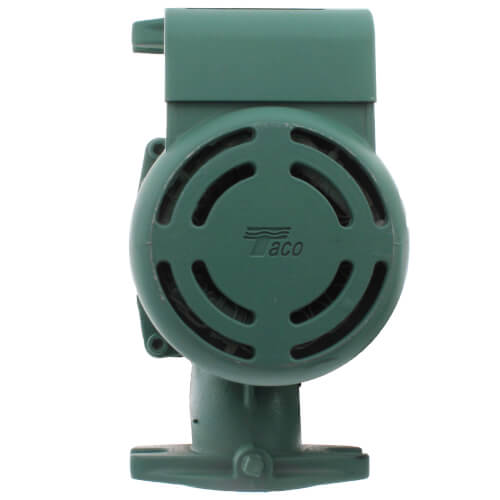

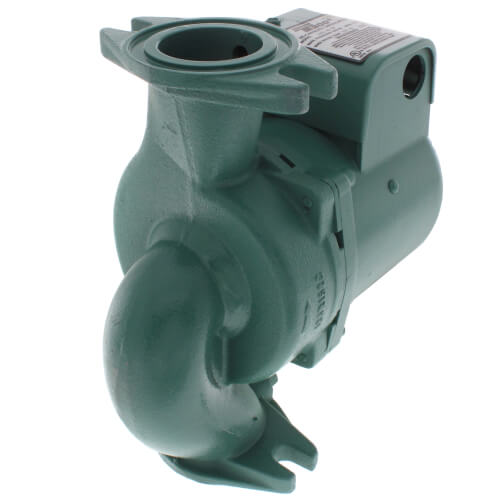

Taco Taco-2400-40-3P Cast Iron 2400 Series Circulator Pump 1/6 HP 1-1/2 Inch

Product Description

The TACO TACO-2400-40-3P is a Cast Iron 2400 Series Circulator Pump designed for efficient operation in medium to high flow/head hydronic heating, chilled water cooling, and hot water recirculation systems. This 1/6 HP pump features a compact, close-coupled design with a durable carbon/silicon-carbide mechanical seal, ensuring reliability. It handles up to 150 PSI max pressure, 32 GPM max flow, and 19 feet max head, operating at 115V, 1.9 Amps, 60 Hz, 1 Phase, and 3450 RPM. Its 1-1/2 inch flanged connections make it suitable for various residential and commercial applications.

• Compact, space saving design for versatile installation.
• Powerful close-coupled, maintenance-free motor with permanently lubricated, sealed-for-life bearings.
• Durable carbon/silicon-carbide mechanical seal and rugged 1/2 inch Stainless Steel Shaft for extended operational life.

Product Highlights

Efficient cast iron circulator pump for hydronic heating and cooling, featuring a maintenance-free motor and durable mechanical seal.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-2400-40-3P

Technical Specifications

• Material: Cast Iron
• Application: Heating
• Input Voltage: 115V
• Current: 1.9 A
• Maximum Pressure: 150 PSI
• Type: Pump
• Horsepower: 1/6 HP
• Connection Size: 1-1/2 Inch
• Maximum Flow Rate: 32 GPM
• Maximum Head: 19 Feet
• Frequency: 60 Hz
• Phase: 1 Phase
• Rotations Per Minute: 3450 RPM
• Operating Temperature Range: 40°F - 225°F
• Connection Type: Flanged x Flanged Threaded
