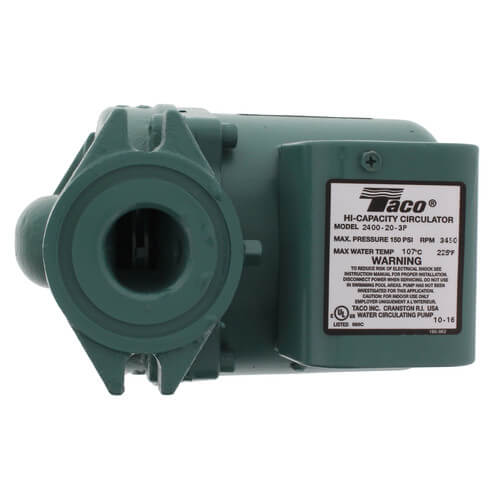

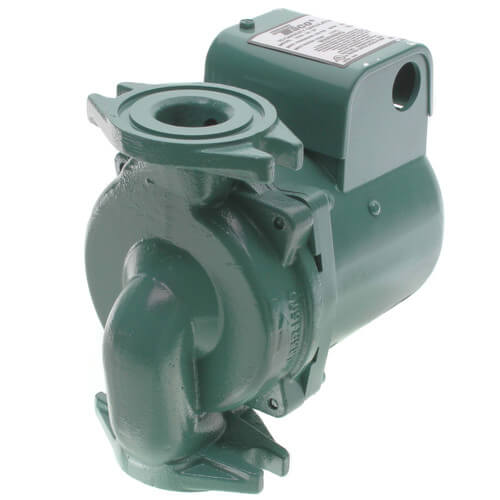

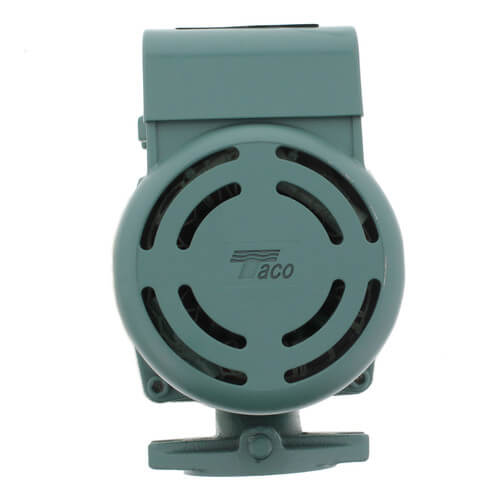

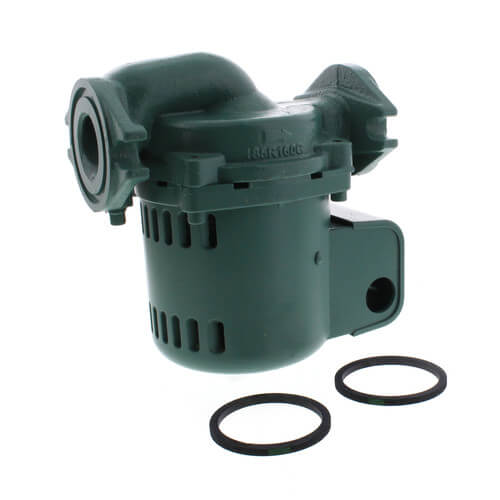

Taco Taco-2400-20-3P Cast Iron 2400 Series Circulator Pump 1/6 HP

Product Description

The TACO TACO-2400-20-3P is a Cast Iron 2400 Series Circulator Pump designed for hydronic heating, chilled water cooling, and hot water recirculation applications. This 1/6 HP pump operates at 115V, 1.9 Amps, and 3450 RPM, providing a maximum flow of 32 GPM and a maximum head of 29 feet. It features a close-coupled, maintenance-free motor and a carbon/silicon-carbide mechanical seal, suitable for larger residential and commercial hydronic systems.

• Compact, space-saving design for versatile installation.
• Features a close-coupled, maintenance-free motor with permanently lubricated, sealed-for-life bearings.
• Equipped with a durable carbon/silicon-carbide mechanical seal for extended operational life.

Product Highlights

This circulator pump is engineered for efficient operation in medium to high flow/head hydronic systems, offering reliable performance for heating and cooling.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-2400-20-3P

Technical Specifications

• Material: Cast Iron
• Application: Heating
• Input Voltage: 115V
• Amperage: 1.9
• Maximum Pressure: 150 PSI
• Type: Pump
• Horsepower: 1/6 HP
• Connection Size: 1-1/2", 1-1/4", 1", 3/4"
• Maximum Flow Rate: 32 GPM
• Maximum Head: 29 Ft
• Frequency: 60 Hertz
• Phase: 1
• RPM: 3450
• Temperature Range: 40°F - 225°F
• Connection Type: Flanged x Flanged, Threaded
