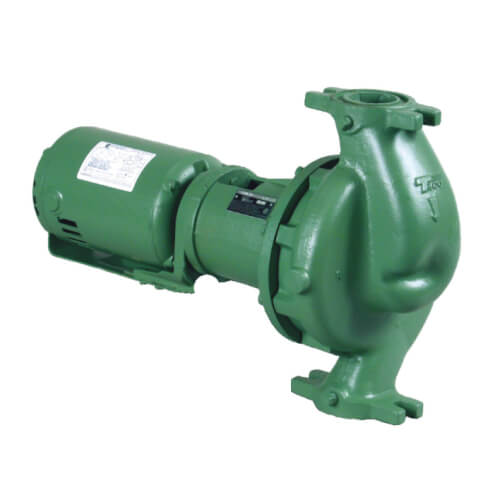

Taco Taco-1610E3E80131143 1610 cast iron commercial circulator pump 1/3 hp 1-1/2 inch

Product Description

The TACO TACO-1610E3E80131143 1600 Series In-Line Pump is a cast iron commercial circulator pump. This 1/3 HP unit is engineered for heating, air conditioning, pressure boosting, cooling water transfer, and water supply applications. Operating at 1750 RPM, it delivers a max flow of 70 GPM and a max head of 23 feet. It features a 1-1/2 inch flanged connection, handling up to 175 PSI and 250°F, ensuring reliable fluid circulation.

• Rugged cast iron casing with a maximum operating pressure of 175 PSI and a maximum operating temperature of 250°F.
• Cartridge Assembly with permanently sealed, greased, lubricated ball bearings for extended bearing life.
• Cupro-Nickel Shaft Sleeve protects the shaft from system fluid contact, preventing corrosion.

Product Highlights

This in-line pump offers reliability and ease of maintenance with its replaceable, permanently-lubricated bearing cartridge and robust design for various water circulation needs.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TACO-1610E3E80131143

Technical Specifications

• Material: Cast Iron
• Application: Heating
• Max Flow Rate: 70 GPM
• Flow Rate Range: 0-70 GPM
• Max Head: 23 Ft
• Head Range: 0-23 Ft
• RPM: 1750
• Horsepower: 1/3
• Connection Size: 1-1/2"
• Max Pressure: 175 PSI
• Frequency: 60 Hz
• Phase: 1
• Input Voltage: 115V
• Connection Type: Flanged x Flanged
• Product Type: Pump
• Max Operating Temperature: 250°F
