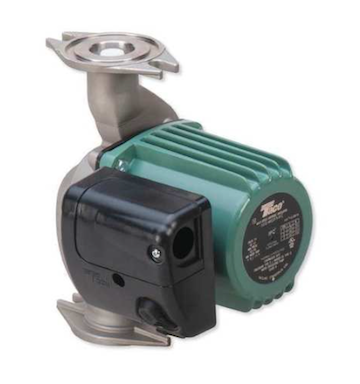

Taco TAC-0013-MSSF2-IFC Stainless Steel 3 Speed Circulator W/ Std Flange

Product Description

The TACO TAC-0013-MSSF2-IFC is a stainless steel 3-speed circulator with a standard flange and IFC, operating at 115V. Designed for hydronic heating systems, it offers 3-speed switching for fine-tuning control. It features a removable, uni-body Integral Flow Check (IFC) that prevents gravity flow and improves pump performance.

• Heavy-duty 3-speed switch.
• High starting torque.
• Available in Stainless Steel for potable water systems.

Product Highlights

The 0013 3-Speed pump is designed for high flow/high head requirements. It is a direct replacement for the Grundfos UPS 26-99 3-Speed.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: TAC-0013-MSSF2-IFC

Technical Specifications

• Brand: Taco
• Model: 0013-MSSF2-IFC
• Material: Stainless Steel
• Max Pressure (PSI): 125 psi
• Horse Power: 1/6 hp
• Connection Size: 3/4", 1", 1-1/4", 1-1/2"
• Flow Range (GPM): 0-30
• Max Flow: 30
• Head Range (FT): 0-30
• Max Head (FT): 30
• Phase: Single
• RPM: 3250
• Connection: Flanged-Rotated
• Speed: 3-Speed Switch
