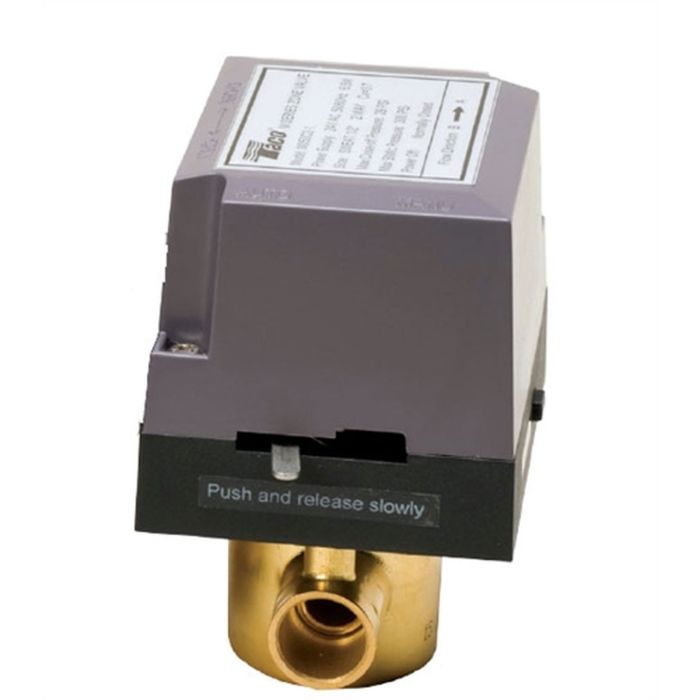

Taco M100C2-1 2-way Zone Valve 24VAC 1 inches Sweat

Product Description

The TACO M100C2-1 is a 1" sweat 2-way zone valve designed for on/off, normally closed control in closed hot or chilled water hydronic systems. Operating on 24VAC at 50/60 Hz with a power consumption of 6.5 Watts, this valve is suitable for applications including fan coils, radiators, convectors, and radiant systems. It handles fluid temperatures from 36 to 201 °F and a maximum static pressure of 250 PSI. The valve body is constructed from forged brass with EPDM seals.

• 2-Way design with sweat connection for easy installation.
• Operates on 24V AC, suitable for hydronic systems.
• Normally closed position ensures reliable control.

Product Highlights

Forged brass body, EPDM seals, 250 PSI max pressure, 36-201 °F fluid temperature range.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: M100C2-1

Technical Specifications

• Brand: Taco
• Manufacturer Part Number: M100C2-1
• Size: 1 inch
• Fluid Temperature Range: 36 - 201 °F
• Maximum Static Pressure: 250 PSI
• Input Voltage: 24VAC
• Frequency: 50/60 Hz
• Power Consumption: 6.5 Watts
• Body Material: Forged Brass
• Seal Material: EPDM
• Chassis and Cover Material: Fire-retardant ABS Engineered Plastic
• Working Media: Chilled Water / Hot Water / up to 50% Glycol
• Operation Timing: Motor - fully open in approximately 15 sec; Spring - 5 sec. to 15 sec. after power off
• Operating Ambient Temperature: 32 - 140 °F
• Storage Temperature: 4 - 149 °F Max. Rh, no condensation
• Body Pattern: 2-Way
• Connection Type: Sweat
• Flow Capacity (Cv): 8
• End Switch: Yes
• Position: Normally Closed
